Front Suspension Spring and Damper Assembly of Aston Martin Aston Martin Cygnet

View All

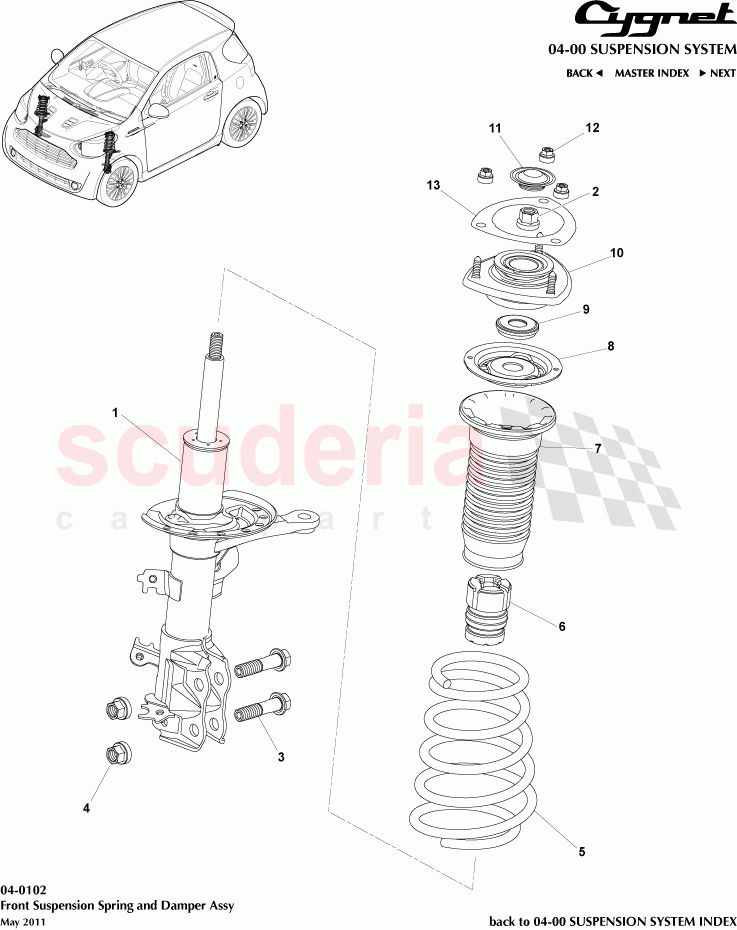

Aston Martin Cygnet - Front Suspension Spring and Damper Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4852074042	Shock Absorber Assy Front LHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017814019	Nut, Front Support to Front Shock Absorber	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9010915004	Bolt,Steering Knuckle, OD=12.4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017915006	Nut, Steering Knuckle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4813174040	Spring, Front Coil	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4833174010	Bumper, Front Spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4815752030	Insulator, Front Coil Spring Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4847174010	Seat, Front Coil Spring, Upper	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4861974010	Bearing, Strut Mounting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4860974020	Support-Sub Assy, Front Suspension	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4868474010	Dust Cover, Front Suspension Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9017808010	Nut Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4868774010	Plate, Front Suspension Support	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	4851074042	Shock Absorber Assy Front RHS	4851074042 Shock Absorber Assy Front RHS	-	1	Enquire
-	9010915003	Bolt,Steering Knuckle, OD=13.3	9010915003 Bolt,Steering Knuckle, OD=13.3	-	2	Enquire
-	9010915002	Bolt,Steering Knuckle, OD=13.9	9010915002 Bolt,Steering Knuckle, OD=13.9	-	2	Enquire
-	9010915001	Bolt,Steering Knuckle, OD=15	9010915001 Bolt,Steering Knuckle, OD=15	-	2	Enquire
1	4852074042	Shock Absorber Assy Front LHS	4852074042 Shock Absorber Assy Front LHS	-	1	Enquire
2	9017814019	Nut, Front Support to Front Shock Absorber	9017814019 Nut, Front Support to Front Shock Absorber	-	1	Enquire
3	9010915004	Bolt,Steering Knuckle, OD=12.4	9010915004 Bolt,Steering Knuckle, OD=12.4	-	2	Enquire
4	9017915006	Nut, Steering Knuckle	9017915006 Nut, Steering Knuckle	-	2	Enquire
5	4813174040	Spring, Front Coil	4813174040 Spring, Front Coil	-	1	Enquire
6	4833174010	Bumper, Front Spring	4833174010 Bumper, Front Spring	-	1	Enquire
7	4815752030	Insulator, Front Coil Spring Upper	4815752030 Insulator, Front Coil Spring Upper	-	1	Enquire
8	4847174010	Seat, Front Coil Spring, Upper	4847174010 Seat, Front Coil Spring, Upper	-	1	Enquire
9	4861974010	Bearing, Strut Mounting	4861974010 Bearing, Strut Mounting	-	1	Enquire
10	4860974020	Support-Sub Assy, Front Suspension	4860974020 Support-Sub Assy, Front Suspension	-	1	Enquire
11	4868474010	Dust Cover, Front Suspension Support	4868474010 Dust Cover, Front Suspension Support	-	1	Enquire
12	9017808010	Nut Flange	9017808010 Nut Flange	-	3	Enquire
13	4868774010	Plate, Front Suspension Support	4868774010 Plate, Front Suspension Support	-	1	Enquire
