Front Seat, Drivers of Aston Martin Aston Martin Cygnet

View All

Aston Martin Cygnet - Front Seat, Drivers

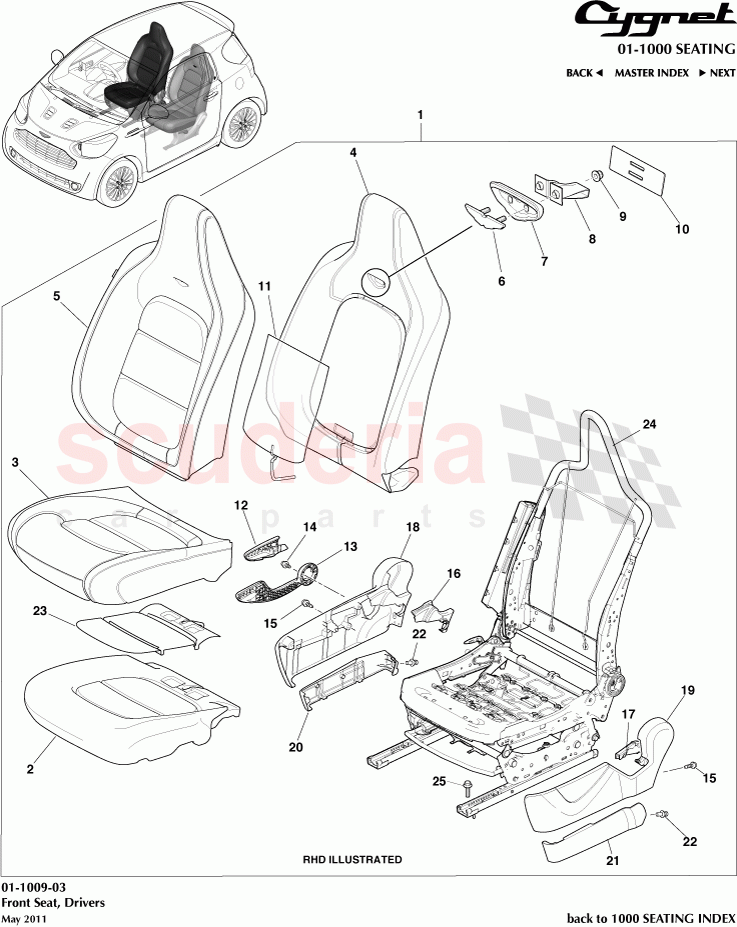

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY2Y60009BBW	Seat Assy, Front Driver, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y9516AC	Foam Assy, Front Seat Cushion, Driver, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y62900ABW	Cover Assy, Front Seat Cushion, Driver, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y4D9513AD	Foam Assy, Front Seat Squab, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y64573AAW	Cover Assy, Front Seat Squab, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y001B46CD	WING BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y8972AA	Moulding, Badge Retention, Front Seat Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y19H321AA	Elastic Strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703165	NUT M5 HEX FLG PLAS CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y407A78AA	Backing Plate, Wing Badge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8753074040	Heater Assembly, Driver Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7252547010C0	Handle, Reclining Adjuster Release, Driver, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7249474010C0	Handle, Vertical Adjusting, Driver, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9326955010	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7247674010	Screw, Front Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7187574010C0	Cover, Reclining Adjuster Inside, RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7187674010C0	Cover, Reclining Adjuster Inside, LH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y63031AAW	Valance, Front Seat, Outer, Upper, RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y63032AAW	Valance, Front Seat, Inner, Upper, RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7187374010C0	Valance, Front Seat, Outer, Lower, RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7187474020C0	Valance, Front Seat, Inner, Lower, RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	904670908722	Clip, Front Seat Side Shield	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8751074040	Heater Assy, Cushion, 6 Way, RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7201074032	Adjuster Assy, Front Seat, RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7270252030	Bolt, Seat	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY2Y60009ABW	Seat Assy, Front Driver, LHD	AY2Y60009ABW Seat Assy, Front Driver, LHD	-	1	Enquire
-	AY2Y9515AC	Foam Assy, Front Seat Cushion, Driver, RHD	AY2Y9515AC Foam Assy, Front Seat Cushion, Driver, RHD	-	1	Enquire
-	AY2Y62901ABW	Cover Assy, Front Seat Cushion, Driver, LHD	AY2Y62901ABW Cover Assy, Front Seat Cushion, Driver, LHD	-	1	Enquire
-	AY2Y4D9514AD	Foam Assy, Front Seat Squab, RH	AY2Y4D9514AD Foam Assy, Front Seat Squab, RH	-	1	Enquire
-	AY2Y64572ABW	Cover Assy, Front Seat Squab, RH	AY2Y64572ABW Cover Assy, Front Seat Squab, RH	-	1	Enquire
-	AY2Y001B46CD	WING BADGE	AY2Y001B46CD WING BADGE	-	1	Enquire
-	7252647010C0	Handle, Reclining Adjuster Release, Driver, LHD	7252647010C0 Handle, Reclining Adjuster Release, Driver, LHD	-	1	Enquire
-	7249574010C0	Handle, Vertical Adjusting, Driver, LHD	7249574010C0 Handle, Vertical Adjusting, Driver, LHD	-	1	Enquire
-	7187674020C0	Cover, Reclining Adjuster Inside, LH, LHD	7187674020C0 Cover, Reclining Adjuster Inside, LH, LHD	-	1	Enquire
-	7187574020C0	Cover, Reclining Adjuster Inside, RH, LHD	7187574020C0 Cover, Reclining Adjuster Inside, RH, LHD	-	1	Enquire
-	AY2Y63031BAW	Valance, Front Seat, Outer, Upper, LH, LHD	AY2Y63031BAW Valance, Front Seat, Outer, Upper, LH, LHD	-	1	Enquire
-	AY2Y63032BAW	Valance, Front Seat, Inner, Upper, LH, LHD	AY2Y63032BAW Valance, Front Seat, Inner, Upper, LH, LHD	-	1	Enquire
-	7187474010C0	Valance, Front Seat, Outer, Lower, LH, LHD	7187474010C0 Valance, Front Seat, Outer, Lower, LH, LHD	-	1	Enquire
-	7187374020C0	Valance, Front Seat, Inner, Lower, LH, LHD	7187374020C0 Valance, Front Seat, Inner, Lower, LH, LHD	-	1	Enquire
-	8751074060	Heater Assy, Cushion, 6 Way, LH, LHD	8751074060 Heater Assy, Cushion, 6 Way, LH, LHD	-	1	Enquire
-	7202074031	Adjuster Assy, Front Seat, LH, LHD	7202074031 Adjuster Assy, Front Seat, LH, LHD	-	1	Enquire
1	AY2Y60009BBW	Seat Assy, Front Driver, RHD	AY2Y60009BBW Seat Assy, Front Driver, RHD	-	1	Enquire
2	AY2Y9516AC	Foam Assy, Front Seat Cushion, Driver, LHD	AY2Y9516AC Foam Assy, Front Seat Cushion, Driver, LHD	-	1	Enquire
3	AY2Y62900ABW	Cover Assy, Front Seat Cushion, Driver, RHD	AY2Y62900ABW Cover Assy, Front Seat Cushion, Driver, RHD	-	1	Enquire
4	AY2Y4D9513AD	Foam Assy, Front Seat Squab, LH	AY2Y4D9513AD Foam Assy, Front Seat Squab, LH	-	1	Enquire
5	AY2Y64573AAW	Cover Assy, Front Seat Squab, LH	AY2Y64573AAW Cover Assy, Front Seat Squab, LH	-	1	Enquire
6	AY2Y001B46CD	WING BADGE	AY2Y001B46CD WING BADGE	-	1	Enquire
7	AY2Y8972AA	Moulding, Badge Retention, Front Seat Squab	AY2Y8972AA Moulding, Badge Retention, Front Seat Squab	-	1	Enquire
8	AY2Y19H321AA	Elastic Strap	AY2Y19H321AA Elastic Strap	-	1	Enquire
9	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	2	Enquire
10	AY2Y407A78AA	Backing Plate, Wing Badge	AY2Y407A78AA Backing Plate, Wing Badge	-	1	Enquire
11	8753074040	Heater Assembly, Driver Squab	8753074040 Heater Assembly, Driver Squab	-	1	Enquire
12	7252547010C0	Handle, Reclining Adjuster Release, Driver, RHD	7252547010C0 Handle, Reclining Adjuster Release, Driver, RHD	-	1	Enquire
13	7249474010C0	Handle, Vertical Adjusting, Driver, RHD	7249474010C0 Handle, Vertical Adjusting, Driver, RHD	-	1	Enquire
14	9326955010	Screw	9326955010 Screw	-	1	Enquire
15	7247674010	Screw, Front Seat	7247674010 Screw, Front Seat	-	3	Enquire
16	7187574010C0	Cover, Reclining Adjuster Inside, RH, RHD	7187574010C0 Cover, Reclining Adjuster Inside, RH, RHD	-	3	Enquire
17	7187674010C0	Cover, Reclining Adjuster Inside, LH, RHD	7187674010C0 Cover, Reclining Adjuster Inside, LH, RHD	-	1	Enquire
18	AY2Y63031AAW	Valance, Front Seat, Outer, Upper, RH, RHD	AY2Y63031AAW Valance, Front Seat, Outer, Upper, RH, RHD	-	1	Enquire
19	AY2Y63032AAW	Valance, Front Seat, Inner, Upper, RH, RHD	AY2Y63032AAW Valance, Front Seat, Inner, Upper, RH, RHD	-	1	Enquire
20	7187374010C0	Valance, Front Seat, Outer, Lower, RH, RHD	7187374010C0 Valance, Front Seat, Outer, Lower, RH, RHD	-	1	Enquire
21	7187474020C0	Valance, Front Seat, Inner, Lower, RH, RHD	7187474020C0 Valance, Front Seat, Inner, Lower, RH, RHD	-	1	Enquire
22	904670908722	Clip, Front Seat Side Shield	904670908722 Clip, Front Seat Side Shield	-	2	Enquire
23	8751074040	Heater Assy, Cushion, 6 Way, RH, RHD	8751074040 Heater Assy, Cushion, 6 Way, RH, RHD	-	1	Enquire
24	7201074032	Adjuster Assy, Front Seat, RH, RHD	7201074032 Adjuster Assy, Front Seat, RH, RHD	-	1	Enquire
25	7270252030	Bolt, Seat	7270252030 Bolt, Seat	-	4	Enquire
