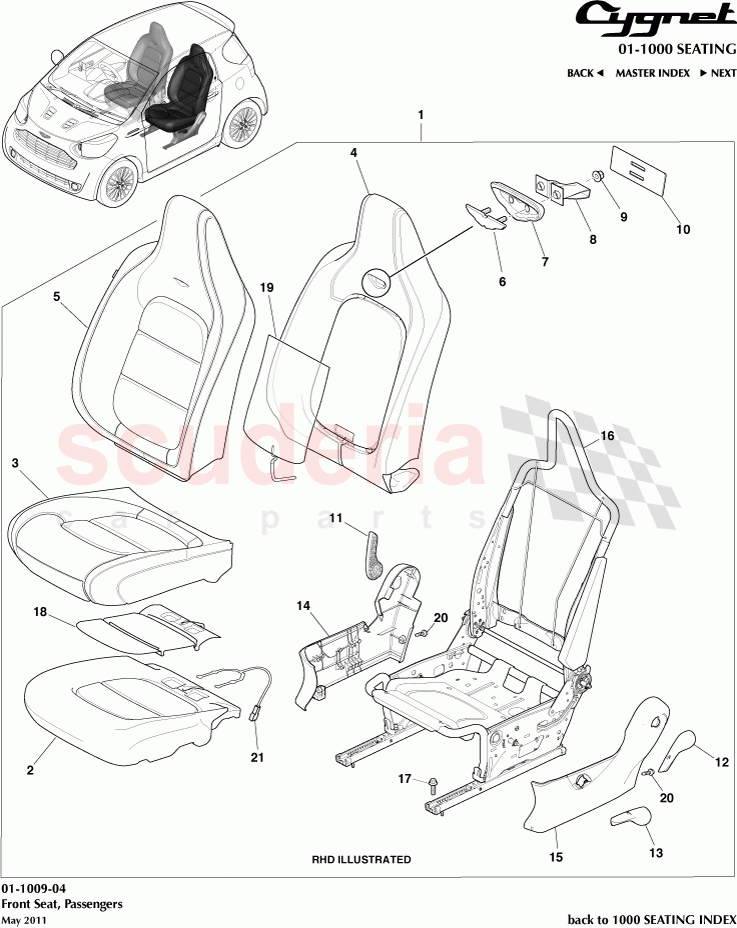

Aston Martin Cygnet - Front Seat, Passengers

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY2Y60008ABW	Seat Assy, Front Passenger, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y9516BD	Foam Assy, Front Seat Cushion, Passenger, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y62901BBW	Cover Assy, Front Seat Cushion, Passenger, LHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y4D9513AD	Foam Assy, Front Seat Squab, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y64573ABW	Cover Assy, Front Seat Squab, LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y001B46CD	WING BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y8972AA	Moulding, Badge Retention, Front Seat Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y19H321AA	Elastic Strap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	703165	NUT M5 HEX FLG PLAS CHROME FREE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y407A78AA	Backing Plate, Wing Badge	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7252674010C0	Handle, Reclining Adjuster Release, Inner, Passenger, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7250774020C0	Handle, Reclining Adjuster Release, Outer, Passenger, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7224674010C0	Lever, Seat Track Lock Open, Passenger, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y63034AAW	Valance, Outer, Passenger, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y63030AAW	Valance, Outer, Passenger, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7202074020	Adjuster Assy, Front Seat, LH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7270252030	Bolt, Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8751074020	Heater Assy, Cushion, 4 Way	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8753074020	Heater Assembly, Passenger Squab	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7247674010	Screw, Front Seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8995322041	Sensor, Seatbelt Warning	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY2Y60008AAW	Seat Assy, Front Passenger, LHD	AY2Y60008AAW Seat Assy, Front Passenger, LHD	-	1	Enquire
-	AY2Y9515AC	Foam Assy, Front Seat Cushion, Driver, RHD	AY2Y9515AC Foam Assy, Front Seat Cushion, Driver, RHD	-	1	Enquire
-	AY2Y62900BBW	Cover Assy, Front Seat Cushion, Passenger, RHD	AY2Y62900BBW Cover Assy, Front Seat Cushion, Passenger, RHD	-	1	Enquire
-	AY2Y4D9514AD	Foam Assy, Front Seat Squab, RH	AY2Y4D9514AD Foam Assy, Front Seat Squab, RH	-	1	Enquire
-	AY2Y64572AAW	Cover Assy, Front Seat Squab, RH	AY2Y64572AAW Cover Assy, Front Seat Squab, RH	-	1	Enquire
-	AY2Y001B46CD	WING BADGE	AY2Y001B46CD WING BADGE	-	1	Enquire
-	7252574010C0	Handle, Reclining Adjuster Release, Inner, Passenger, LHD	7252574010C0 Handle, Reclining Adjuster Release, Inner, Passenger, LHD	-	1	Enquire
-	7250774010C0	Handle, Reclining Adjuster Release, Outer, Passenger, LHD	7250774010C0 Handle, Reclining Adjuster Release, Outer, Passenger, LHD	-	1	Enquire
-	7254574020C0	Lever, Seat Track Lock Open, Passenger, LHD	7254574020C0 Lever, Seat Track Lock Open, Passenger, LHD	-	1	Enquire
-	AY2Y63034BAW	Valance, Outer, Passenger, LHD	AY2Y63034BAW Valance, Outer, Passenger, LHD	-	1	Enquire
-	AY2Y63030BAW	Valance, Outer, Passenger, LHD	AY2Y63030BAW Valance, Outer, Passenger, LHD	-	1	Enquire
-	7201074020	Adjuster Assy, Front Seat, RH, LHD	7201074020 Adjuster Assy, Front Seat, RH, LHD	-	1	Enquire
1	AY2Y60008ABW	Seat Assy, Front Passenger, RHD	AY2Y60008ABW Seat Assy, Front Passenger, RHD	-	1	Enquire
2	AY2Y9516BD	Foam Assy, Front Seat Cushion, Passenger, LHD	AY2Y9516BD Foam Assy, Front Seat Cushion, Passenger, LHD	-	1	Enquire
3	AY2Y62901BBW	Cover Assy, Front Seat Cushion, Passenger, LHD	AY2Y62901BBW Cover Assy, Front Seat Cushion, Passenger, LHD	-	1	Enquire
4	AY2Y4D9513AD	Foam Assy, Front Seat Squab, LH	AY2Y4D9513AD Foam Assy, Front Seat Squab, LH	-	1	Enquire
5	AY2Y64573ABW	Cover Assy, Front Seat Squab, LH	AY2Y64573ABW Cover Assy, Front Seat Squab, LH	-	1	Enquire
6	AY2Y001B46CD	WING BADGE	AY2Y001B46CD WING BADGE	-	1	Enquire
7	AY2Y8972AA	Moulding, Badge Retention, Front Seat Squab	AY2Y8972AA Moulding, Badge Retention, Front Seat Squab	-	1	Enquire
8	AY2Y19H321AA	Elastic Strap	AY2Y19H321AA Elastic Strap	-	1	Enquire
9	703165	NUT M5 HEX FLG PLAS CHROME FREE	703165 NUT M5 HEX FLG PLAS CHROME FREE	-	2	Enquire
10	AY2Y407A78AA	Backing Plate, Wing Badge	AY2Y407A78AA Backing Plate, Wing Badge	-	1	Enquire
11	7252674010C0	Handle, Reclining Adjuster Release, Inner, Passenger, RHD	7252674010C0 Handle, Reclining Adjuster Release, Inner, Passenger, RHD	-	1	Enquire
12	7250774020C0	Handle, Reclining Adjuster Release, Outer, Passenger, RHD	7250774020C0 Handle, Reclining Adjuster Release, Outer, Passenger, RHD	-	1	Enquire
13	7224674010C0	Lever, Seat Track Lock Open, Passenger, RHD	7224674010C0 Lever, Seat Track Lock Open, Passenger, RHD	-	1	Enquire
14	AY2Y63034AAW	Valance, Outer, Passenger, RHD	AY2Y63034AAW Valance, Outer, Passenger, RHD	-	1	Enquire
15	AY2Y63030AAW	Valance, Outer, Passenger, RHD	AY2Y63030AAW Valance, Outer, Passenger, RHD	-	1	Enquire
16	7202074020	Adjuster Assy, Front Seat, LH, RHD	7202074020 Adjuster Assy, Front Seat, LH, RHD	-	1	Enquire
17	7270252030	Bolt, Seat	7270252030 Bolt, Seat	-	4	Enquire
18	8751074020	Heater Assy, Cushion, 4 Way	8751074020 Heater Assy, Cushion, 4 Way	-	1	Enquire
19	8753074020	Heater Assembly, Passenger Squab	8753074020 Heater Assembly, Passenger Squab	-	1	Enquire
20	7247674010	Screw, Front Seat	7247674010 Screw, Front Seat	-	2	Enquire
21	8995322041	Sensor, Seatbelt Warning	8995322041 Sensor, Seatbelt Warning	-	2	Enquire
