Front Door Trim Assembly of Aston Martin Aston Martin Cygnet

View All

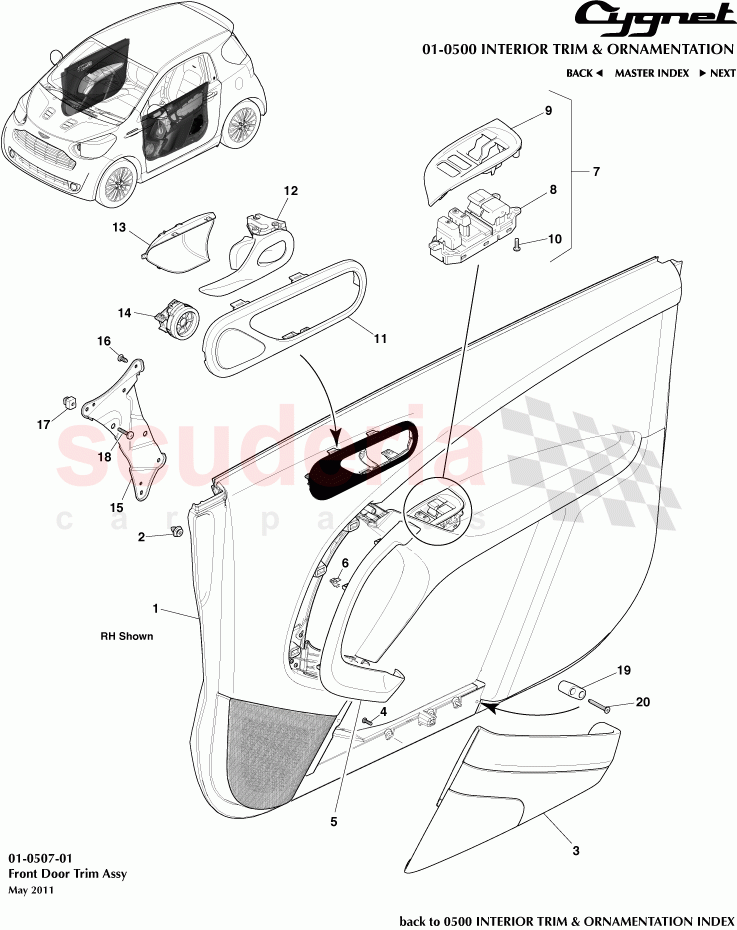

Aston Martin Cygnet - Front Door Trim Assembly

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AY2Y23942BAW	Trim Panel Assy, Door RH, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9046709206	Fixing, Push in	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y237A10ABW	Pocket Assy, Door RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702289	SCREW M4x16 THREAD FORMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y23882AB	Boomerang Assy, Door Insert RH, SATIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y18512AA	Fixing, Push in	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y14540AB	Switch and Bezel Assy, Window Lift Drivers RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8404074010	Master Switch Assy, Power Window Reg, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y9467BC	Bezel, Window Lift Drivers, RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	702289	SCREW M4x16 THREAD FORMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y226B40AC	Bezel Assy, Release Handle RH, Satin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y22690AB	Handle Assy, Door Release RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y23184AC	Cup, Door Release Handle RH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8616068010	Speaker Assy, Front No 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2Y238A38AA	Bracket, Armrest Interface, RHS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8537312020	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	9016460018	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2YE474000AA	Block, Flange Lower	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AY2YN604149AA	Screw, M5x40 pan head	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	AY2Y23943AAW	Trim Panel Assy, Door LH, RHD	AY2Y23943AAW Trim Panel Assy, Door LH, RHD	-	1	Enquire
-	AY2Y23942AAW	Trim Panel Assy, Door RH, LHD	AY2Y23942AAW Trim Panel Assy, Door RH, LHD	-	1	Enquire
-	AY2Y23943BAW	Trim Panel Assy, Door LH, LHD	AY2Y23943BAW Trim Panel Assy, Door LH, LHD	-	1	Enquire
-	AY2Y237A11ABW	Pocket Assy, Door LH	AY2Y237A11ABW Pocket Assy, Door LH	-	1	Enquire
-	AY2Y23882BB	Boomerang Assy, Door Insert RH, DARK CHROME	AY2Y23882BB Boomerang Assy, Door Insert RH, DARK CHROME	-	1	Enquire
-	AY2Y23882CB	Boomerang Assy, Door Insert RH, PAINTED	AY2Y23882CB Boomerang Assy, Door Insert RH, PAINTED	-	1	Enquire
-	AY2Y23883AB	Boomerang Assy, Door Insert LH, SATIN	AY2Y23883AB Boomerang Assy, Door Insert LH, SATIN	-	1	Enquire
-	AY2Y23883BB	Boomerang Assy, Door Insert LH, DARK CHROME	AY2Y23883BB Boomerang Assy, Door Insert LH, DARK CHROME	-	1	Enquire
-	AY2Y23883CB	Boomerang Assy, Door Insert LH, PAINTED	AY2Y23883CB Boomerang Assy, Door Insert LH, PAINTED	-	1	Enquire
-	AY2Y14717AB	Switch and Bezel Assy, Window Lift Passengers RHD	AY2Y14717AB Switch and Bezel Assy, Window Lift Passengers RHD	-	1	Enquire
-	AY2Y14540BB	Switch and Bezel Assy, Window Lift Drivers LHD	AY2Y14540BB Switch and Bezel Assy, Window Lift Drivers LHD	-	1	Enquire
-	AY2Y14717BB	Switch and Bezel Assy, Window Lift Passengers LHD	AY2Y14717BB Switch and Bezel Assy, Window Lift Passengers LHD	-	1	Enquire
-	8404074020	Master Switch Assy, Power Window Reg, LHD	8404074020 Master Switch Assy, Power Window Reg, LHD	-	1	Enquire
-	8481042010	Switch, Window Lift Passenger	8481042010 Switch, Window Lift Passenger	-	1	Enquire
-	AY2Y9467DC	Bezel, Window Lift Passenger, RHD	AY2Y9467DC Bezel, Window Lift Passenger, RHD	-	1	Enquire
-	AY2Y9467AC	Bezel, Window Lift Drivers, LHD	AY2Y9467AC Bezel, Window Lift Drivers, LHD	-	1	Enquire
-	AY2Y9467CC	Bezel, Window Lift Passenger, LHD	AY2Y9467CC Bezel, Window Lift Passenger, LHD	-	1	Enquire
-	AY2Y226B40BC	Bezel Assy, Release Handle RH, Dark Chrome	AY2Y226B40BC Bezel Assy, Release Handle RH, Dark Chrome	-	1	Enquire
-	AY2Y226B40DA	Bezel Assy, Release Handle RH, Piano Black	AY2Y226B40DA Bezel Assy, Release Handle RH, Piano Black	-	1	Enquire
-	AY2Y226B40EA	Bezel Assy, Release Handle RH, Iridium	AY2Y226B40EA Bezel Assy, Release Handle RH, Iridium	-	1	Enquire
-	AY2Y226B41AC	Bezel Assy, Release Handle LH, Satin	AY2Y226B41AC Bezel Assy, Release Handle LH, Satin	-	1	Enquire
-	AY2Y226B41BC	Bezel Assy, Release Handle LH, Dark Chrome	AY2Y226B41BC Bezel Assy, Release Handle LH, Dark Chrome	-	1	Enquire
-	AY2Y226B41DA	Bezel Assy, Release Handle LH, Piano Black	AY2Y226B41DA Bezel Assy, Release Handle LH, Piano Black	-	1	Enquire
-	AY2Y226B41EA	Bezel Assy, Release Handle LH, Iridium	AY2Y226B41EA Bezel Assy, Release Handle LH, Iridium	-	1	Enquire
-	AY2Y22691AB	Handle Assy, Door Release LH	AY2Y22691AB Handle Assy, Door Release LH	-	1	Enquire
-	AY2Y23185AC	Cup, Door Release Handle LH	AY2Y23185AC Cup, Door Release Handle LH	-	1	Enquire
-	AY2Y238A38AA	Bracket, Armrest Interface, RHS	AY2Y238A38AA Bracket, Armrest Interface, RHS	-	1	Enquire
1	AY2Y23942BAW	Trim Panel Assy, Door RH, RHD	AY2Y23942BAW Trim Panel Assy, Door RH, RHD	-	1	Enquire
2	9046709206	Fixing, Push in	9046709206 Fixing, Push in	-	10	Enquire
3	AY2Y237A10ABW	Pocket Assy, Door RH	AY2Y237A10ABW Pocket Assy, Door RH	-	1	Enquire
4	702289	SCREW M4x16 THREAD FORMING	702289 SCREW M4x16 THREAD FORMING 7 per side	-	14	Enquire
5	AY2Y23882AB	Boomerang Assy, Door Insert RH, SATIN	AY2Y23882AB Boomerang Assy, Door Insert RH, SATIN	-	1	Enquire
6	AY2Y18512AA	Fixing, Push in	AY2Y18512AA Fixing, Push in 4 per side	-	8	Enquire
7	AY2Y14540AB	Switch and Bezel Assy, Window Lift Drivers RHD	AY2Y14540AB Switch and Bezel Assy, Window Lift Drivers RHD	-	1	Enquire
8	8404074010	Master Switch Assy, Power Window Reg, RHD	8404074010 Master Switch Assy, Power Window Reg, RHD	-	1	Enquire
9	AY2Y9467BC	Bezel, Window Lift Drivers, RHD	AY2Y9467BC Bezel, Window Lift Drivers, RHD	-	1	Enquire
10	702289	SCREW M4x16 THREAD FORMING	702289 SCREW M4x16 THREAD FORMING	-	3	Enquire
11	AY2Y226B40AC	Bezel Assy, Release Handle RH, Satin	AY2Y226B40AC Bezel Assy, Release Handle RH, Satin	-	1	Enquire
12	AY2Y22690AB	Handle Assy, Door Release RH	AY2Y22690AB Handle Assy, Door Release RH	-	1	Enquire
13	AY2Y23184AC	Cup, Door Release Handle RH	AY2Y23184AC Cup, Door Release Handle RH	-	1	Enquire
14	8616068010	Speaker Assy, Front No 2	8616068010 Speaker Assy, Front No 2	-	2	Enquire
15	AY2Y238A38AA	Bracket, Armrest Interface, RHS	AY2Y238A38AA Bracket, Armrest Interface, RHS	-	1	Enquire
16	6G3351756AAPK	Screw M5 x 13 Pan Head Pack (10)	6G3351756AAPK Screw M5 x 13 Pan Head Pack (10) 5 Per Door	-	10	Enquire
17	8537312020	Grommet	8537312020 Grommet 2 Per Door	-	4	Enquire
18	9016460018	Screw	9016460018 Screw 2 Per Door	-	4	Enquire
19	AY2YE474000AA	Block, Flange Lower	AY2YE474000AA Block, Flange Lower	-	1	Enquire
20	AY2YN604149AA	Screw, M5x40 pan head	AY2YN604149AA Screw, M5x40 pan head	-	2	Enquire
