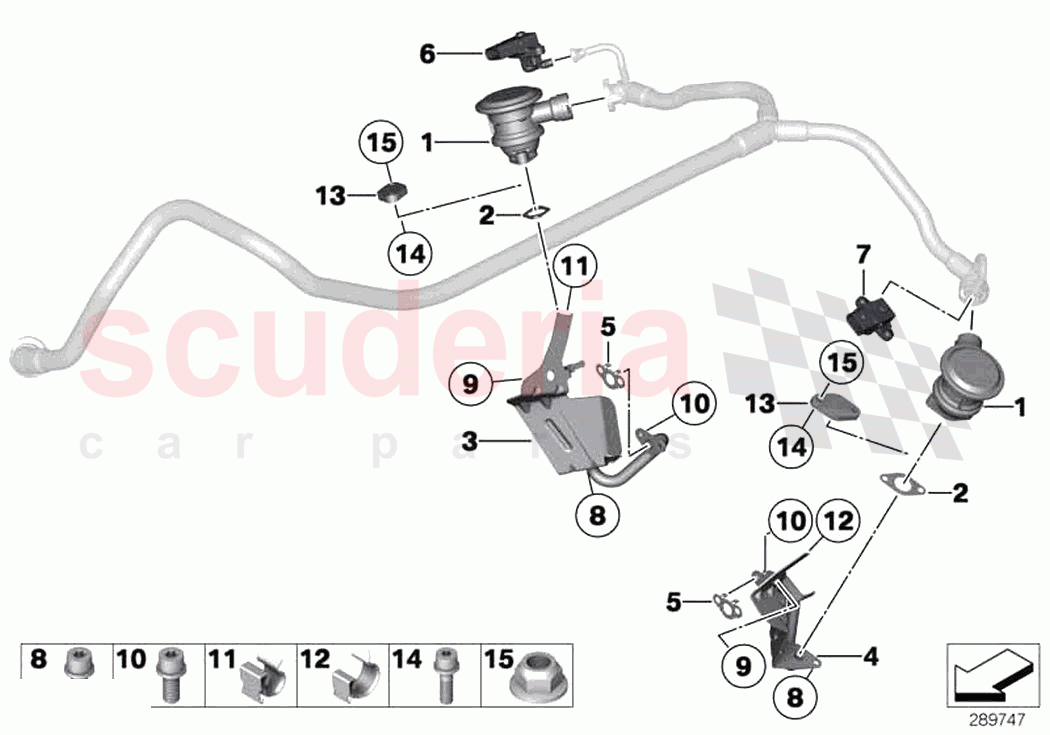

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11727514860	Gasket Steel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11727577781	Air intake tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11727577782	Air intake tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11727584665	Gasket Steel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904819	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905423	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12527578321	Fixing clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11787548951	Cable clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11121438086	Cover lid	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129903979	Torx screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905949	Hex nut with plate	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	11727514860	Gasket Steel	11727514860 Gasket Steel	-	2	Enquire
3	11727577781	Air intake tube	11727577781 Air intake tube ZYL. 1-6	-	1	Enquire
4	11727577782	Air intake tube	11727577782 Air intake tube ZYL. 7-12	-	1	Enquire
5	11727584665	Gasket Steel	11727584665 Gasket Steel	-	2	Enquire
8	7129904819	Torx-bolt with washer	7129904819 Torx-bolt with washer M6X16-8.8-ZNNIV	-	4	Enquire
10	7129905423	Torx-bolt with washer	7129905423 Torx-bolt with washer M8X20 ZNNIV SI	-	4	Enquire
11	12527578321	Fixing clamp	12527578321 Fixing clamp D=12-14/B=5	-	1	Enquire
12	11787548951	Cable clamp	11787548951 Cable clamp D=19-24/B=5	-	1	Enquire
13	11121438086	Cover lid	11121438086 Cover lid	-	2	Enquire
14	7129903979	Torx screw	7129903979 Torx screw M6X20-U1-8.8	-	4	Enquire
15	7119905949	Hex nut with plate	7119905949 Hex nut with plate M6-8-ZNNIV SI	-	4	Enquire
