Cylinder head cover of Rolls Royce Rolls Royce Wraith RR5(2017-2023)

View All

Rolls Royce Wraith RR5(2017-2023) - Cylinder head cover

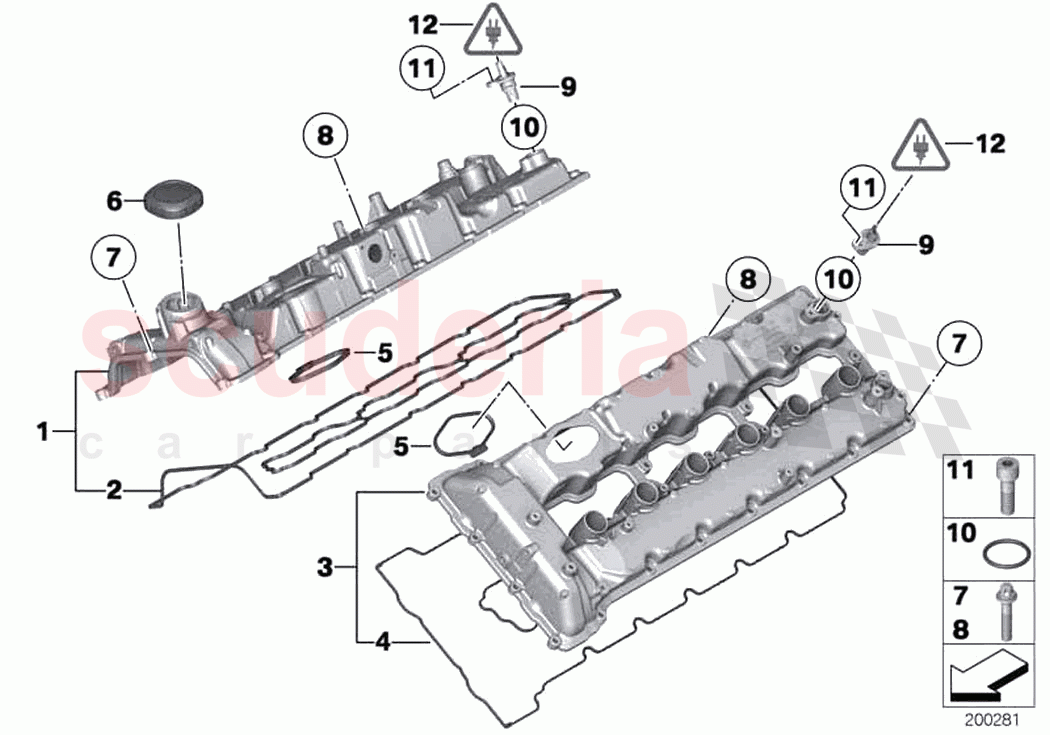

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11127587738	Cylinder head cover	Enquire	To Order
	11129453755	Cylinder head cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11128621955	Profile seal, cylinder head cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11127587742	Cylinder head cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11128621958	Profile seal, cylinder head cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11128636401	Profile-gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11127599009	Sealing cap, oil filler neck	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907367	ASA-Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905521	ASA-Bolt	Enquire	To Order
	7119904525	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13627525014	Camshaft sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12141748398	O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13627545338	Fillister head screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	11158652292	Vent pipe	11158652292 Vent pipe ZYL 1-6	-	1	Enquire
-	11158652297	Vent pipe	11158652297 Vent pipe ZYL 7-12	-	1	Enquire
-	11158654628	Connecting line	11158654628 Connecting line	-	1	Enquire
-	11158661696	Crank case vent valve	11158661696 Crank case vent valve ZYL. 1-6	-	1	Enquire
-	11158661697	Crank case vent valve	11158661697 Crank case vent valve ZYL. 7-12	-	1	Enquire
-	11158692194	Crank case vent valve	11158692194 Crank case vent valve ZYL. 1-6; from 08.2018	-	1	Enquire
-	11158692195	Crank case vent valve	11158692195 Crank case vent valve ZYL. 7-12; from 08.2018	-	1	Enquire
-	11129453758	Cylinder head cover	11129453758 Cylinder head cover ZYL. 7-12; from 08.2018	-	1	Enquire
1	11127587738	Cylinder head cover	11127587738 Cylinder head cover ZYL. 1-6	-	1	Enquire
1	11129453755	Cylinder head cover	11129453755 Cylinder head cover ZYL. 1-6; from 08.2018	-	1	Enquire
2	11128621955	Profile seal, cylinder head cover	11128621955 Profile seal, cylinder head cover ZYL. 1-6	-	1	Enquire
3	11127587742	Cylinder head cover	11127587742 Cylinder head cover ZYL. 7-12	-	1	Enquire
4	11128621958	Profile seal, cylinder head cover	11128621958 Profile seal, cylinder head cover ZYL. 7-12	-	1	Enquire
5	11128636401	Profile-gasket	11128636401 Profile-gasket	-	2	Enquire
6	11127599009	Sealing cap, oil filler neck	11127599009 Sealing cap, oil filler neck	-	1	Enquire
7	7129907367	ASA-Bolt	7129907367 ASA-Bolt M6X30-U1	-	48	Enquire
8	7129905521	ASA-Bolt	7129905521 ASA-Bolt M6X40-U1-8.8	-	2	Enquire
8	7119904525	Hex Bolt with washer	7119904525 Hex Bolt with washer M6X40 ZNNIV SI	-	2	Enquire
9	13627525014	Camshaft sensor	13627525014 Camshaft sensor	-	4	Enquire
10	12141748398	O-ring	12141748398 O-ring 17X3	-	4	Enquire
11	13627545338	Fillister head screw	13627545338 Fillister head screw M6X16ZNNIV SI	-	4	Enquire
