Radiator grill / radiator figure of Rolls Royce Rolls Royce Phantom Extended Wheelbase

View All

Rolls Royce Phantom Extended Wheelbase - Radiator grill / radiator figure

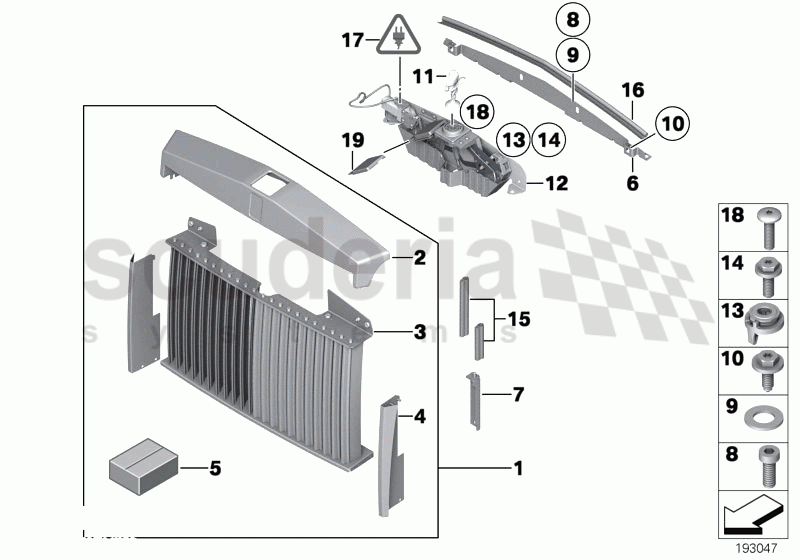

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51137162951	Radiator grille	Enquire	To Order
	51429150383	Radiator grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137246427	Radiator grille, upper section	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137246428	Radiator grille, inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137246429	LATERAL TRIM PANEL LEFT	Enquire	To Order
	51137246430	LATERAL TRIM PANEL RIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137227833	Set of retaining elements	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137124764	Bracket, radiator grill, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41337060037	Bracket, radiator grill, bottom left	Enquire	To Order
	51137060038	Bracket, radiator grill, bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72118115516	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119903078	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41617068713	Hexagon screw/washer assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137059876	Spirit of Ecstasy, radiator figure	Enquire	To Order
	51137184056	Spirit of Ecstasy, gold plated	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137141781	Retract mechanism, hood ornament	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137124766	Fastening elements with tolerance equ.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146954273	Torx-bolt with washer	Enquire	To Order
	7149112450	Hex Bolt with washer	Enquire	To Order
	41618208426	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51137125468	Seal, radiator grill rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51767125530	Seal, bracket-radiator grill, top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61138367076	Universal socket housing uncoded	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51130411846	Grub screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51130411845	Kit, covers for radiator mascot	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	61130007570	Round plug-in contact 2.5 ELA with cable	61130007570 Round plug-in contact 2.5 ELA with cable 0,75-1,0 MMÐ†	-	-	Enquire
-	61130007571	Round receptacle 2.5 ELA with cable	61130007571 Round receptacle 2.5 ELA with cable 1,0-2,5 MMÐ†	-	-	Enquire
1	51137162951	Radiator grille	51137162951 Radiator grille F1 CHROME	-	-	Enquire
1	51429150383	Radiator grille	51429150383 Radiator grille BLUE CHROME	-	-	Enquire
2	51137246427	Radiator grille, upper section	51137246427 Radiator grille, upper section	-	-	Enquire
3	51137246428	Radiator grille, inner	51137246428 Radiator grille, inner	-	-	Enquire
4	51137246429	LATERAL TRIM PANEL LEFT	51137246429 LATERAL TRIM PANEL LEFT	-	-	Enquire
4	51137246430	LATERAL TRIM PANEL RIGHT	51137246430 LATERAL TRIM PANEL RIGHT	-	-	Enquire
5	51137227833	Set of retaining elements	51137227833 Set of retaining elements	-	-	Enquire
6	51137124764	Bracket, radiator grill, top	51137124764 Bracket, radiator grill, top	-	-	Enquire
7	41337060037	Bracket, radiator grill, bottom left	41337060037 Bracket, radiator grill, bottom left	-	-	Enquire
7	51137060038	Bracket, radiator grill, bottom right	51137060038 Bracket, radiator grill, bottom right	-	-	Enquire
8	72118115516	Fillister head screw	72118115516 Fillister head screw TIBBE M8X25	-	-	Enquire
9	7119903078	Washer	7119903078 Washer S8 ZNS3	-	-	Enquire
10	41617068713	Hexagon screw/washer assembly	41617068713 Hexagon screw/washer assembly M8X16	-	-	Enquire
11	51137059876	Spirit of Ecstasy, radiator figure	51137059876 Spirit of Ecstasy, radiator figure	-	-	Enquire
11	51137184056	Spirit of Ecstasy, gold plated	51137184056 Spirit of Ecstasy, gold plated GOLD PLATED	-	-	Enquire
12	51137141781	Retract mechanism, hood ornament	51137141781 Retract mechanism, hood ornament STANDARD	-	-	Enquire
13	51137124766	Fastening elements with tolerance equ.	51137124766 Fastening elements with tolerance equ.	-	-	Enquire
14	7146954273	Torx-bolt with washer	7146954273 Torx-bolt with washer ISA M8X24MM	-	-	Enquire
14	7149112450	Hex Bolt with washer	7149112450 Hex Bolt with washer M8X24	-	-	Enquire
14	41618208426	Torx-bolt with washer	41618208426 Torx-bolt with washer ISA M8X24	-	-	Enquire
15	51137125468	Seal, radiator grill rear	51137125468 Seal, radiator grill rear	-	-	Enquire
16	51767125530	Seal, bracket-radiator grill, top	51767125530 Seal, bracket-radiator grill, top	-	-	Enquire
17	61138367076	Universal socket housing uncoded	61138367076 Universal socket housing uncoded 4 POL.	-	-	Enquire
18	51130411846	Grub screw	51130411846 Grub screw DIN 913 M3X10	-	-	Enquire
19	51130411845	Kit, covers for radiator mascot	51130411845 Kit, covers for radiator mascot F1 CHROME	-	-	Enquire
