Seat, front, rear panel I of Rolls Royce Rolls Royce Phantom Extended Wheelbase

View All

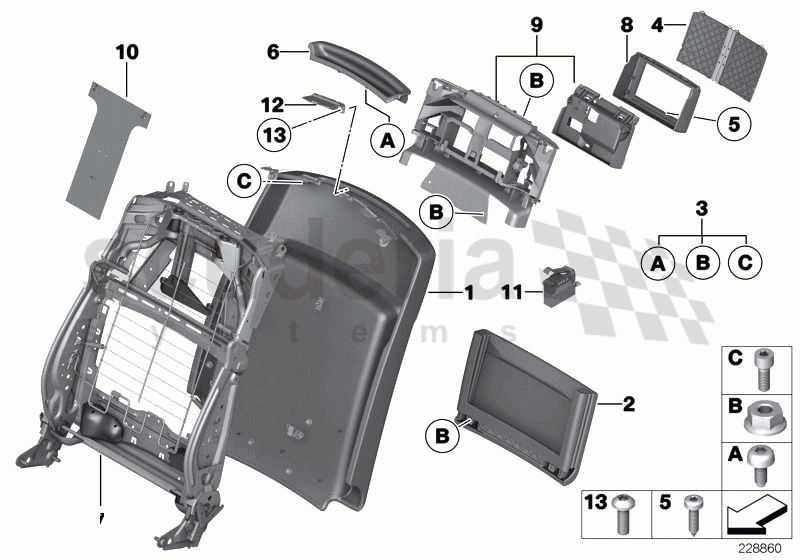

Rolls Royce Phantom Extended Wheelbase - Seat, front, rear panel I

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52107123553	Rear panel, seat, leather	Enquire	To Order
	52107123555	Rear panel, seat, leather	Enquire	To Order
	52109151001	REAR PANEL SEAT LEATHER LEFT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	52107123556	Map pocket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107123845	Fastening kit, front seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107123569	Cover, monitor screen	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146977946	Fillister head screw	Enquire	To Order
	65138375008	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107123571	Handle recess	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107124192	Chrome trim, monitor screen	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52100403120	Monitor holder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107057431	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61310302415	Microswitch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107259764	Holder, handle recess	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147135132	Fillister head screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7119904705	Hex nut	7119904705 Hex nut M6	-	-	Enquire
-	52109155231	Guide left	52109155231 Guide left	-	-	Enquire
-	52109155232	Guide right	52109155232 Guide right	-	-	Enquire
1	52107123553	Rear panel, seat, leather	52107123553 Rear panel, seat, leather QUOTE COLOUR	-	-	Enquire
1	52107123555	Rear panel, seat, leather	52107123555 Rear panel, seat, leather QUOTE COLOUR	-	-	Enquire
1	52109151001	REAR PANEL SEAT LEATHER LEFT	52109151001 REAR PANEL SEAT LEATHER LEFT QUOTE COLOUR	-	-	Enquire
1	52109151002	REAR PANEL SEAT LEATHER RIGHT	52109151002 REAR PANEL SEAT LEATHER RIGHT QUOTE COLOUR	-	-	Enquire
2	52107123556	Map pocket	52107123556 Map pocket QUOTE COLOUR	-	-	Enquire
3	52107123845	Fastening kit, front seat	52107123845 Fastening kit, front seat	-	-	Enquire
4	52107123569	Cover, monitor screen	52107123569 Cover, monitor screen QUOTE COLOUR	-	-	Enquire
5	7146977946	Fillister head screw	7146977946 Fillister head screw	-	-	Enquire
5	65138375008	Fillister head screw	65138375008 Fillister head screw	-	-	Enquire
6	52107123571	Handle recess	52107123571 Handle recess QUOTE COLOUR	-	-	Enquire
7	52107040079	backrest frame el. fa	52107040079 backrest frame el. fa	-	-	Enquire
7	52107270259	backrest frame el. fa	52107270259 backrest frame el. fa CAK	-	-	Enquire
8	52107124192	Chrome trim, monitor screen	52107124192 Chrome trim, monitor screen	-	-	Enquire
9	52100403120	Monitor holder	52100403120 Monitor holder	-	-	Enquire
10	52107057431	Cover	52107057431 Cover	-	-	Enquire
11	61310302415	Microswitch	61310302415 Microswitch	-	-	Enquire
12	52107259764	Holder, handle recess	52107259764 Holder, handle recess	-	-	Enquire
13	7147135132	Fillister head screw	7147135132 Fillister head screw ISA 4X12	-	-	Enquire
