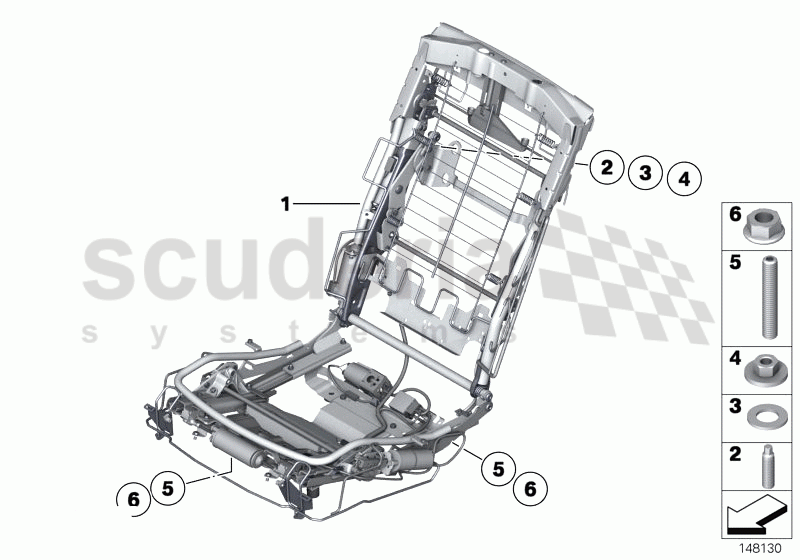

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	7147111065	Threaded bolt	$20.29	To Order

Photo	Part No	Description	Price (each)	Stock
	7147201571	Washer	$3.02	To Order

Photo	Part No	Description	Price (each)	Stock
	52207065538	Hex nut with plate	$3.30	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904951	Grub screw	$4.63	To Order

Photo	Part No	Description	Price (each)	Stock
	51138133382	Hex nut	Enquire	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	52207071231	Seat frame, electr. left	52207071231 Seat frame, electr. left	$7,744.78	-
1	52207071232	Seat frame, electr. right	52207071232 Seat frame, electr. right	$7,744.78	-
2	7147111065	Threaded bolt	7147111065 Threaded bolt	$20.29	-
3	7147201571	Washer	7147201571 Washer A8,4X25	$3.02	-
4	52207065538	Hex nut with plate	52207065538 Hex nut with plate M8	$3.30	-
5	7119904951	Grub screw	7119904951 Grub screw M8X50	$4.63	-
6	51138133382	Hex nut	51138133382 Hex nut M8-Z2	-	-	Enquire
