Trim Panel, Trunk Floor

Rolls Royce Phantom Drophead Coupe

Find Your Part

Rolls Royce Phantom Drophead Coupe - Trim panel, trunk floor

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51479158667 Trim panel, luggage comp. floor, left Enquire To Order
Photo Part No Description Price (each) Stock
51479158668 Trim panel, luggage comp. floor, right Enquire To Order
Photo Part No Description Price (each) Stock
51479141122 Loop, luggage compartment floor Enquire To Order
Photo Part No Description Price (each) Stock
7119904994 Countersunk screw Enquire To Order
Photo Part No Description Price (each) Stock
51479158669 Trim panel,luggage comp.floor,outer left Enquire To Order
Photo Part No Description Price (each) Stock
51479158670 Trim panel,luggage comp.floor,outerright Enquire To Order
Photo Part No Description Price (each) Stock
51476964313 Luggage compartment floor panel, centre Enquire To Order
Photo Part No Description Price (each) Stock
7129903806 Isa screw Enquire To Order
Photo Part No Description Price (each) Stock
7119903791 Washer Enquire To Order
Photo Part No Description Price (each) Stock
51711801066 Blind plug Enquire To Order
Photo Part No Description Price (each) Stock
7147114625 Torx-bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
51436964376 Luggage compartment rail, right Enquire To Order
51476985142 Luggage compartment rail, left Enquire To Order
Photo Part No Description Price (each) Stock
7119905908 Screw Enquire To Order
Photo Part No Description Price (each) Stock
7119904205 Washer Enquire To Order
Photo Part No Description Price (each) Stock
51476985143 Luggage compartment rail, front Enquire To Order
Photo Part No Description Price (each) Stock
7146949299 Self-locking hex nut Enquire To Order
Photo Part No Description Price (each) Stock
51479190113 Battery cover Enquire To Order
Photo Part No Description Price (each) Stock
51479158678 Trim, luggage compartment, loading edge Enquire To Order
Photo Part No Description Price (each) Stock
51479118531 Cover, hinge Enquire To Order
Photo Part No Description Price (each) Stock
46617673124 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
51479158679 Loading sill cover Enquire To Order
Photo Part No Description Price (each) Stock
51479116271 LEFT JOINT COVER Enquire To Order
51479116272 RIGHT JOINT COVER Enquire To Order
Photo Part No Description Price (each) Stock
46637670228 Fillister head screw Enquire To Order
Photo Part No Description Price (each) Stock
51479122403 Holder, joint cover, left Enquire To Order
51479122404 Holder, joint cover, right Enquire To Order
Photo Part No Description Price (each) Stock
51167072533 Spring clip Enquire To Order
Photo Part No Description Price (each) Stock
51717010104 Screw Enquire To Order
Photo Part No Description Price (each) Stock
51476986564 Oddments tray Enquire To Order
Photo Part No Description Price (each) Stock
51477045937 Tool kit compartment Enquire To Order
Photo Part No Description Price (each) Stock
51477120811 First aid kit pouch, red Enquire To Order
View All

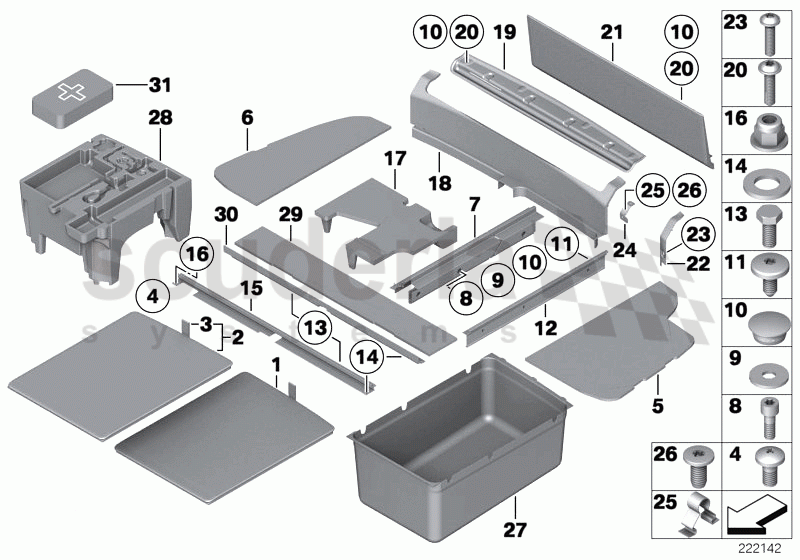

Trim panel, trunk floor of Rolls Royce Rolls Royce Phantom Drophead Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51479158667
Trim panel, luggage comp. floor, left
QUOTE COLOUR 		- - Enquire
2 51479158668
Trim panel, luggage comp. floor, right
QUOTE COLOUR 		- - Enquire
3 51479141122
Loop, luggage compartment floor 		- - Enquire
4 7119904994
Countersunk screw
M6X12-8.8 		- - Enquire
5 51479158669
Trim panel,luggage comp.floor,outer left
QUOTE COLOUR 		- - Enquire
6 51479158670
Trim panel,luggage comp.floor,outerright
QUOTE COLOUR 		- - Enquire
7 51476964313
Luggage compartment floor panel, centre 		- - Enquire
8 7129903806
Isa screw
M6X20-8.8-ZNS3 		- - Enquire
9 7119903791
Washer
A6,4 		- - Enquire
10 51711801066
Blind plug
D=20MM 		- - Enquire
11 7147114625
Torx-bolt with washer
ISA M6X16 		- - Enquire
12 51436964376
Luggage compartment rail, right 		- - Enquire
12 51476985142
Luggage compartment rail, left 		- - Enquire
13 7119905908
Screw
M4X12 		- - Enquire
14 7119904205
Washer
4X200 		- - Enquire
15 51476985143
Luggage compartment rail, front 		- - Enquire
16 7146949299
Self-locking hex nut
M4 		- - Enquire
17 51479190113
Battery cover 		- - Enquire
18 51479158678
Trim, luggage compartment, loading edge
QUOTE COLOUR 		- - Enquire
19 51479118531
Cover, hinge 		- - Enquire
20 46617673124
Fillister head screw
M 6X22 		- - Enquire
21 51479158679
Loading sill cover
QUOTE COLOUR 		- - Enquire
22 51479116271
LEFT JOINT COVER 		- - Enquire
22 51479116272
RIGHT JOINT COVER 		- - Enquire
23 46637670228
Fillister head screw
M6X25 		- - Enquire
24 51479122403
Holder, joint cover, left 		- - Enquire
24 51479122404
Holder, joint cover, right 		- - Enquire
25 51167072533
Spring clip 		- - Enquire
26 51717010104
Screw
M6X16 		- - Enquire
27 51476986564
Oddments tray 		- - Enquire
28 51477045937
Tool kit compartment 		- - Enquire
31 51477120811
First aid kit pouch, red
RR 		- - Enquire
