TRIM PANEL LEG ROOM of Rolls Royce Rolls Royce Phantom Coupe

View All

Rolls Royce Phantom Coupe - TRIM PANEL LEG ROOM

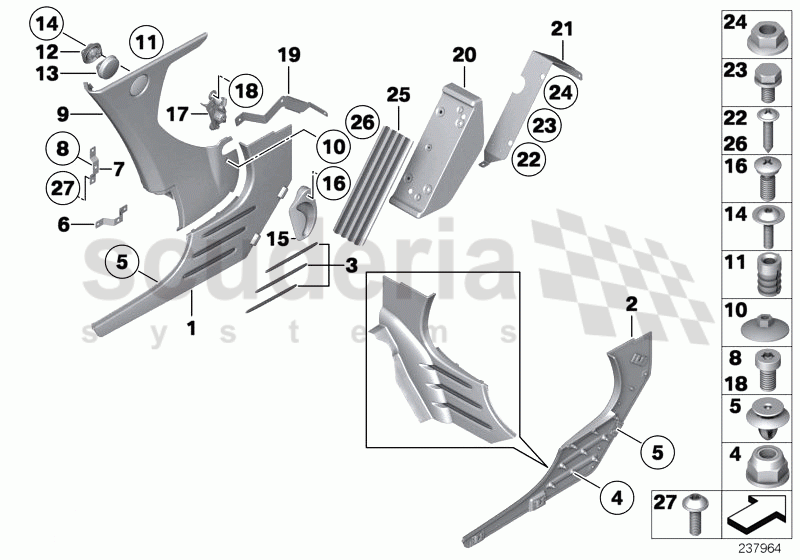

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51439158651	Trim panel, A-pillar, bottom left	Enquire	To Order
	51439158652	Trim panel, A-pillar, bottom right	Enquire	To Order
	51439158653	Trim panel, A-pillar, bottom left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51439158654	Trim panel, A-pillar, bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51416950466	Trim, step protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146989555	Self-locking hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147129317	Clip blue	Enquire	IN STOCK
	51498123832	Clip, black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51436983051	TRIM PANEL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51436983049	TRIM PANEL BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905261	Torx-countersunk screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51439158655	Trim panel, A-pillar, top, bottom left	Enquire	To Order
	51439158656	Trim panel, A-pillar, top, bottom right	Enquire	To Order
	51439158657	Trim panel, A-pillar, top, bottom left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51481923999	Push-button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51458191328	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65136919363	TOP-HIFI LOUDSPEAKER TWEETER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417067459	Trim, high-range speaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147120341	Fillister head screw	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51437059119	Lever f engine hood mechanism	Enquire	IN STOCK
	51437059120	Lever f engine hood mechanism	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959892	Phillips head screw for plastic material	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	51237065119	Holder, bonnet actuator	Enquire	To Order
	51437065118	Bracket, hood catch end support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905261	Torx-countersunk screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51437074719	Bracket cover, cowl, top left	Enquire	To Order
	51437074720	Bracket cover, cowl, top right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51437072902	Footrest trim	Enquire	To Order
	51437072903	Footrest trim	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51436964289	Bracket-footrest	Enquire	To Order
	51437060194	Bracket-footrest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51419143799	Combi. fillister head self-tapping screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904517	Hex Bolt with washer	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	7119904023	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477045938	Foot rest	Enquire	To Order
	51477045939	Foot rest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51718108385	Fillister head self-tapping screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	18117654658	Fillister head screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51439158651	Trim panel, A-pillar, bottom left	51439158651 Trim panel, A-pillar, bottom left QUOTE COLOUR	-	-	Enquire
1	51439158652	Trim panel, A-pillar, bottom right	51439158652 Trim panel, A-pillar, bottom right QUOTE COLOUR	-	-	Enquire
1	51439158653	Trim panel, A-pillar, bottom left	51439158653 Trim panel, A-pillar, bottom left QUOTE COLOUR	-	-	Enquire
2	51439158654	Trim panel, A-pillar, bottom right	51439158654 Trim panel, A-pillar, bottom right QUOTE COLOUR	-	-	Enquire
3	51416950466	Trim, step protection	51416950466 Trim, step protection BLUE CHROME	-	-	Enquire
4	7146989555	Self-locking hex nut	7146989555 Self-locking hex nut	-	-	Enquire
5	7147129317	Clip blue IN STOCK	7147129317 Clip blue IN STOCK	-	-	Enquire
5	51498123832	Clip, black	51498123832 Clip, black	-	-	Enquire
6	51436983051	TRIM PANEL BRACKET	51436983051 TRIM PANEL BRACKET	-	-	Enquire
7	51436983049	TRIM PANEL BRACKET	51436983049 TRIM PANEL BRACKET	-	-	Enquire
8	7129905261	Torx-countersunk screw	7129905261 Torx-countersunk screw M6X16 MK ZNS3	-	-	Enquire
9	51439158655	Trim panel, A-pillar, top, bottom left	51439158655 Trim panel, A-pillar, top, bottom left QUOTE COLOUR	-	-	Enquire
9	51439158656	Trim panel, A-pillar, top, bottom right	51439158656 Trim panel, A-pillar, top, bottom right QUOTE COLOUR	-	-	Enquire
9	51439158657	Trim panel, A-pillar, top, bottom left	51439158657 Trim panel, A-pillar, top, bottom left QUOTE COLOUR	-	-	Enquire
9	51439158658	Trim panel, A-pillar, top, bottom right	51439158658 Trim panel, A-pillar, top, bottom right QUOTE COLOUR	-	-	Enquire
10	51481923999	Push-button	51481923999 Push-button D=30MM;H=13MM	-	-	Enquire
11	51458191328	Pin	51458191328 Pin	-	-	Enquire
12	65136919363	TOP-HIFI LOUDSPEAKER TWEETER	65136919363 TOP-HIFI LOUDSPEAKER TWEETER	-	-	Enquire
13	51417067459	Trim, high-range speaker	51417067459 Trim, high-range speaker CHROME	-	-	Enquire
14	7147120341	Fillister head screw IN STOCK	7147120341 Fillister head screw IN STOCK	-	-	Enquire
15	51437059119	Lever f engine hood mechanism IN STOCK	51437059119 Lever f engine hood mechanism IN STOCK	-	-	Enquire
15	51437059120	Lever f engine hood mechanism	51437059120 Lever f engine hood mechanism	-	-	Enquire
16	7146959892	Phillips head screw for plastic material IN STOCK	7146959892 Phillips head screw for plastic material TS 5X13 IN STOCK	-	-	Enquire
17	51237065119	Holder, bonnet actuator	51237065119 Holder, bonnet actuator	-	-	Enquire
17	51437065118	Bracket, hood catch end support	51437065118 Bracket, hood catch end support	-	-	Enquire
18	7129905261	Torx-countersunk screw	7129905261 Torx-countersunk screw M6X16 MK ZNS3	-	-	Enquire
19	51437074719	Bracket cover, cowl, top left	51437074719 Bracket cover, cowl, top left	-	-	Enquire
19	51437074720	Bracket cover, cowl, top right	51437074720 Bracket cover, cowl, top right	-	-	Enquire
20	51437072902	Footrest trim	51437072902 Footrest trim	-	-	Enquire
20	51437072903	Footrest trim	51437072903 Footrest trim	-	-	Enquire
21	51436964289	Bracket-footrest	51436964289 Bracket-footrest	-	-	Enquire
21	51437060194	Bracket-footrest	51437060194 Bracket-footrest	-	-	Enquire
22	51419143799	Combi. fillister head self-tapping screw	51419143799 Combi. fillister head self-tapping screw ST 4,8X16	-	-	Enquire
23	7119904517	Hex Bolt with washer IN STOCK	7119904517 Hex Bolt with washer M6X12-U1-8.8 IN STOCK	-	-	Enquire
24	7119904023	Hex nut	7119904023 Hex nut M6-ZNS3	-	-	Enquire
25	51477045938	Foot rest	51477045938 Foot rest	-	-	Enquire
25	51477045939	Foot rest	51477045939 Foot rest	-	-	Enquire
26	51718108385	Fillister head self-tapping screw	51718108385 Fillister head self-tapping screw ST3,9X19	-	-	Enquire
27	18117654658	Fillister head screw	18117654658 Fillister head screw M6X22	-	-	Enquire
