Centre console of Rolls Royce Rolls Royce Phantom Coupe

View All

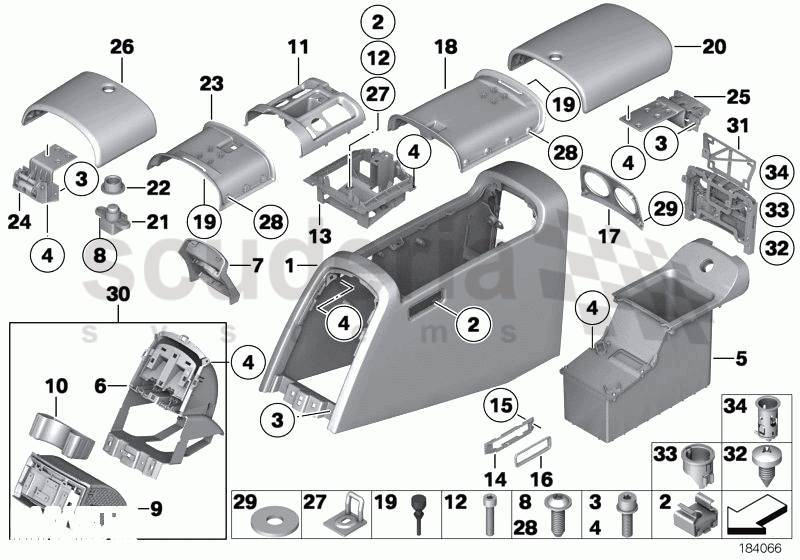

Rolls Royce Phantom Coupe - Centre console

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51167133256	Centre console, leather	Enquire	To Order
	51167250031	Centre console, leather	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147116366	CAGE NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904445	Isa screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904444	Isa screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166971762	Oddments tray	Enquire	To Order
	51167123535	Oddments tray	Enquire	To Order
	51167130986	Oddments tray	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169129854	Multi task control unit	Enquire	To Order
	51169168144	Multi task control unit	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167056304	Cover, Multi-Task Controller	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65758235255	Torx bolt for plastic material	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166950079	Ashtray, central console front	Enquire	To Order
	51167046774	Ashtray, central console front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167060436	Ashtray insert	Enquire	To Order
	51169182617	Ashtray insert	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167057726	Cover, seat adjustment switch	Enquire	To Order
	51167137490	Cover, seat adjustment switch	Enquire	To Order
	51167145122	Cover, seat adjustment switch	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51167131727	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167057725	Support Seat Adjustment Switch CTR/CONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167060371	Support Seat Heating Switch CTR/CONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146982378	Fillister head self-tapping screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167065235	Cover, seat heating switch	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167046775	Finisher for fresh air grille	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167057734	Cover, Lid rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51168151989	Rubber buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169158643	Cover, centre console, rear	Enquire	To Order
	51169227489	Cover, centre console, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166950068	Lock	Enquire	To Order
	51167046778	Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166949205	Cover	Enquire	To Order
	51167066230	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167057733	Cover, lid front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166950076	Hinge	Enquire	To Order
	51167057689	Hinge, cover front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166950077	Hinge, cover rear	Enquire	To Order
	51167057690	Hinge, cover rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169158626	Cover, centre console, front	Enquire	To Order
	51169227488	Cover, centre console, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51166950078	Catch bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167131726	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41357016940	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169118303	Multi task control unit	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51167133256	Centre console, leather	51167133256 Centre console, leather QUOTE COLOUR	-	-	Enquire
1	51167250031	Centre console, leather	51167250031 Centre console, leather QUOTE COLOUR	-	-	Enquire
2	7147116366	CAGE NUT	7147116366 CAGE NUT	-	-	Enquire
3	7129904445	Isa screw	7129904445 Isa screw M6X16	-	-	Enquire
4	7129904444	Isa screw	7129904444 Isa screw M5X16	-	-	Enquire
5	51166971762	Oddments tray	51166971762 Oddments tray BLACK	-	-	Enquire
5	51167123535	Oddments tray	51167123535 Oddments tray BLACK	-	-	Enquire
5	51167130986	Oddments tray	51167130986 Oddments tray BLACK	-	-	Enquire
6	51169129854	Multi task control unit	51169129854 Multi task control unit	-	-	Enquire
6	51169168144	Multi task control unit	51169168144 Multi task control unit	-	-	Enquire
7	51167056304	Cover, Multi-Task Controller	51167056304 Cover, Multi-Task Controller	-	-	Enquire
8	65758235255	Torx bolt for plastic material	65758235255 Torx bolt for plastic material ISA L=10MM	-	-	Enquire
9	51166950079	Ashtray, central console front	51166950079 Ashtray, central console front BLUE CHROME	-	-	Enquire
9	51167046774	Ashtray, central console front	51167046774 Ashtray, central console front F1 CHROME	-	-	Enquire
10	51167060436	Ashtray insert	51167060436 Ashtray insert F1 CHROME	-	-	Enquire
10	51169182617	Ashtray insert	51169182617 Ashtray insert BLUE CHROME	-	-	Enquire
11	51167057726	Cover, seat adjustment switch	51167057726 Cover, seat adjustment switch	-	-	Enquire
11	51167137490	Cover, seat adjustment switch	51167137490 Cover, seat adjustment switch	-	-	Enquire
11	51167145122	Cover, seat adjustment switch	51167145122 Cover, seat adjustment switch	-	-	Enquire
11	51169178651	Cover, seat adjustment switch	51169178651 Cover, seat adjustment switch	-	-	Enquire
12	51167131727	Screw	51167131727 Screw M4X20	-	-	Enquire
13	51167057725	Support Seat Adjustment Switch CTR/CONS	51167057725 Support Seat Adjustment Switch CTR/CONS	-	-	Enquire
14	51167060371	Support Seat Heating Switch CTR/CONS	51167060371 Support Seat Heating Switch CTR/CONS	-	-	Enquire
15	7146982378	Fillister head self-tapping screw	7146982378 Fillister head self-tapping screw ST4,8X13	-	-	Enquire
16	51167065235	Cover, seat heating switch	51167065235 Cover, seat heating switch	-	-	Enquire
17	51167046775	Finisher for fresh air grille	51167046775 Finisher for fresh air grille	-	-	Enquire
18	51167057734	Cover, Lid rear	51167057734 Cover, Lid rear	-	-	Enquire
19	51168151989	Rubber buffer	51168151989 Rubber buffer	-	-	Enquire
20	51169158643	Cover, centre console, rear	51169158643 Cover, centre console, rear QUOTE COLOUR	-	-	Enquire
20	51169227489	Cover, centre console, rear	51169227489 Cover, centre console, rear QUOTE COLOUR	-	-	Enquire
21	51166950068	Lock	51166950068 Lock BLUE CHROME	-	-	Enquire
21	51167046778	Lock	51167046778 Lock F1 CHROME	-	-	Enquire
22	51166949205	Cover	51166949205 Cover BLUE CHROME	-	-	Enquire
22	51167066230	Cover	51167066230 Cover F1 CHROME	-	-	Enquire
23	51167057733	Cover, lid front	51167057733 Cover, lid front	-	-	Enquire
24	51166950076	Hinge	51166950076 Hinge BLUE CHROME FRT	-	-	Enquire
24	51167057689	Hinge, cover front	51167057689 Hinge, cover front F1 CHROME	-	-	Enquire
25	51166950077	Hinge, cover rear	51166950077 Hinge, cover rear BLUE CHROME	-	-	Enquire
25	51167057690	Hinge, cover rear	51167057690 Hinge, cover rear F1 CHROME	-	-	Enquire
26	51169158626	Cover, centre console, front	51169158626 Cover, centre console, front QUOTE COLOUR	-	-	Enquire
26	51169227488	Cover, centre console, front	51169227488 Cover, centre console, front QUOTE COLOUR	-	-	Enquire
27	51166950078	Catch bracket	51166950078 Catch bracket BLUE CHROME	-	-	Enquire
28	51167131726	Screw	51167131726 Screw M4X10	-	-	Enquire
29	41357016940	Washer	41357016940 Washer OD=15 ID=6.4	-	-	Enquire
30	51169118303	Multi task control unit	51169118303 Multi task control unit BLUE CHROME	-	-	Enquire
