Headlining, front of Rolls Royce Rolls Royce Phantom

View All

Rolls Royce Phantom - Headlining, front

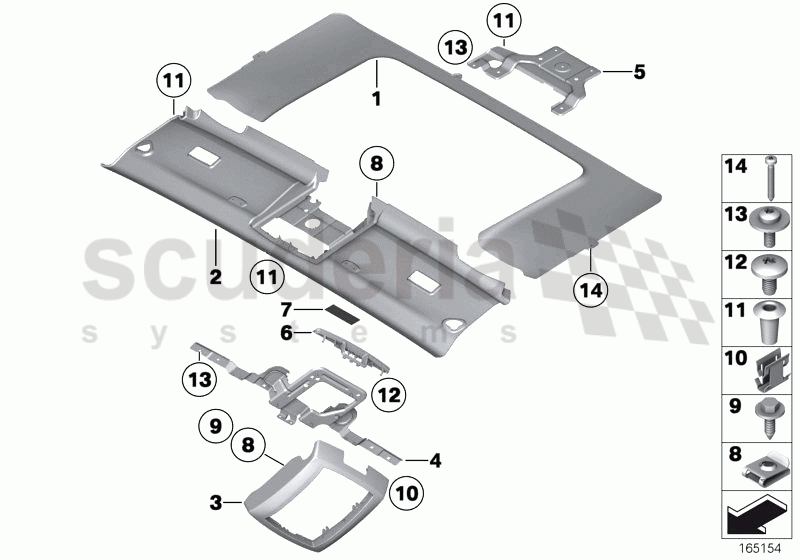

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51447148597	Headliner, front	Enquire	To Order
	51449141554	Headliner, front	Enquire	To Order
	51449161490	Headliner front	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51447148595	Trim panel, roof frame, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51446964065	Console frame, front	Enquire	To Order
	51447148599	Console frame, front	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51447148593	PANEL ASSY CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51447151382	Bracket headlining	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51447148604	SWITCH CVR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65771377052	FELT STRIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904150	Body nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904263	Sheet metal screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52108151454	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51437115719	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149112449	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51447046427	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905199	Screw, self tapping	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51447148597	Headliner, front	51447148597 Headliner, front BEIGE	-	-	Enquire
1	51449141554	Headliner, front	51449141554 Headliner, front BLACK	-	-	Enquire
1	51449161490	Headliner front	51449161490 Headliner front BLACK	-	-	Enquire
1	51449161519	Headliner front	51449161519 Headliner front OATMEAL	-	-	Enquire
1	51449197948	Headliner front	51449197948 Headliner front CORNSILK	-	-	Enquire
2	51447148595	Trim panel, roof frame, front	51447148595 Trim panel, roof frame, front QUOTE COLOUR	-	-	Enquire
3	51446964065	Console frame, front	51446964065 Console frame, front BLUE CHROME	-	-	Enquire
3	51447148599	Console frame, front	51447148599 Console frame, front F1 CHROME	-	-	Enquire
4	51447148593	PANEL ASSY CENTRE	51447148593 PANEL ASSY CENTRE	-	-	Enquire
5	51447151382	Bracket headlining	51447151382 Bracket headlining	-	-	Enquire
6	51447148604	SWITCH CVR	51447148604 SWITCH CVR	-	-	Enquire
7	65771377052	FELT STRIP	65771377052 FELT STRIP 40X70X0,8MM	-	-	Enquire
8	7129904150	Body nut	7129904150 Body nut ST4,8-9-ZNS3	-	-	Enquire
9	7119904263	Sheet metal screw with washer	7119904263 Sheet metal screw with washer ST 4,8X19	-	-	Enquire
10	52108151454	Clamp	52108151454 Clamp	-	-	Enquire
11	51437115719	Clip	51437115719 Clip BLACK	-	-	Enquire
12	7149112449	Torx-bolt with washer	7149112449 Torx-bolt with washer	-	-	Enquire
13	51447046427	Fillister head screw	51447046427 Fillister head screw M5X12MM	-	-	Enquire
14	7119905199	Screw, self tapping	7119905199 Screw, self tapping ST4,8X38-R-ZNFE	-	-	Enquire
