Door trim panel, front / up to 01/2009 of Rolls Royce Rolls Royce Phantom

View All

Rolls Royce Phantom - Door trim panel, front / up to 01/2009

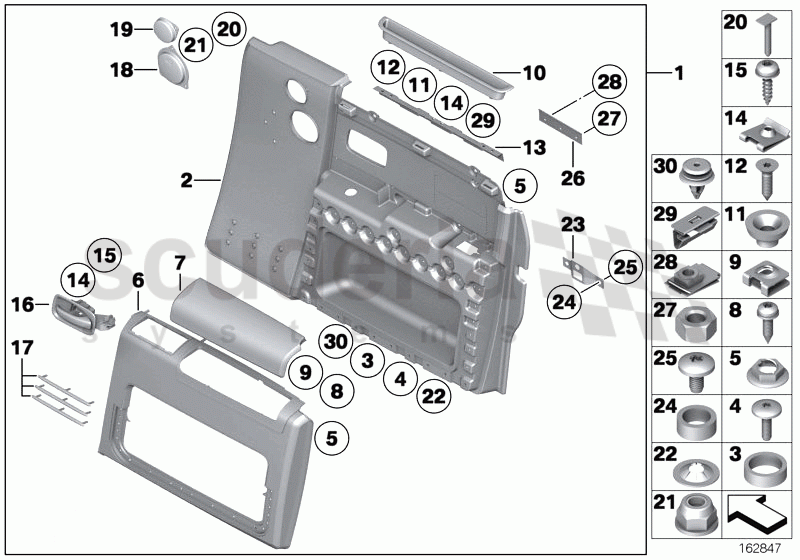

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51417048919	Door casing assembly, front left	Enquire	To Order
	51417048920	Door casing assembly, front right	Enquire	To Order
	51417067863	Door casing assembly, front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51410421697	Door trim panel, front left	Enquire	To Order
	51410421699	Door trim panel, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51427068472	Sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147075867	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51418176418	Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51410421694	Door pocket, front right	Enquire	To Order
	51410421696	Door pocket, front right	Enquire	To Order
	51410421701	Door pocket, front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51417128809	Armrest, left	Enquire	To Order
	51417128810	Armrest, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51457057952	Fillister head self-tapping screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146979392	Body nut	Enquire	To Order
	7146981256	Body nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417067051	Handle recess	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417112297	Sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417130171	Screw, self tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417061692	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11129157025	Body nut	Enquire	To Order
	54218187779	Body nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417001470	Fillister head self-tapping screw	Enquire	To Order
	51419143799	Combi. fillister head self-tapping screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51216956873	Handle, door release, front left	Enquire	To Order
	51216956874	Handle, door release, front right	Enquire	To Order
	51417046837	Handle, door release, front left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51416950466	Trim, step protection	Enquire	To Order
	51417046839	Trim, step protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417220237	Speaker cover, mid-range speaker	Enquire	To Order
	51417144527	Trim, mid-range speaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417067459	Trim, high-range speaker	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417057380	Mounting plate	Enquire	To Order
	51417152618	Mounting plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129903279	Hex nut	Enquire	To Order
	7146989555	Self-locking hex nut	Enquire	To Order
	51178220055	Self-locking hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51458220836	SPRING NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417061690	Angle bracket, airbag module	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51457125662	Sleeve, airbag screw connection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51211940825	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417051779	Airbag bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12312322422	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51451885649	NUT HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417033007	Clamp, drip rail	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51417056298	Clip, yellow	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51417048919	Door casing assembly, front left	51417048919 Door casing assembly, front left QUOTE COLOUR	-	-	Enquire
1	51417048920	Door casing assembly, front right	51417048920 Door casing assembly, front right QUOTE COLOUR	-	-	Enquire
1	51417067863	Door casing assembly, front left	51417067863 Door casing assembly, front left QUOTE COLOUR	-	-	Enquire
1	51417067864	Door casing assembly, front right	51417067864 Door casing assembly, front right QUOTE COLOUR	-	-	Enquire
2	51410421697	Door trim panel, front left	51410421697 Door trim panel, front left	-	-	Enquire
2	51410421699	Door trim panel, front right	51410421699 Door trim panel, front right	-	-	Enquire
3	51427068472	Sleeve	51427068472 Sleeve	-	-	Enquire
4	7147075867	Torx bolt	7147075867 Torx bolt ISA M6X22	-	-	Enquire
5	51418176418	Nut	51418176418 Nut	-	-	Enquire
6	51410421694	Door pocket, front right	51410421694 Door pocket, front right LHD	-	-	Enquire
6	51410421696	Door pocket, front right	51410421696 Door pocket, front right RHD	-	-	Enquire
6	51410421701	Door pocket, front left	51410421701 Door pocket, front left LHD	-	-	Enquire
6	51410421705	Door pocket, front left	51410421705 Door pocket, front left RHD	-	-	Enquire
7	51417128809	Armrest, left	51417128809 Armrest, left QUOTE COLOUR	-	-	Enquire
7	51417128810	Armrest, right	51417128810 Armrest, right QUOTE COLOUR	-	-	Enquire
8	51457057952	Fillister head self-tapping screw	51457057952 Fillister head self-tapping screw	-	-	Enquire
9	7146979392	Body nut	7146979392 Body nut	-	-	Enquire
9	7146981256	Body nut	7146981256 Body nut	-	-	Enquire
10	51417067051	Handle recess	51417067051 Handle recess	-	-	Enquire
11	51417112297	Sleeve	51417112297 Sleeve	-	-	Enquire
12	51417130171	Screw, self tapping	51417130171 Screw, self tapping	-	-	Enquire
13	51417061692	Bracket	51417061692 Bracket	-	-	Enquire
14	11129157025	Body nut	11129157025 Body nut	-	-	Enquire
14	54218187779	Body nut	54218187779 Body nut ST 4.8	-	-	Enquire
15	51417001470	Fillister head self-tapping screw	51417001470 Fillister head self-tapping screw ST 4,8X16	-	-	Enquire
15	51419143799	Combi. fillister head self-tapping screw	51419143799 Combi. fillister head self-tapping screw ST 4,8X16	-	-	Enquire
16	51216956873	Handle, door release, front left	51216956873 Handle, door release, front left BLUE CHROME	-	-	Enquire
16	51216956874	Handle, door release, front right	51216956874 Handle, door release, front right BLUE CHROME	-	-	Enquire
16	51417046837	Handle, door release, front left	51417046837 Handle, door release, front left F1 CHROME	-	-	Enquire
16	51417046838	Handle, door release, front right	51417046838 Handle, door release, front right F1 CHROME	-	-	Enquire
17	51416950466	Trim, step protection	51416950466 Trim, step protection BLUE CHROME	-	-	Enquire
17	51417046839	Trim, step protection	51417046839 Trim, step protection F1 CHROME	-	-	Enquire
18	51417220237	Speaker cover, mid-range speaker	51417220237 Speaker cover, mid-range speaker CHROME	-	-	Enquire
18	51417144527	Trim, mid-range speaker	51417144527 Trim, mid-range speaker CHROME	-	-	Enquire
19	51417067459	Trim, high-range speaker	51417067459 Trim, high-range speaker CHROME	-	-	Enquire
20	51417057380	Mounting plate	51417057380 Mounting plate M5X25	-	-	Enquire
20	51417152618	Mounting plate	51417152618 Mounting plate M4X25	-	-	Enquire
21	7129903279	Hex nut	7129903279 Hex nut M4-A2	-	-	Enquire
21	7146989555	Self-locking hex nut	7146989555 Self-locking hex nut	-	-	Enquire
21	51178220055	Self-locking hex nut	51178220055 Self-locking hex nut M5	-	-	Enquire
22	51458220836	SPRING NUT	51458220836 SPRING NUT	-	-	Enquire
23	51417061690	Angle bracket, airbag module	51417061690 Angle bracket, airbag module	-	-	Enquire
24	51457125662	Sleeve, airbag screw connection	51457125662 Sleeve, airbag screw connection	-	-	Enquire
25	51211940825	Torx-bolt with washer	51211940825 Torx-bolt with washer ISA M6X12	-	-	Enquire
26	51417051779	Airbag bracket	51417051779 Airbag bracket	-	-	Enquire
27	12312322422	Hex nut	12312322422 Hex nut M5	-	-	Enquire
28	51451885649	NUT HOLDER	51451885649 NUT HOLDER M6	-	-	Enquire
29	51417033007	Clamp, drip rail	51417033007 Clamp, drip rail	-	-	Enquire
30	51417056298	Clip, yellow	51417056298 Clip, yellow	-	-	Enquire
