Seat rear seat frame comfort seat of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

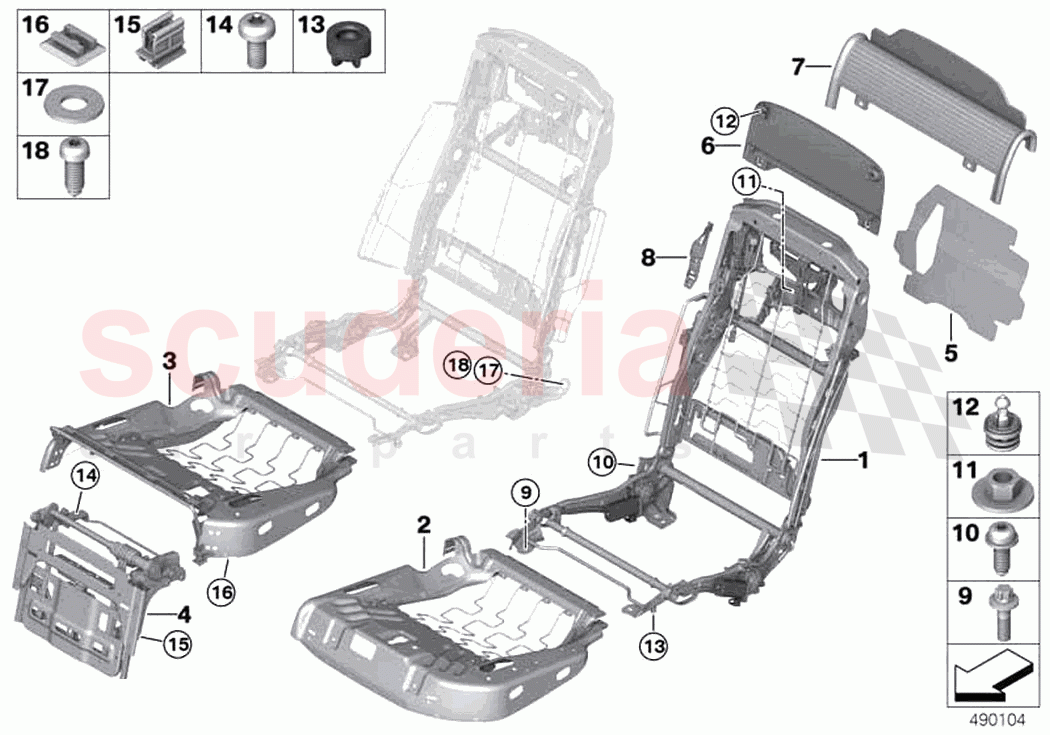

Rolls Royce Phantom Extended RR12(2017-2023) - Seat rear seat frame comfort seat

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52207454553	Seat mechanism, comfort seat, left	Enquire	To Order
	52207454554	Seat mechanism, comfort seat, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207454555	Seat pan left	Enquire	To Order
	52207454556	Seat pan, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52209475297	Seat pan left	Enquire	To Order
	52209475298	Seat pan, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207433380	Mechanics foot rest	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207451158	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207416011	Rear panel backrest upper section	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207467893	Slot cover, left	Enquire	To Order
	52207467894	Slot cover, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207479273	Cable holder	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54619907089	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207462168	Oval-head screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905095	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207220722	Fixing kit, clips	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207070497	Repair kit f buffer and sliding piece	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129908644	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61138038489	Plug-in connection bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61131378908	Bracket, plug connection black	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147950592	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147450108	ISA screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	52207454553	Seat mechanism, comfort seat, left	52207454553 Seat mechanism, comfort seat, left	-	1	Enquire
1	52207454554	Seat mechanism, comfort seat, right	52207454554 Seat mechanism, comfort seat, right	-	1	Enquire
2	52207454555	Seat pan left	52207454555 Seat pan left	-	1	Enquire
2	52207454556	Seat pan, right	52207454556 Seat pan, right	-	1	Enquire
3	52209475297	Seat pan left	52209475297 Seat pan left	-	1	Enquire
3	52209475298	Seat pan, right	52209475298 Seat pan, right	-	1	Enquire
4	52207433380	Mechanics foot rest	52207433380 Mechanics foot rest	-	2	Enquire
5	52207451158	Cover	52207451158 Cover	-	2	Enquire
6	52207416011	Rear panel backrest upper section	52207416011 Rear panel backrest upper section SCHWARZ	-	2	Enquire
7	52207467893	Slot cover, left	52207467893 Slot cover, left	-	1	Enquire
7	52207467894	Slot cover, right	52207467894 Slot cover, right	-	1	Enquire
8	52207479273	Cable holder	52207479273 Cable holder	-	2	Enquire
9	54619907089	Torx bolt	54619907089 Torx bolt M8X20 ZNS3	-	8	Enquire
10	52207462168	Oval-head screw with washer	52207462168 Oval-head screw with washer ISA M12 X 27	-	2	Enquire
11	7129905095	Hex nut	7129905095 Hex nut BM8-8-ZNS3	-	6	Enquire
12	52207220722	Fixing kit, clips	52207220722 Fixing kit, clips	-	4	Enquire
13	52207070497	Repair kit f buffer and sliding piece	52207070497 Repair kit f buffer and sliding piece	-	4	Enquire
14	7129908644	ISA screw	7129908644 ISA screw M8X16 10.9 ZNS3	-	4	Enquire
15	61138038489	Plug-in connection bracket	61138038489 Plug-in connection bracket	-	2	Enquire
16	61131378908	Bracket, plug connection black	61131378908 Bracket, plug connection black	-	2	Enquire
17	7147950592	Washer	7147950592 Washer 13-300 HV-ZNS3	-	2	Enquire
18	7147450108	ISA screw	7147450108 ISA screw M12 X 27 ZNS3	-	2	Enquire
