Seat front backrest frame of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

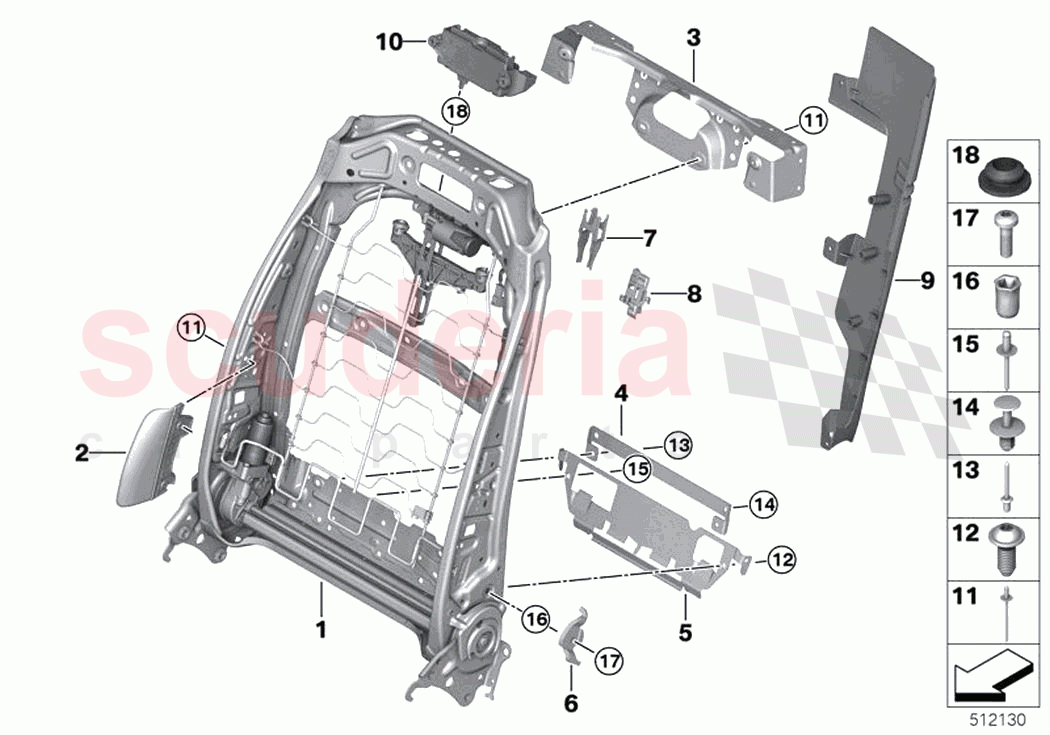

Rolls Royce Phantom Extended RR12(2017-2023) - Seat front backrest frame

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52107470641	Backrest frame, electrical	Enquire	To Order
	52107457276	Backrest frame, electrical	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107312905	Left support	Enquire	To Order
	52107312906	Right support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107308917	Carrier plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52108495448	Bracket, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107310145	Attachment strip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107355783	Stopper left	Enquire	To Order
	52107355784	Stopper right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107404879	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61139258261	Plug-in connection bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107945677	Cover support outer left	Enquire	To Order
	52107945678	Cover support outer right	Enquire	To Order
	52109109309	Bezugstrï¿½ï¿½ger innen links	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7129908078	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147216152	Blind rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51471911992	Expanding rivet	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	52107042164	Blind rivet	52107042164 Blind rivet 4,0X10	-	18	Enquire
-	7147132311	Blind rivet nut, flat headed	7147132311 Blind rivet nut, flat headed M6	-	4	Enquire
-	7147265827	Blind rivet	7147265827 Blind rivet	-	4	Enquire
-	7149194839	Screw torx drive	7149194839 Screw torx drive M6 X 20	-	4	Enquire
1	52107470641	Backrest frame, electrical	52107470641 Backrest frame, electrical	-	2	Enquire
1	52107457276	Backrest frame, electrical	52107457276 Backrest frame, electrical	-	2	Enquire
2	52107312905	Left support	52107312905 Left support	-	2	Enquire
2	52107312906	Right support	52107312906 Right support	-	2	Enquire
3	52107308917	Carrier plate	52107308917 Carrier plate	-	1	Enquire
4	52108495448	Bracket, bottom	52108495448 Bracket, bottom	-	1	Enquire
5	52107310145	Attachment strip	52107310145 Attachment strip	-	2	Enquire
6	52107355783	Stopper left	52107355783 Stopper left	-	2	Enquire
6	52107355784	Stopper right	52107355784 Stopper right	-	2	Enquire
7	52107404879	Clip	52107404879 Clip	-	2	Enquire
8	61139258261	Plug-in connection bracket	61139258261 Plug-in connection bracket	-	2	Enquire
9	52107945677	Cover support outer left	52107945677 Cover support outer left	-	1	Enquire
9	52107945678	Cover support outer right	52107945678 Cover support outer right	-	1	Enquire
9	52109109309	Bezugstrï¿½ï¿½ger innen links	52109109309 Bezugstrï¿½ï¿½ger innen links	-	1	Enquire
9	52109109310	Cover support inner right	52109109310 Cover support inner right	-	1	Enquire
12	7129908078	Screw	7129908078 Screw TS 5X12	-	4	Enquire
13	7147216152	Blind rivet	7147216152 Blind rivet AL-A2	-	2	Enquire
14	51471911992	Expanding rivet	51471911992 Expanding rivet D = 8MM	-	4	Enquire
