Floorpan assembly of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

Rolls Royce Phantom Extended RR12(2017-2023) - Floorpan assembly

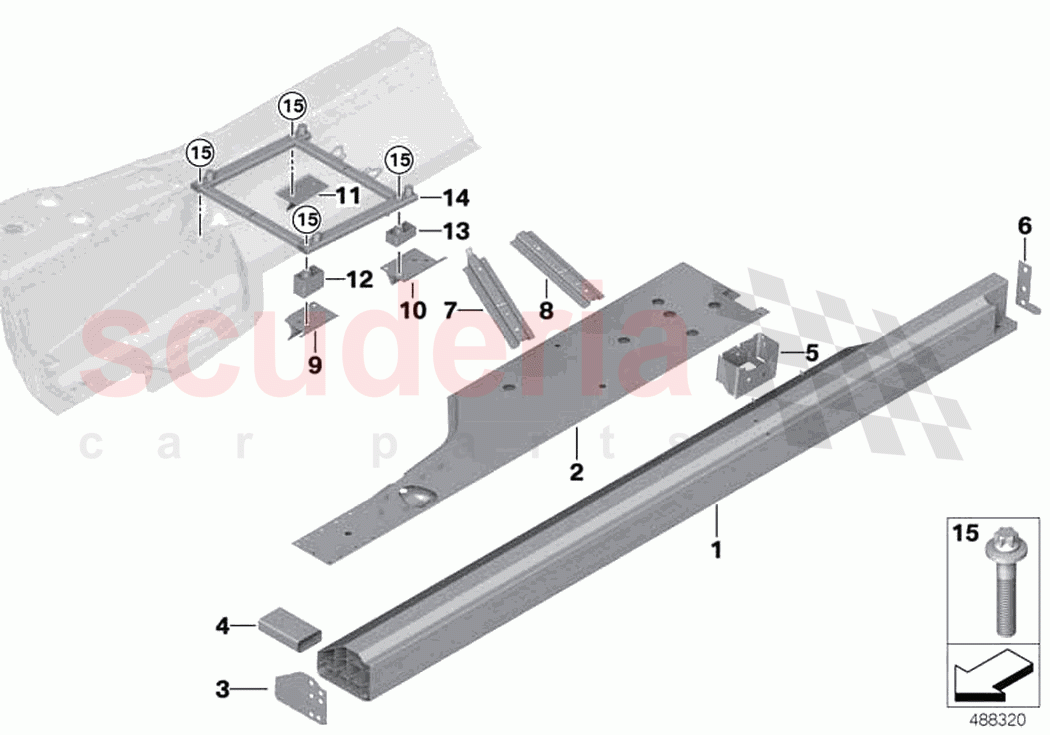

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41008494567	Frame side member, inner left	Enquire	To Order
	41008494568	Frame side member, inner right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494583	Floor panel, middle left	Enquire	To Order
	41008494584	Floor panel, middle right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494563	Cover for frame side member, left	Enquire	To Order
	41008494564	Cover for frame side member, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494557	Support, engine carrier bottom left	Enquire	To Order
	41008494558	Support, engine carrier bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494565	B-pillar base, left	Enquire	To Order
	41008494566	B-pillar base, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494560	Lid side member rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494585	Support, seat console, left	Enquire	To Order
	41008494586	Support, seat console, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494587	Left reinforcement floor panel	Enquire	To Order
	41008494588	Right reinforcement floor panel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494571	Seat support, outer front left	Enquire	To Order
	41008494572	Seat support, outer front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494573	Seat console, rear outer left	Enquire	To Order
	41008494574	Seat console, rear outer right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494575	Seat console inner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494569	Mounting for front seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494570	Mounting for rear seat	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51718494577	Seat frame, left	Enquire	To Order
	51718494578	Seat frame, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907536	Torx bolt	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	41008494567	Frame side member, inner left	41008494567 Frame side member, inner left	-	1	Enquire
1	41008494568	Frame side member, inner right	41008494568 Frame side member, inner right	-	1	Enquire
2	41008494583	Floor panel, middle left	41008494583 Floor panel, middle left	-	1	Enquire
2	41008494584	Floor panel, middle right	41008494584 Floor panel, middle right	-	1	Enquire
3	41008494563	Cover for frame side member, left	41008494563 Cover for frame side member, left	-	1	Enquire
3	41008494564	Cover for frame side member, right	41008494564 Cover for frame side member, right	-	1	Enquire
4	41008494557	Support, engine carrier bottom left	41008494557 Support, engine carrier bottom left	-	1	Enquire
4	41008494558	Support, engine carrier bottom right	41008494558 Support, engine carrier bottom right	-	1	Enquire
5	41008494565	B-pillar base, left	41008494565 B-pillar base, left	-	1	Enquire
5	41008494566	B-pillar base, right	41008494566 B-pillar base, right	-	1	Enquire
6	41008494560	Lid side member rear	41008494560 Lid side member rear	-	2	Enquire
7	41008494585	Support, seat console, left	41008494585 Support, seat console, left	-	1	Enquire
7	41008494586	Support, seat console, right	41008494586 Support, seat console, right	-	1	Enquire
8	41008494587	Left reinforcement floor panel	41008494587 Left reinforcement floor panel	-	1	Enquire
8	41008494588	Right reinforcement floor panel	41008494588 Right reinforcement floor panel	-	1	Enquire
9	41008494571	Seat support, outer front left	41008494571 Seat support, outer front left	-	1	Enquire
9	41008494572	Seat support, outer front right	41008494572 Seat support, outer front right	-	1	Enquire
10	41008494573	Seat console, rear outer left	41008494573 Seat console, rear outer left	-	1	Enquire
10	41008494574	Seat console, rear outer right	41008494574 Seat console, rear outer right	-	1	Enquire
11	41008494575	Seat console inner	41008494575 Seat console inner	-	4	Enquire
12	41008494569	Mounting for front seat	41008494569 Mounting for front seat	-	4	Enquire
13	41008494570	Mounting for rear seat	41008494570 Mounting for rear seat	-	4	Enquire
14	51718494577	Seat frame, left	51718494577 Seat frame, left	-	1	Enquire
14	51718494578	Seat frame, right	51718494578 Seat frame, right	-	1	Enquire
15	7119907536	Torx bolt	7119907536 Torx bolt ASA M10X50 10.9	-	8	Enquire
