Front side panel Mounting parts of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

Rolls Royce Phantom Extended RR12(2017-2023) - Front side panel Mounting parts

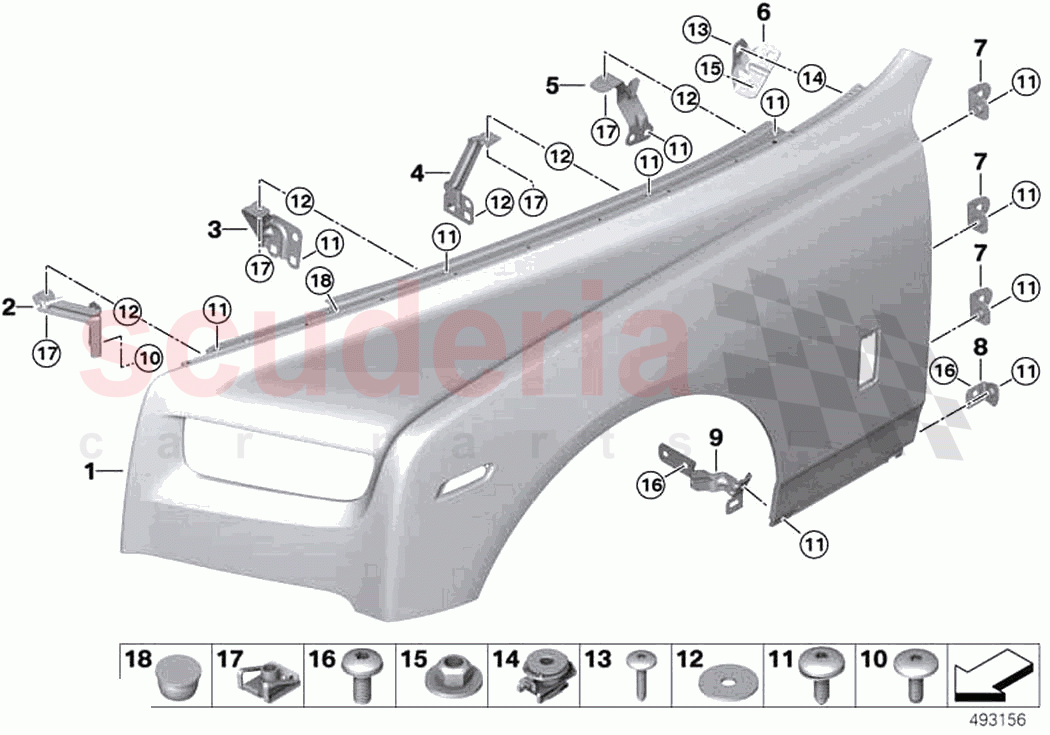

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51717399851	Side panel, front left	Enquire	To Order
	51717399852	Side panel, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008495585	Side panel bracket, front left 1	Enquire	To Order
	41008495586	Side panel bracket, front right 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008495570	Bracket, side panel front 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008495587	Side panel bracket, front left 3	Enquire	To Order
	41008495588	Side panel bracket, front right 3	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008495589	Side panel bracket, front left 4	Enquire	To Order
	41008495590	Side panel bracket, front right 4	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008494667	Side panel bracket, front left 5	Enquire	To Order
	41008494668	Side panel bracket, front right 5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008495595	Bracket, side panel column A left	Enquire	To Order
	41008496060	Bracket, side panel, column A right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008495591	Holder, side panel, front bottom left	Enquire	To Order
	41008495592	Holder, side panel, front bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	41008495593	Holder side panel side sill bottom left	Enquire	To Order
	41008495594	Holder, side panel, sill bottom right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959923	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147142046	Torx screw with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146977329	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149353144	Oval-head screw with dog point	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63127280779	Compensating element	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904870	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147197262	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147133884	Body nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149464790	Cover	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51717399851	Side panel, front left	51717399851 Side panel, front left	-	1	Enquire
1	51717399852	Side panel, front right	51717399852 Side panel, front right	-	1	Enquire
2	41008495585	Side panel bracket, front left 1	41008495585 Side panel bracket, front left 1	-	1	Enquire
2	41008495586	Side panel bracket, front right 1	41008495586 Side panel bracket, front right 1	-	1	Enquire
3	41008495570	Bracket, side panel front 2	41008495570 Bracket, side panel front 2	-	2	Enquire
4	41008495587	Side panel bracket, front left 3	41008495587 Side panel bracket, front left 3	-	1	Enquire
4	41008495588	Side panel bracket, front right 3	41008495588 Side panel bracket, front right 3	-	1	Enquire
5	41008495589	Side panel bracket, front left 4	41008495589 Side panel bracket, front left 4	-	1	Enquire
5	41008495590	Side panel bracket, front right 4	41008495590 Side panel bracket, front right 4	-	1	Enquire
6	41008494667	Side panel bracket, front left 5	41008494667 Side panel bracket, front left 5	-	1	Enquire
6	41008494668	Side panel bracket, front right 5	41008494668 Side panel bracket, front right 5	-	1	Enquire
7	41008495595	Bracket, side panel column A left	41008495595 Bracket, side panel column A left	-	3	Enquire
7	41008496060	Bracket, side panel, column A right	41008496060 Bracket, side panel, column A right	-	3	Enquire
8	41008495591	Holder, side panel, front bottom left	41008495591 Holder, side panel, front bottom left	-	1	Enquire
8	41008495592	Holder, side panel, front bottom right	41008495592 Holder, side panel, front bottom right	-	1	Enquire
9	41008495593	Holder side panel side sill bottom left	41008495593 Holder side panel side sill bottom left	-	1	Enquire
9	41008495594	Holder, side panel, sill bottom right	41008495594 Holder, side panel, sill bottom right	-	1	Enquire
10	7146959923	Torx bolt	7146959923 Torx bolt ISA M6X18 SW	-	8	Enquire
11	7147142046	Torx screw with washer	7147142046 Torx screw with washer	-	36	Enquire
12	7146977329	Washer	7146977329 Washer 6,4X25X1,5	-	10	Enquire
13	7149353144	Oval-head screw with dog point	7149353144 Oval-head screw with dog point	-	2	Enquire
14	63127280779	Compensating element	63127280779 Compensating element	-	2	Enquire
15	7129904870	Hex nut	7129904870 Hex nut BM6-8-ZNS3	-	4	Enquire
16	7147197262	Fillister head screw	7147197262 Fillister head screw	-	2	Enquire
17	7147133884	Body nut	7147133884 Body nut M6	-	4	Enquire
18	7149464790	Cover	7149464790 Cover	-	1	Enquire
