Timing and valve train timing chain of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

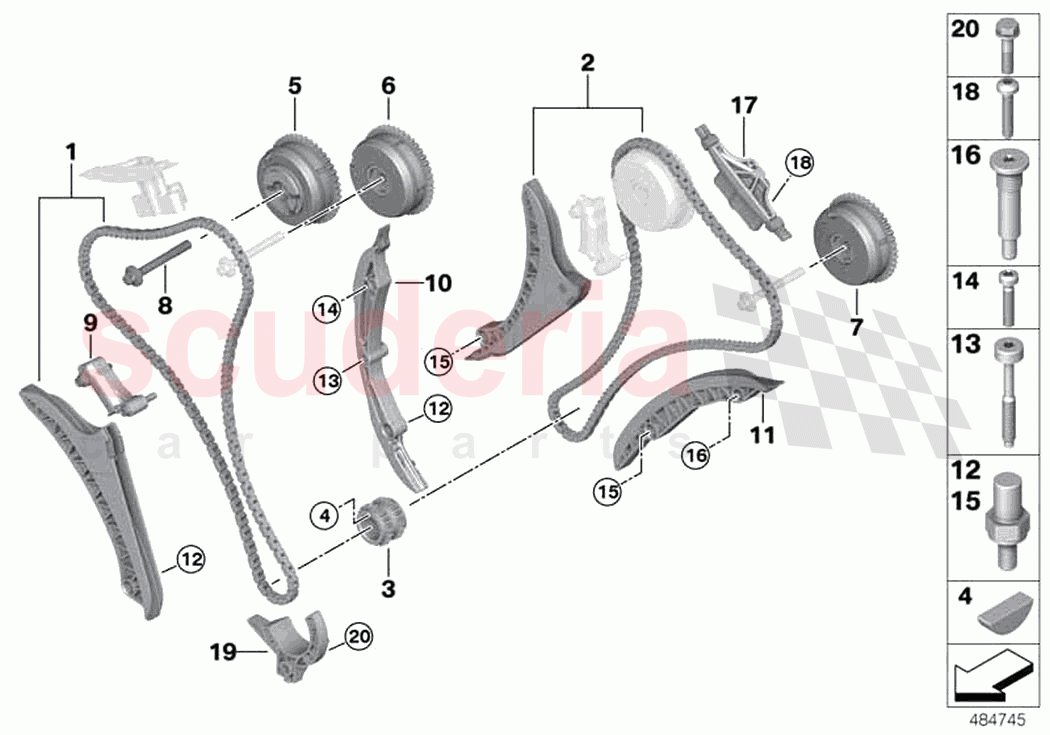

Rolls Royce Phantom Extended RR12(2017-2023) - Timing and valve train timing chain

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11318661671	Timing chain with tensioning rail	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11318661670	Timing chain with tensioning rail	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11217571037	Sprocket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119951453	Woodruff key	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11367567499	Adjustment unit, outlet camshaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11367598001	Adjustment unit, inlet camshaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11367598002	Adjustment unit, outlet camshaft	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11367564346	Central screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317557741	Chain tensioner	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317574338	Guide rail	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317574334	Guide rail	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317584403	Bearing screw, self-locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317560666	Bearing screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317504455	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317584402	Bearing screw, self-locking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317582925	Bearing screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11317574336	Slide rail	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11127570995	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11147574332	Chain guide	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905400	Hex Bolt with washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	11318661671	Timing chain with tensioning rail	11318661671 Timing chain with tensioning rail ZYL. 1-6	-	1	Enquire
2	11318661670	Timing chain with tensioning rail	11318661670 Timing chain with tensioning rail ZYL. 7-12	-	1	Enquire
3	11217571037	Sprocket	11217571037 Sprocket	-	1	Enquire
4	7119951453	Woodruff key	7119951453 Woodruff key 4X5	-	1	Enquire
5	11367567499	Adjustment unit, outlet camshaft	11367567499 Adjustment unit, outlet camshaft ZYL. 1-6	-	1	Enquire
6	11367598001	Adjustment unit, inlet camshaft	11367598001 Adjustment unit, inlet camshaft	-	2	Enquire
7	11367598002	Adjustment unit, outlet camshaft	11367598002 Adjustment unit, outlet camshaft	-	1	Enquire
8	11367564346	Central screw	11367564346 Central screw M10X1X80	-	4	Enquire
9	11317557741	Chain tensioner	11317557741 Chain tensioner	-	2	Enquire
10	11317574338	Guide rail	11317574338 Guide rail	-	1	Enquire
11	11317574334	Guide rail	11317574334 Guide rail	-	1	Enquire
12	11317584403	Bearing screw, self-locking	11317584403 Bearing screw, self-locking	-	2	Enquire
13	11317560666	Bearing screw	11317560666 Bearing screw	-	1	Enquire
14	11317504455	Torx bolt	11317504455 Torx bolt M8X38	-	1	Enquire
15	11317584402	Bearing screw, self-locking	11317584402 Bearing screw, self-locking	-	2	Enquire
16	11317582925	Bearing screw	11317582925 Bearing screw	-	1	Enquire
17	11317574336	Slide rail	11317574336 Slide rail	-	2	Enquire
18	11127570995	ISA screw	11127570995 ISA screw M7X45-8.8	-	4	Enquire
19	11147574332	Chain guide	11147574332 Chain guide	-	1	Enquire
20	7119905400	Hex Bolt with washer	7119905400 Hex Bolt with washer M6X25-ZNNIV SI	-	1	Enquire
