Name: Cylinder head cover
Rating: 4.3 (1 reviews)

Cylinder head cover of Rolls Royce Rolls Royce Phantom Extended RR12(2017-2023)

View All

Rolls Royce Phantom Extended RR12(2017-2023) - Cylinder head cover

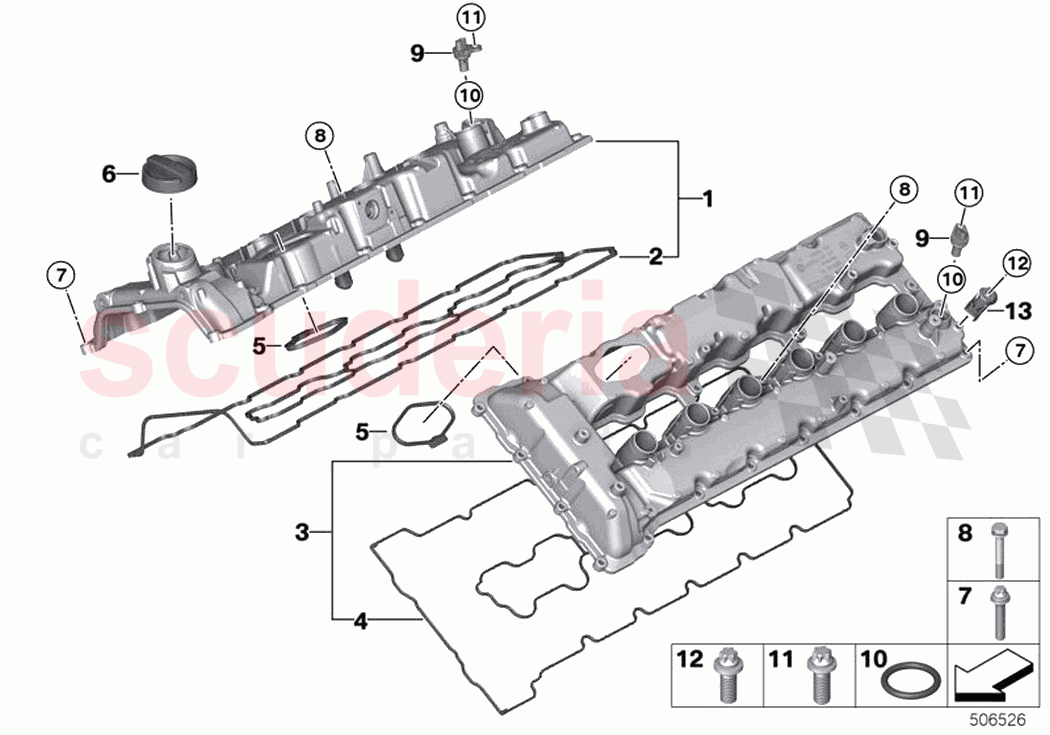

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	11128634949	Cylinder head cover	$763.74	To Order
	11129453761	Cylinder head cover	$763.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11128621955	Profile seal, cylinder head cover	$59.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11129453764	Cylinder head cover	$763.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11128621958	Profile seal, cylinder head cover	$59.37	To Order

Photo	Part No	Description	Price (each)	Stock
	11128636401	Profile-gasket	$12.44	To Order

Photo	Part No	Description	Price (each)	Stock
	11127599009	Sealing cap, oil filler neck	$99.61	To Order

Photo	Part No	Description	Price (each)	Stock
	11519908732	Hexalobular socket screw	$2.57	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904525	Hex Bolt with washer	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	13627633958	Camshaft sensor	$194.09	To Order

Photo	Part No	Description	Price (each)	Stock
	13628658854	O-ring	$5.53	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907463	Hexalobular socket screw	$1.22	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908284	Hexalobular socket screw	$1.48	To Order

Photo	Part No	Description	Price (each)	Stock
	12528653732	Holder	$18.69	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	11158650811	Vent pipe	11158650811 Vent pipe ZYL. 1-6; from 08.2018	$70.29	1
-	11158654628	Connecting line	11158654628 Connecting line from 08.2018	$64.01	1
-	11158662058	Vent pipe	11158662058 Vent pipe ZYL. 7-12; from 08.2018	$70.29	1
-	11158692192	Crank case vent valve	11158692192 Crank case vent valve ZYL. 1-6; from 08.2018	$228.52	1
-	11158692193	Crank case vent valve	11158692193 Crank case vent valve ZYL. 7-12; from 08.2018	$342.83	1
-	11128634952	Cylinder head cover	11128634952 Cylinder head cover ZYL. 7-12; from 08.2018	$763.74	1
1	11128634949	Cylinder head cover	11128634949 Cylinder head cover ZYL. 1-6; from 08.2018	$763.74	1
1	11129453761	Cylinder head cover	11129453761 Cylinder head cover ZYL. 1-6; 08.2018 - 03.2020	$763.74	1
2	11128621955	Profile seal, cylinder head cover	11128621955 Profile seal, cylinder head cover ZYL. 1-6	$59.37	1
3	11129453764	Cylinder head cover	11129453764 Cylinder head cover ZYL. 7-12; 08.2018 - 03.2020	$763.74	1
4	11128621958	Profile seal, cylinder head cover	11128621958 Profile seal, cylinder head cover ZYL. 7-12	$59.37	1
5	11128636401	Profile-gasket	11128636401 Profile-gasket	$12.44	2
6	11127599009	Sealing cap, oil filler neck	11127599009 Sealing cap, oil filler neck	$99.61	1
7	11519908732	Hexalobular socket screw	11519908732 Hexalobular socket screw M6X30	$2.57	47
8	7119904525	Hex Bolt with washer	7119904525 Hex Bolt with washer M6X40 ZNNIV SI	$1.97	2
9	13627633958	Camshaft sensor	13627633958 Camshaft sensor	$194.09	4
10	13628658854	O-ring	13628658854 O-ring 18,2X2,5	$5.53	4
11	7119907463	Hexalobular socket screw	7119907463 Hexalobular socket screw M6X16-ZNNIV SI	$1.22	4
12	7119908284	Hexalobular socket screw	7119908284 Hexalobular socket screw BM8X20-8.8-ZNS3	$1.48	1
13	12528653732	Holder	12528653732 Holder	$18.69	1
