Coolant lines of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

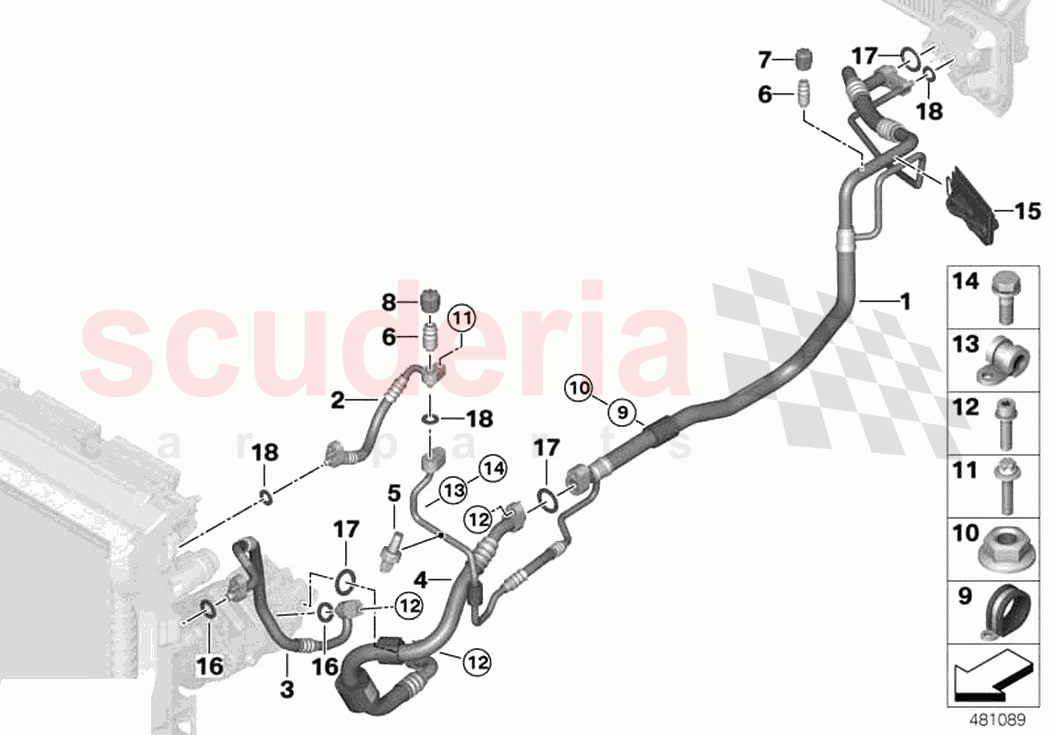

Rolls Royce Phantom RR11(2017-2023) - Coolant lines

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64509351496	Refrigerant line, double pipe	Enquire	To Order
	64509351497	Refrigerant line, double pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509365395	Coolant pipe	Enquire	To Order
	64509351500	Coolant pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509351492	Pressure hose, compressor-condenser	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509351503	Suction pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64539323658	Pressure sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64536922944	Valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64538387437	Sealing cap, suction line	Enquire	To Order
	7149287978	Sealing cap, suction line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64538387438	Sealing cap, pressure line	Enquire	To Order
	7149287979	Sealing cap, pressure line	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149351502	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34506859776	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119908428	Hexalobular socket screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904835	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12141305028	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905399	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509351506	Grommet, air cond. lines	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64539284018	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64539284019	Gasket ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64539284020	Gasket ring	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	64509351496	Refrigerant line, double pipe	64509351496 Refrigerant line, double pipe R134A	-	1	Enquire
01	64509351497	Refrigerant line, double pipe	64509351497 Refrigerant line, double pipe R1234YF	-	1	Enquire
02	64509365395	Coolant pipe	64509365395 Coolant pipe R134A	-	1	Enquire
02	64509351500	Coolant pipe	64509351500 Coolant pipe R1234YF	-	1	Enquire
03	64509351492	Pressure hose, compressor-condenser	64509351492 Pressure hose, compressor-condenser	-	1	Enquire
04	64509351503	Suction pipe	64509351503 Suction pipe	-	1	Enquire
05	64539323658	Pressure sensor	64539323658 Pressure sensor	-	1	Enquire
06	64536922944	Valve	64536922944 Valve R134A/R1234YF	-	2	Enquire
07	64538387437	Sealing cap, suction line	64538387437 Sealing cap, suction line R134A	-	1	Enquire
07	7149287978	Sealing cap, suction line	7149287978 Sealing cap, suction line R1234YF	-	1	Enquire
08	64538387438	Sealing cap, pressure line	64538387438 Sealing cap, pressure line R134A	-	1	Enquire
08	7149287979	Sealing cap, pressure line	7149287979 Sealing cap, pressure line R1234YF	-	1	Enquire
09	7149351502	Clamp	7149351502 Clamp D=32MM	-	1	Enquire
10	34506859776	Hex nut	34506859776 Hex nut M6-8-SC-ZNNIV S	-	1	Enquire
11	7119908428	Hexalobular socket screw	7119908428 Hexalobular socket screw BM6 X 25	-	3	Enquire
12	7129904835	ISA screw	7129904835 ISA screw M8X30-U1-8.8	-	1	Enquire
13	12141305028	Clamp	12141305028 Clamp D=10/6,4	-	1	Enquire
14	7119905399	Hex Bolt with washer	7119905399 Hex Bolt with washer M6X18-U1	-	1	Enquire
15	64509351506	Grommet, air cond. lines	64509351506 Grommet, air cond. lines	-	1	Enquire
16	64539284018	Gasket ring	64539284018 Gasket ring D=11MM	-	2	Enquire
17	64539284019	Gasket ring	64539284019 Gasket ring D=17MM	-	4	Enquire
18	64539284020	Gasket ring	64539284020 Gasket ring D=8MM	-	4	Enquire
