Air outlet of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

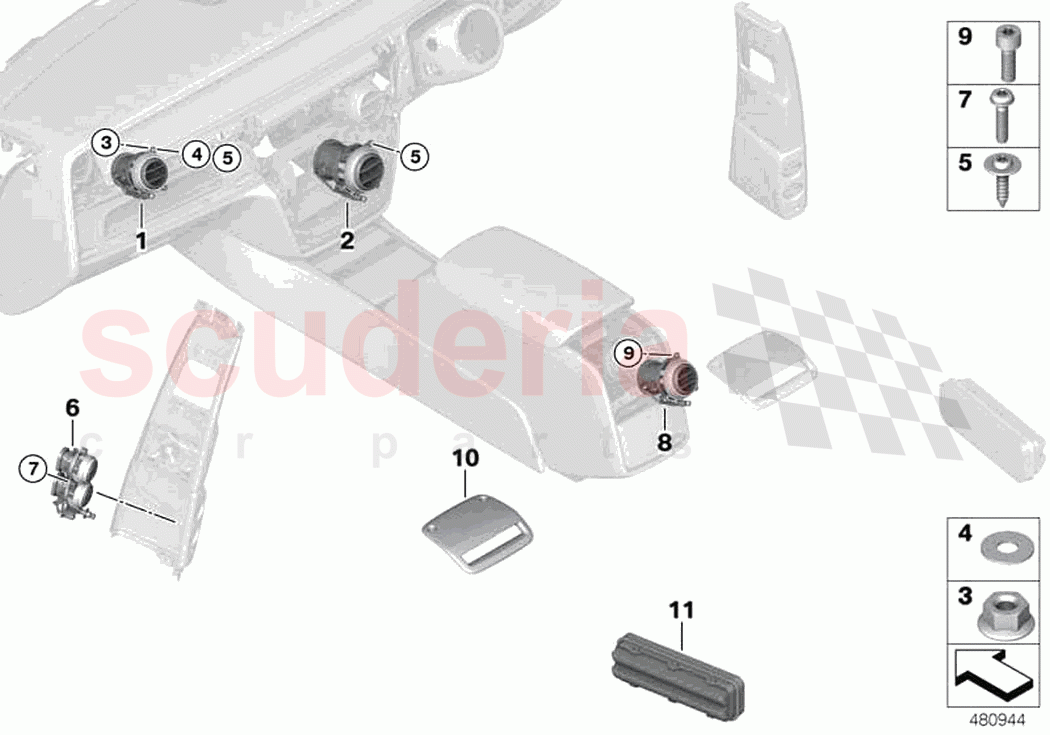

Rolls Royce Phantom RR11(2017-2023) - Air outlet

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	64229377721	Fresh air grille, left	Enquire	To Order
	64225A21E05	Fresh air grille, left	Enquire	To Order
	64225A21E03	Fresh air grille, left	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	64229364051	Fresh air grille centre left	Enquire	To Order
	64225A21E13	Fresh air grille centre left	Enquire	To Order
	64225A21E11	Fresh air grille centre left	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	11119127241	Hex nut with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904208	Washer	Enquire	To Order
	7119904207	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149197038	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64227406600	Fresh air grille B-pillar	Enquire	To Order
	64225A21E10	Fresh air grille B-pillar	Enquire	To Order
	64225A21E09	Fresh air grille B-pillar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129907551	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64229347987	Fresh air grille, left	Enquire	To Order
	64225A21E21	Fresh air grille, left	Enquire	To Order
	64225A21E17	Fresh air grille, left	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7129905000	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51477220645	Trim footwell air outlet rear	Enquire	To Order
	51477245424	Trim footwell air outlet rear	Enquire	To Order
	51477245425	Trim footwell air outlet rear	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	64229303806	Rear ventilation	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	64229377721	Fresh air grille, left	64229377721 Fresh air grille, left	-	1	Enquire
01	64225A21E05	Fresh air grille, left	64225A21E05 Fresh air grille, left BLACK	-	1	Enquire
01	64225A21E03	Fresh air grille, left	64225A21E03 Fresh air grille, left GOLD	-	1	Enquire
01	64229377722	Fresh air grille, right	64229377722 Fresh air grille, right	-	1	Enquire
01	64225A21E06	Fresh air grille, right	64225A21E06 Fresh air grille, right BLACK	-	1	Enquire
01	64225A21E04	Fresh air grille, right	64225A21E04 Fresh air grille, right GOLD	-	1	Enquire
02	64229364051	Fresh air grille centre left	64229364051 Fresh air grille centre left	-	1	Enquire
02	64225A21E13	Fresh air grille centre left	64225A21E13 Fresh air grille centre left BLACK	-	1	Enquire
02	64225A21E11	Fresh air grille centre left	64225A21E11 Fresh air grille centre left GOLD	-	1	Enquire
02	64229364052	Fresh air grille centre right	64229364052 Fresh air grille centre right	-	1	Enquire
02	64225A21E14	Fresh air grille centre right	64225A21E14 Fresh air grille centre right BLACK	-	1	Enquire
02	64225A21E12	Fresh air grille centre right	64225A21E12 Fresh air grille centre right GOLD	-	1	Enquire
03	11119127241	Hex nut with flange	11119127241 Hex nut with flange M4	-	6	Enquire
04	7119904208	Washer	7119904208 Washer 4-200 HV-ZNFE; from 06.2007	-	6	Enquire
04	7119904207	Washer	7119904207 Washer 4-200 HV-ZNS3	-	6	Enquire
05	7149197038	Fillister head screw	7149197038 Fillister head screw DELTA PT4X16	-	8	Enquire
06	64227406600	Fresh air grille B-pillar	64227406600 Fresh air grille B-pillar	-	2	Enquire
06	64225A21E10	Fresh air grille B-pillar	64225A21E10 Fresh air grille B-pillar BLACK	-	2	Enquire
06	64225A21E09	Fresh air grille B-pillar	64225A21E09 Fresh air grille B-pillar GOLD	-	2	Enquire
07	7129907551	Screw	7129907551 Screw 4X16	-	8	Enquire
08	64229347987	Fresh air grille, left	64229347987 Fresh air grille, left	-	1	Enquire
08	64225A21E21	Fresh air grille, left	64225A21E21 Fresh air grille, left BLACK	-	1	Enquire
08	64225A21E17	Fresh air grille, left	64225A21E17 Fresh air grille, left GOLD	-	2	Enquire
08	64229347988	Fresh air grille, right	64229347988 Fresh air grille, right	-	1	Enquire
08	64225A21E22	Fresh air grille, right	64225A21E22 Fresh air grille, right BLACK	-	1	Enquire
08	64225A21E18	Fresh air grille, right	64225A21E18 Fresh air grille, right GOLD	-	1	Enquire
09	7129905000	Torx bolt	7129905000 Torx bolt M4X12-A2-70	-	6	Enquire
10	51477220645	Trim footwell air outlet rear	51477220645 Trim footwell air outlet rear BLACK	-	2	Enquire
10	51477245424	Trim footwell air outlet rear	51477245424 Trim footwell air outlet rear CREAMBEIGE	-	2	Enquire
10	51477245425	Trim footwell air outlet rear	51477245425 Trim footwell air outlet rear HORIZON GREY	-	2	Enquire
10	51477267562	Trim footwell air outlet rear	51477267562 Trim footwell air outlet rear NEUTRAL	-	2	Enquire
10	51477488754	Trim footwell air outlet rear	51477488754 Trim footwell air outlet rear CHROM	-	2	Enquire
11	64229303806	Rear ventilation	64229303806 Rear ventilation	-	2	Enquire
