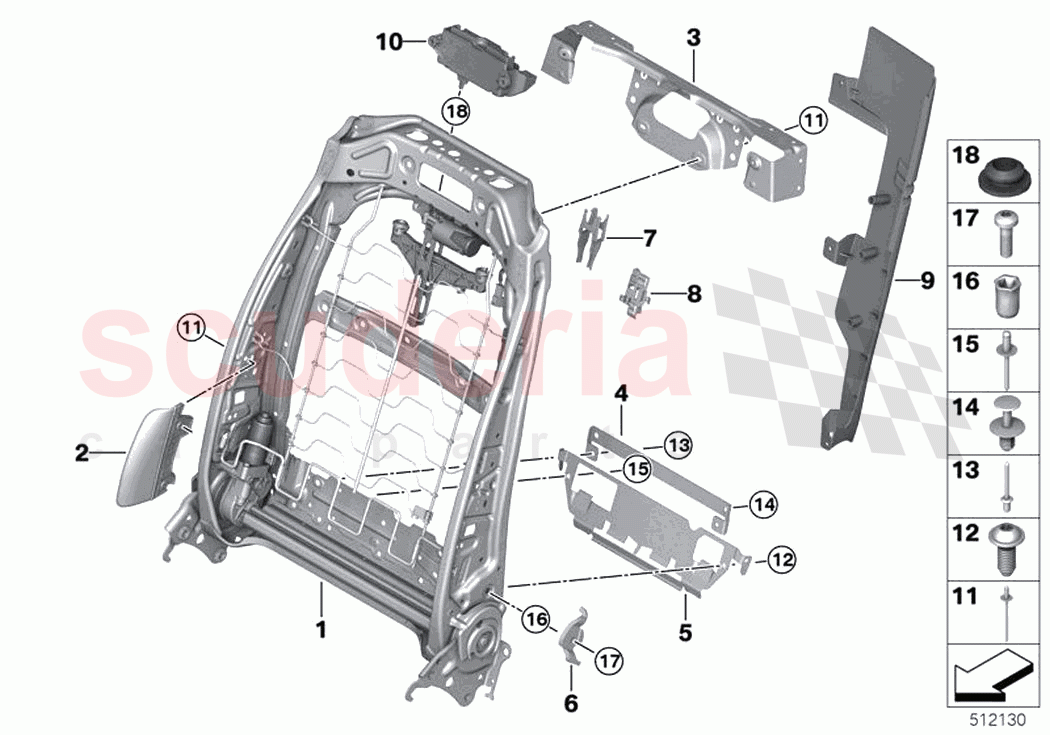

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52107308917	Carrier plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52108495448	Bracket, bottom	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107310145	Attachment strip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107404879	Clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61139258261	Plug-in connection bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129908078	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147216152	Blind rivet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51471911992	Expanding rivet	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	52107042164	Blind rivet	52107042164 Blind rivet 4,0X10	-	18	Enquire
-	7147132311	Blind rivet nut, flat headed	7147132311 Blind rivet nut, flat headed M6	-	4	Enquire
-	7147265827	Blind rivet	7147265827 Blind rivet	-	4	Enquire
-	7149194839	Screw torx drive	7149194839 Screw torx drive M6 X 20	-	4	Enquire
01	52107470641	Backrest frame, electrical	52107470641 Backrest frame, electrical	-	2	Enquire
01	52107457276	Backrest frame, electrical	52107457276 Backrest frame, electrical	-	2	Enquire
02	52107312905	Left support	52107312905 Left support	-	2	Enquire
02	52107312906	Right support	52107312906 Right support	-	2	Enquire
03	52107308917	Carrier plate	52107308917 Carrier plate	-	1	Enquire
04	52108495448	Bracket, bottom	52108495448 Bracket, bottom	-	1	Enquire
05	52107310145	Attachment strip	52107310145 Attachment strip	-	2	Enquire
06	52107355783	Stopper left	52107355783 Stopper left	-	2	Enquire
06	52107355784	Stopper right	52107355784 Stopper right	-	2	Enquire
07	52107404879	Clip	52107404879 Clip	-	2	Enquire
08	61139258261	Plug-in connection bracket	61139258261 Plug-in connection bracket	-	2	Enquire
12	7129908078	Screw	7129908078 Screw TS 5X12	-	4	Enquire
13	7147216152	Blind rivet	7147216152 Blind rivet AL-A2	-	2	Enquire
14	51471911992	Expanding rivet	51471911992 Expanding rivet D = 8MM	-	4	Enquire
