Seat front rear panel II of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

Rolls Royce Phantom RR11(2017-2023) - Seat front rear panel II

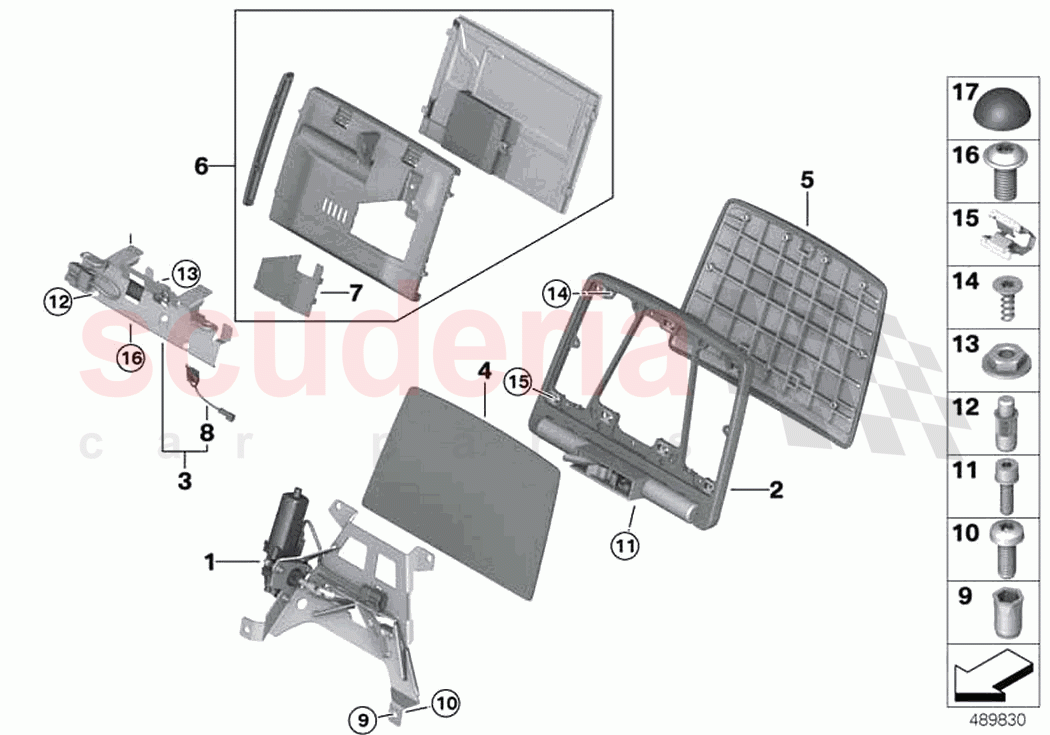

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52107423462	Picnic table drive	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52109459839	Frame, folding table	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52105A01690	Drive rear compartment monitor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107461712	Trim front wood	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52107461714	Trim rear side wood	Enquire	To Order
	52107462185	Trim rear side leather	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52109479612	Monitor with trims	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52109496419	Cover monitor	Enquire	To Order
	52107491126	Cover monitor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52109495817	Microswitch RSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147132311	Blind rivet nut, flat headed	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147131792	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119903052	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11139178450	Rivet pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149177897	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147194471	screw for plastic	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52109495816	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149151777	Fillister head screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51311925433	Rubber buffer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	52109128662	Monitor with trims	52109128662 Monitor with trims from 04.2019	-	2	Enquire
01	52107423462	Picnic table drive	52107423462 Picnic table drive	-	2	Enquire
02	52109459839	Frame, folding table	52109459839 Frame, folding table	-	2	Enquire
03	52105A01690	Drive rear compartment monitor	52105A01690 Drive rear compartment monitor from 04.2019	-	2	Enquire
04	52107461712	Trim front wood	52107461712 Trim front wood QUOTE VENEER; to 04.2019	-	2	Enquire
05	52107461714	Trim rear side wood	52107461714 Trim rear side wood QUOTE VENEER; to 04.2019	-	2	Enquire
05	52107462185	Trim rear side leather	52107462185 Trim rear side leather COLOUR NEUTRAL	-	2	Enquire
06	52109479612	Monitor with trims	52109479612 Monitor with trims from 04.2019	-	2	Enquire
07	52109496419	Cover monitor	52109496419 Cover monitor to 04.2019	-	2	Enquire
07	52107491126	Cover monitor	52107491126 Cover monitor from 04.2019	-	2	Enquire
08	52109495817	Microswitch RSE	52109495817 Microswitch RSE	-	1	Enquire
09	7147132311	Blind rivet nut, flat headed	7147132311 Blind rivet nut, flat headed M6	-	8	Enquire
10	7147131792	Fillister head screw	7147131792 Fillister head screw M6X16	-	8	Enquire
11	7119903052	Fillister head screw	7119903052 Fillister head screw M5X20-8.8-ZNNIV	-	8	Enquire
12	11139178450	Rivet pin	11139178450 Rivet pin M6X6,3	-	6	Enquire
13	7149177897	Hex nut	7149177897 Hex nut M6-Z1	-	6	Enquire
14	7147194471	screw for plastic	7147194471 screw for plastic TS5X12-ZNS3	-	18	Enquire
15	52109495816	Clamp	52109495816 Clamp	-	7	Enquire
16	7149151777	Fillister head screw with collar	7149151777 Fillister head screw with collar	-	16	Enquire
17	51311925433	Rubber buffer	51311925433 Rubber buffer D = 11.1	-	2	Enquire
