Charge air cooler of Rolls Royce Rolls Royce Phantom RR11(2017-2023)

View All

Rolls Royce Phantom RR11(2017-2023) - Charge air cooler

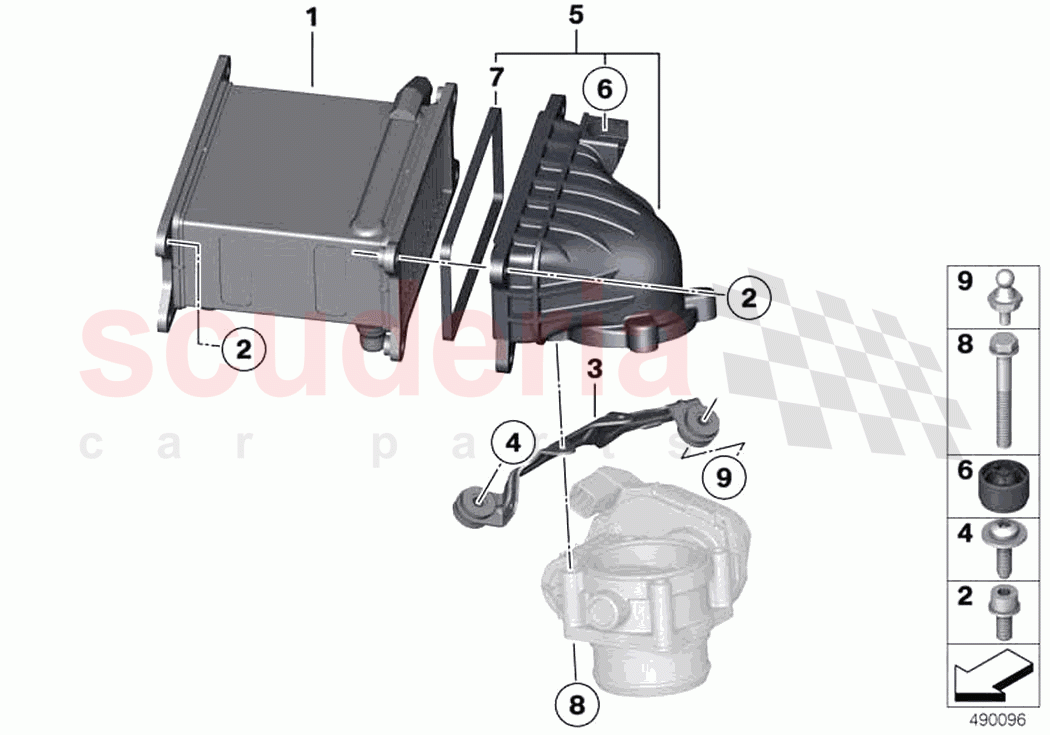

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17517566391	Charge-air cooler	Enquire	To Order
	17517566392	Charge-air cooler	Enquire	To Order
	17519470130	Charge-air cooler	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7119905182	Fillister head screw	Enquire	To Order
	11617574307	Oval head screw with O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17517566396	Bracket, charge-air cooler	Enquire	To Order
	17518695450	Bracket, charge-air cooler	Enquire	To Order
	17519796608	Bracket, charge-air cooler	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	17117594307	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17517578864	Air channel	Enquire	To Order
	17518647964	Air channel	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13717588501	Rubber buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11617561009	Profile-gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904526	Hex Bolt with washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	7149362188	Ball pin	7149362188 Ball pin from 02.2018	-	1	Enquire
01	17517566391	Charge-air cooler	17517566391 Charge-air cooler 07-Dec	-	1	Enquire
01	17517566392	Charge-air cooler	17517566392 Charge-air cooler 01-Jun	-	1	Enquire
01	17519470130	Charge-air cooler	17519470130 Charge-air cooler CYL. 1-6	-	1	Enquire
01	17519480566	Charge-air cooler	17519480566 Charge-air cooler CYL. 7-12	-	1	Enquire
02	7119905182	Fillister head screw	7119905182 Fillister head screw M6X22	-	16	Enquire
02	11617574307	Oval head screw with O-ring	11617574307 Oval head screw with O-ring M6X25	-	12	Enquire
03	17517566396	Bracket, charge-air cooler	17517566396 Bracket, charge-air cooler 07-Dec; from 02.2018	-	1	Enquire
03	17518695450	Bracket, charge-air cooler	17518695450 Bracket, charge-air cooler CYL.7-12; from 02.2018	-	1	Enquire
03	17519796608	Bracket, charge-air cooler	17519796608 Bracket, charge-air cooler CYL.7-12; from 02.2018	-	1	Enquire
03	17517566397	Bracket, charge-air cooler	17517566397 Bracket, charge-air cooler 01-Jun; from 02.2018	-	1	Enquire
03	17518695449	Bracket, charge-air cooler	17518695449 Bracket, charge-air cooler CYL.1-6; from 02.2018	-	1	Enquire
04	17117594307	ISA screw	17117594307 ISA screw M6X27; from 02.2018	-	4	Enquire
05	17517578864	Air channel	17517578864 Air channel 01-Jun	-	1	Enquire
05	17518647964	Air channel	17518647964 Air channel 07-Dec	-	1	Enquire
06	13717588501	Rubber buffer	13717588501 Rubber buffer	-	2	Enquire
07	11617561009	Profile-gasket	11617561009 Profile-gasket	-	2	Enquire
08	7119904526	Hex Bolt with washer	7119904526 Hex Bolt with washer M6X55-Z1	-	8	Enquire
