Find Your Part

View All

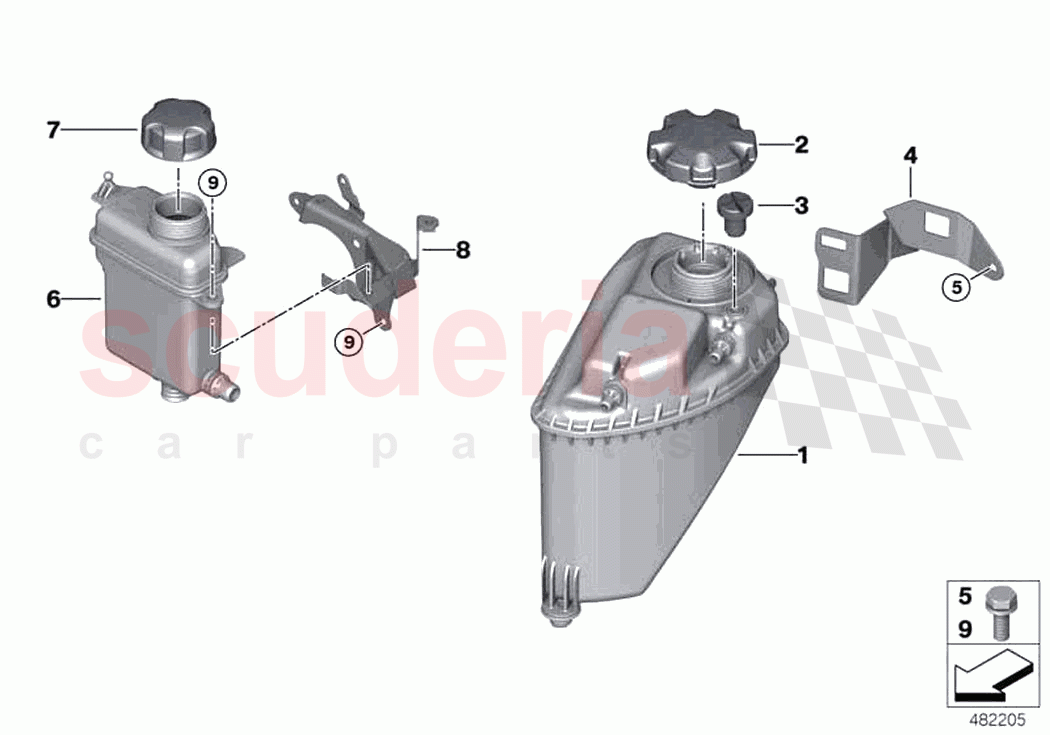

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17138689765	Expansion tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17117639021	Screw cap for expansion tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11537793373	Vent screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17138662890	Bracket expansion tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904524	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17138671387	Expansion tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17137581923	Bracket expansion tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119902937	Hex Bolt	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	17138689765	Expansion tank	17138689765 Expansion tank	-	1	Enquire
02	17117639021	Screw cap for expansion tank	17117639021 Screw cap for expansion tank	-	1	Enquire
03	11537793373	Vent screw	11537793373 Vent screw M10	-	1	Enquire
04	17138662890	Bracket expansion tank	17138662890 Bracket expansion tank	-	1	Enquire
05	7119904524	Hex Bolt with washer	7119904524 Hex Bolt with washer M6X16-U1-8.8	-	2	Enquire
06	17138671387	Expansion tank	17138671387 Expansion tank	-	1	Enquire
07	17117639024	Cover lid	17117639024 Cover lid from 01.2023	-	1	Enquire
07	17135A1BD89	Screw plug expansion tank	17135A1BD89 Screw plug expansion tank	-	1	Enquire
08	17137581923	Bracket expansion tank	17137581923 Bracket expansion tank	-	1	Enquire
09	7119902937	Hex Bolt	7119902937 Hex Bolt M6X15-U1-8.8	-	4	Enquire
