Name: Bonnet closing system
Rating: 5.0 (1 reviews)

View All

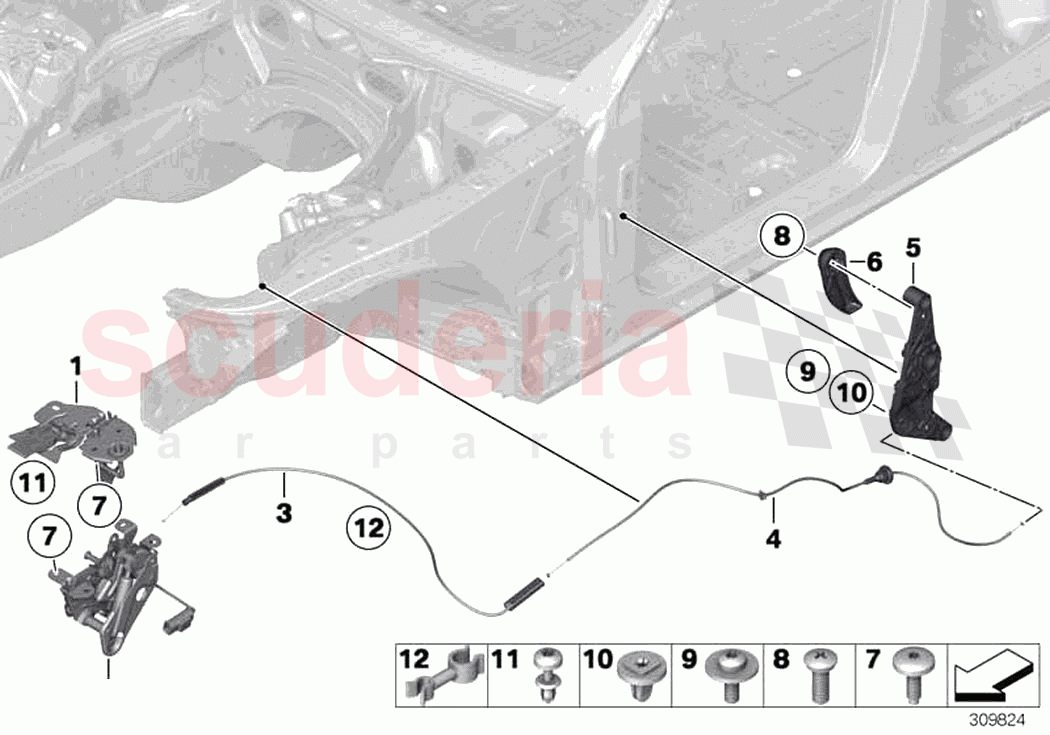

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51237198452	Upper part of hood lock	$194.67	To Order

Photo	Part No	Description	Price (each)	Stock
	51237184933	Lower part of hood lock	$446.87	To Order

Photo	Part No	Description	Price (each)	Stock
	51237200016	Bowden cable, front	$90.80	To Order

Photo	Part No	Description	Price (each)	Stock
	51237200015	Bowden cable, bonnet, rear	$82.58	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	7147263759	Oval-head screw with washer	$1.29	To Order

Photo	Part No	Description	Price (each)	Stock
	7146959892	Phillips head screw for plastic material	$0.60	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905220	Screw	$2.08	To Order

Photo	Part No	Description	Price (each)	Stock
	65138387414	Expanding nut	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	51168197908	Expanding rivet	$0.45	To Order

Photo	Part No	Description	Price (each)	Stock
	13907532296	Spacer clip	$4.91	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51237198452	Upper part of hood lock	51237198452 Upper part of hood lock	$194.67	1
2	51237184933	Lower part of hood lock	51237184933 Lower part of hood lock	$446.87	1
3	51237200016	Bowden cable, front	51237200016 Bowden cable, front	$90.80	1
4	51237200015	Bowden cable, bonnet, rear	51237200015 Bowden cable, bonnet, rear	$82.58	1
5	51239114002	Holder	51239114002 Holder	$18.89	1
5	51239114003	Holder	51239114003 Holder	$24.39	1
6	51239113984	Lever	51239113984 Lever from 04.2010	$35.20	1
6	51237271154	Lever	51237271154 Lever to 04.2010	$22.62	1
6	51239114001	Lever	51239114001 Lever from 04.2010	$35.20	1
6	51237271155	Lever	51237271155 Lever to 04.2010	$16.98	1
7	7147263759	Oval-head screw with washer	7147263759 Oval-head screw with washer ISA M6X21	$1.29	7
8	7146959892	Phillips head screw for plastic material	7146959892 Phillips head screw for plastic material TS 5X13	$0.60	1
9	7129905220	Screw	7129905220 Screw TS5X16-ZNS3	$2.08	3
10	65138387414	Expanding nut	65138387414 Expanding nut 7X7 MM	$0.66	3
11	51168197908	Expanding rivet	51168197908 Expanding rivet	$0.45	2
12	13907532296	Spacer clip	13907532296 Spacer clip	$4.91	1
