Name: Sunblind
Rating: 5.0 (1 reviews)

View All

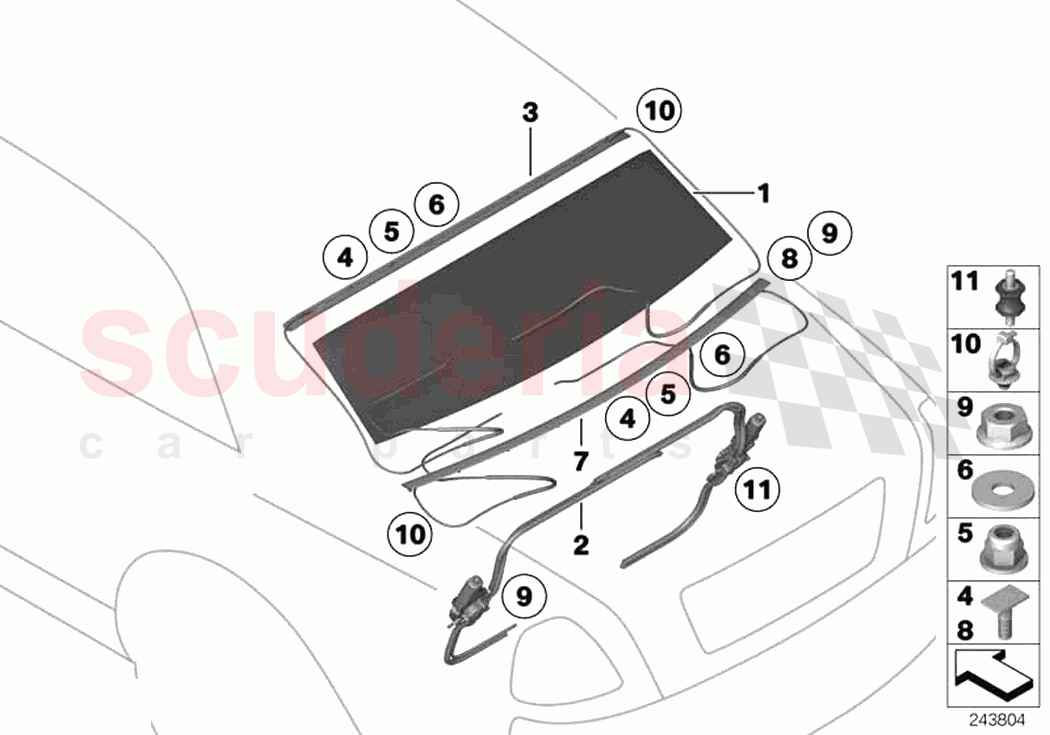

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51317218560	Curtain	$2,288.20	To Order

Photo	Part No	Description	Price (each)	Stock
	51317218481	Set, drive, curtain	$2,216.63	To Order

Photo	Part No	Description	Price (each)	Stock
	51317218482	Guide rail, curtain, top	$1,459.30	To Order

Photo	Part No	Description	Price (each)	Stock
	51467157306	Screw	$15.07	To Order

Photo	Part No	Description	Price (each)	Stock
	7146949299	Self-locking hex nut	$12.83	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906864	Washer	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	51317218483	Guide rail, curtain, bottom	$1,459.30	To Order

Photo	Part No	Description	Price (each)	Stock
	51466960205	Screw	$18.43	To Order

Photo	Part No	Description	Price (each)	Stock
	7146982788	Locknut	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	61138375988	Cable strap with bracket	$1.03	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	61131372391	Cable tie	61131372391 Cable tie L=100MM/B=2,5MM	$0.71	2
1	51317218560	Curtain	51317218560 Curtain BLACK	$2,288.20	1
2	51317218481	Set, drive, curtain	51317218481 Set, drive, curtain	$2,216.63	1
3	51317218482	Guide rail, curtain, top	51317218482 Guide rail, curtain, top	$1,459.30	1
4	51467157306	Screw	51467157306 Screw	$15.07	8
5	7146949299	Self-locking hex nut	7146949299 Self-locking hex nut M4	$12.83	-
6	7119906864	Washer	7119906864 Washer 5-200HV-ZNFE SW	$1.63	8
7	51317218483	Guide rail, curtain, bottom	51317218483 Guide rail, curtain, bottom	$1,459.30	1
8	51466960205	Screw	51466960205 Screw	$18.43	9
9	7146982788	Locknut	7146982788 Locknut M6 ZNT	$1.97	6
10	61138375988	Cable strap with bracket	61138375988 Cable strap with bracket Ø=7,9 / L=150	$1.03	3
11	11727559515	Rubber mounting	11727559515 Rubber mounting M6; from 06.2011	$17.75	6
11	32416769256	Rubber mounting	32416769256 Rubber mounting H=17; to 06.2011	$13.23	6
