Carrier centre console of Rolls Royce Rolls Royce Ghost RR4(2017-2019)

View All

Rolls Royce Ghost RR4(2017-2019) - Carrier centre console (1)

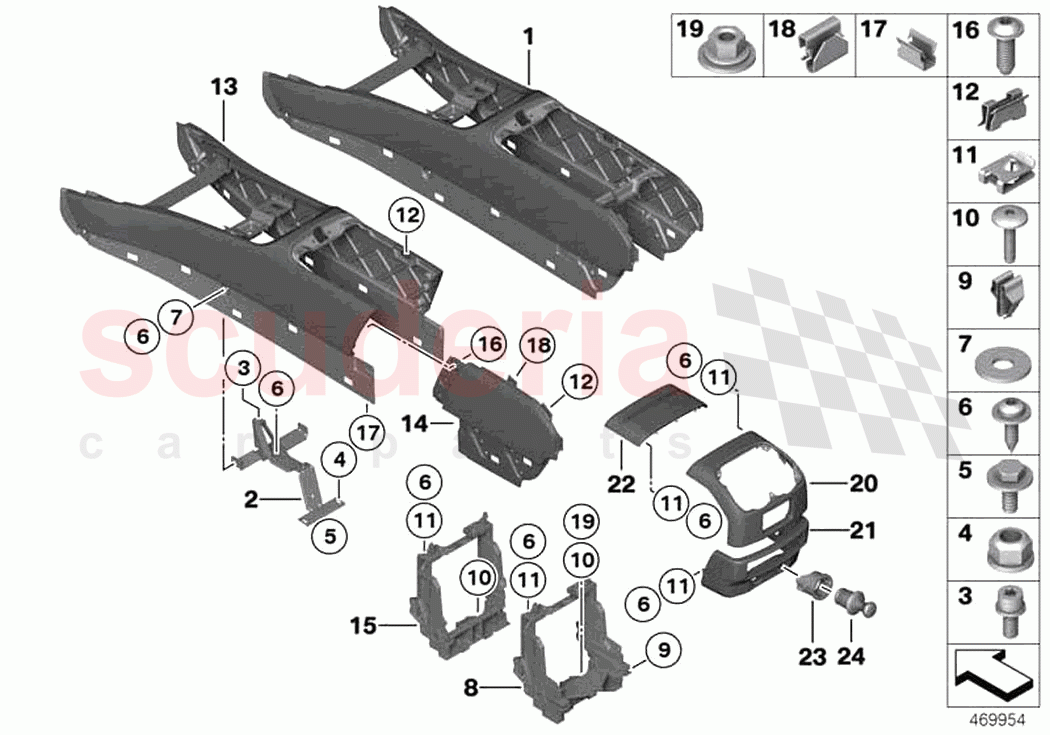

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51169224512	Carrier, centre console	Enquire	To Order
	51169287561	Carrier, centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169156910	Bracket, centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129903027	ISA screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905471	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147154525	Combi. fillister head self-tapping screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904446	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169156898	Module carrier, centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147321144	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147202808	Torx bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51457067987	C-clip nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149184240	S-clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169242862	Carrier, centre console	Enquire	To Order
	51169287562	Carrier, centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169242858	Trim, centre console, right	Enquire	To Order
	51169242860	Trim, centre console, left	Enquire	To Order
	51169287563	Trim, centre console, left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51169229034	Module carrier, centre console	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149149273	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51451857745	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64228202818	Clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146951627	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169286101	Cover centre console, rear	Enquire	To Order
	51169224521	Cover centre console, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169224517	Trim, centre console, rear bottom	Enquire	To Order
	51169286102	Trim, centre console, rear bottom	Enquire	To Order
	51169224519	Trim, centre console, rear bottom	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	51169242856	Trim, centre console, rear top	Enquire	To Order
	51169286098	Trim, centre console, rear top	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51168222182	Illuminated ring, transparent	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169220743	Stopper plug-in socket	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	51169224512	Carrier, centre console	51169224512 Carrier, centre console COLOUR NEUTRAL; from 08.2012	-	1	Enquire
1	51169287561	Carrier, centre console	51169287561 Carrier, centre console COLOUR NEUTRAL; to 08.2012	-	1	Enquire
2	51169156910	Bracket, centre console	51169156910 Bracket, centre console	-	1	Enquire
3	7129903027	ISA screw	7129903027 ISA screw M6X14	-	1	Enquire
4	7129905471	Hex nut	7129905471 Hex nut AM6-8-ZNNIV SI	-	2	Enquire
6	7147154525	Combi. fillister head self-tapping screw	7147154525 Combi. fillister head self-tapping screw	-	18	Enquire
7	7119904446	Washer	7119904446 Washer 5-200 HV-ZNNIV	-	5	Enquire
8	51169156898	Module carrier, centre console	51169156898 Module carrier, centre console	-	1	Enquire
9	7147321144	Clamp	7147321144 Clamp	-	2	Enquire
10	7147202808	Torx bolt	7147202808 Torx bolt M6X27	-	2	Enquire
11	51457067987	C-clip nut	51457067987 C-clip nut	-	14	Enquire
12	7149184240	S-clamp	7149184240 S-clamp	-	6	Enquire
13	51169242862	Carrier, centre console	51169242862 Carrier, centre console COLOUR NEUTRAL; from 08.2012	-	1	Enquire
13	51169287562	Carrier, centre console	51169287562 Carrier, centre console COLOUR NEUTRAL; to 08.2012	-	1	Enquire
14	51169242858	Trim, centre console, right	51169242858 Trim, centre console, right COLOUR NEUTRAL; from 08.2012	-	1	Enquire
14	51169242860	Trim, centre console, left	51169242860 Trim, centre console, left COLOUR NEUTRAL; from 08.2012	-	1	Enquire
14	51169287563	Trim, centre console, left	51169287563 Trim, centre console, left COLOUR NEUTRAL; to 08.2012	-	1	Enquire
14	51169287564	Trim, centre console, right	51169287564 Trim, centre console, right COLOUR NEUTRAL; to 08.2012	-	1	Enquire
15	51169229034	Module carrier, centre console	51169229034 Module carrier, centre console	-	1	Enquire
16	7149149273	Fillister head screw	7149149273 Fillister head screw 5X14	-	6	Enquire
17	51451857745	Clamp	51451857745 Clamp	-	2	Enquire
18	64228202818	Clamp	64228202818 Clamp	-	2	Enquire
19	7146951627	Hex nut	7146951627 Hex nut M6	-	2	Enquire
20	51169286101	Cover centre console, rear	51169286101 Cover centre console, rear COLOUR NEUTRAL; to 08.2012	-	1	Enquire
20	51169224521	Cover centre console, rear	51169224521 Cover centre console, rear COLOUR NEUTRAL	-	1	Enquire
21	51169224517	Trim, centre console, rear bottom	51169224517 Trim, centre console, rear bottom COLOUR NEUTRAL	-	1	Enquire
21	51169286102	Trim, centre console, rear bottom	51169286102 Trim, centre console, rear bottom COLOUR NEUTRAL; 08.2012 - 08.2013	-	1	Enquire
21	51169224519	Trim, centre console, rear bottom	51169224519 Trim, centre console, rear bottom COLOUR NEUTRAL; to 08.2013	-	1	Enquire
21	51169286100	Trim, centre console, rear bottom	51169286100 Trim, centre console, rear bottom COLOUR NEUTRAL; to 08.2013	-	1	Enquire
22	51169242856	Trim, centre console, rear top	51169242856 Trim, centre console, rear top COLOUR NEUTRAL	-	1	Enquire
22	51169286098	Trim, centre console, rear top	51169286098 Trim, centre console, rear top COLOUR NEUTRAL	-	1	Enquire
23	51168222182	Illuminated ring, transparent	51168222182 Illuminated ring, transparent	-	1	Enquire
24	51169220743	Stopper plug-in socket	51169220743 Stopper plug-in socket	-	1	Enquire
