Name: Underbody panelling, rear
Rating: 4.1 (1 reviews)

View All

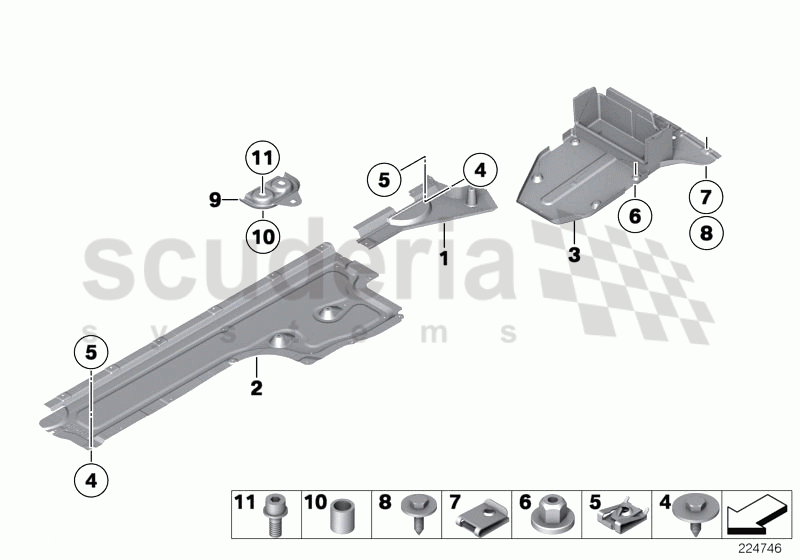

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	51757201175	Underbody panelling, left, ghost	$428.76	To Order
	51757201176	Underside Panelling, Right	$428.76	To Order

Photo	Part No	Description	Price (each)	Stock
	51757201490	Covering, rear centre	$444.58	To Order

Photo	Part No	Description	Price (each)	Stock
	7149126886	Hex Bolt	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	51717065773	C-clip nut	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	7147336362	Plastic nut for coarse threaded pin	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904225	Body nut	$1.22	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	51757201181	Covering tank, left	51757201181 Covering tank, left	$132.44	-
1	51757201182	Covering tank, right	51757201182 Covering tank, right	$132.44	-
2	51757201175	Underbody panelling, left, ghost	51757201175 Underbody panelling, left, ghost	$428.76	-
2	51757201176	Underside Panelling, Right	51757201176 Underside Panelling, Right	$428.76	-
3	51757201490	Covering, rear centre	51757201490 Covering, rear centre	$444.58	-
4	7149126886	Hex Bolt	7149126886 Hex Bolt L= 17MM	$1.14	-
5	51717065773	C-clip nut	51717065773 C-clip nut	$1.05	-
6	7147336362	Plastic nut for coarse threaded pin	7147336362 Plastic nut for coarse threaded pin	$1.69	-
7	7129904225	Body nut	7129904225 Body nut ST 4,8-6-ZNS3	$1.22	-
8	7147129161	Hex head screw	7147129161 Hex head screw ST 4.8X18	$1.08	-
8	7149213164	Hex Bolt	7149213164 Hex Bolt L= 20MM	$1.26	-
