Sound Insulation, Front Ii

Rolls Royce Ghost Series I (2009-2014)

Find Your Part

Rolls Royce Ghost Series I (2009-2014) - Sound insulation, front II

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
51489143597 Sound insulation A-column, left Enquire To Order
51489143598 Sound insulation A-column, right Enquire To Order
Photo Part No Description Price (each) Stock
51487247397 Sealing side panel, left Enquire To Order
51487247398 Sealing side panel right Enquire To Order
Photo Part No Description Price (each) Stock
51489143595 Sound insulating frame left Enquire To Order
51489143596 Sound insulating frame right Enquire To Order
Photo Part No Description Price (each) Stock
51489156070 Sound insulat., splash wall, upper part Enquire To Order
51489156071 Sound insulat., splash wall, upper part Enquire To Order
Photo Part No Description Price (each) Stock
7147156548 Sound insulation windshield - windscreen Enquire To Order
Photo Part No Description Price (each) Stock
51489113239 Sound insulation, heating Enquire To Order
Photo Part No Description Price (each) Stock
51489156072 Sound insulation, A-pillar, bottom right Enquire To Order
51489156073 Sound insulation A-column, left Enquire To Order
51489156074 Sound insulation, A-pillar, bottom right Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51439156078 Right LOWER B-COLUMN SOUND INSULATION Enquire To Order
51439156079 Left LOWER B-COLUMN SOUND INSULATION Enquire To Order
Photo Part No Description Price (each) Stock
51439167253 Sound insulation, A-pillar, top left Enquire To Order
51439167254 Sound insulation, A-pillar, top right Enquire To Order
51489156076 Sound insulation, A-pillar, top right Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
51487200381 SOUND INSULATING DOOR FRONT LEFT Enquire To Order
51487200382 SOUND INSULATING DOOR FRONT RIGHT Enquire To Order
Photo Part No Description Price (each) Stock
51487200433 SOUND INSULATING DOOR REAR LEFT Enquire To Order
51487200434 SOUND INSULATING DOOR REAR RIGHT Enquire To Order
Photo Part No Description Price (each) Stock
51489143410 Sound insulation, tunnel Enquire To Order
Photo Part No Description Price (each) Stock
51489167375 SOUND INSULATING TUNNEL REAR Enquire To Order
Photo Part No Description Price (each) Stock
51488126849 Push-button, grey Enquire To Order
Photo Part No Description Price (each) Stock
7147139081 Clip nut Enquire To Order
View All

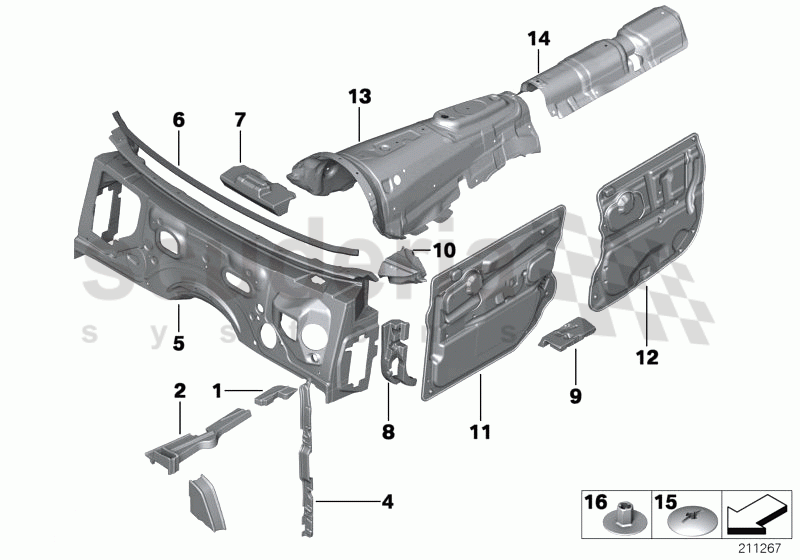

Sound insulation, front II of Rolls Royce Rolls Royce Ghost Series I (2009-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 51489143597
Sound insulation A-column, left 		- - Enquire
1 51489143598
Sound insulation A-column, right 		- - Enquire
2 51487247397
Sealing side panel, left 		- - Enquire
2 51487247398
Sealing side panel right 		- - Enquire
3 51487247399
Seal, wheel arch, left 		- - Enquire
3 51487247400
Seal, wheel arch, right 		- - Enquire
4 51489143595
Sound insulating frame left 		- - Enquire
4 51489143596
Sound insulating frame right 		- - Enquire
5 51489156070
Sound insulat., splash wall, upper part 		- - Enquire
5 51489156071
Sound insulat., splash wall, upper part 		- - Enquire
6 7147156548
Sound insulation windshield - windscreen 		- - Enquire
7 51489113239
Sound insulation, heating 		- - Enquire
8 51489156072
Sound insulation, A-pillar, bottom right 		- - Enquire
8 51489156073
Sound insulation A-column, left 		- - Enquire
8 51489156074
Sound insulation, A-pillar, bottom right 		- - Enquire
8 51489156075
Sound insulation A-column, left 		- - Enquire
9 51439156078
Right LOWER B-COLUMN SOUND INSULATION 		- - Enquire
9 51439156079
Left LOWER B-COLUMN SOUND INSULATION 		- - Enquire
10 51439167253
Sound insulation, A-pillar, top left 		- - Enquire
10 51439167254
Sound insulation, A-pillar, top right 		- - Enquire
10 51489156076
Sound insulation, A-pillar, top right 		- - Enquire
10 51489156077
Sound insulation, A-pillar, top left 		- - Enquire
11 51487200381
SOUND INSULATING DOOR FRONT LEFT 		- - Enquire
11 51487200382
SOUND INSULATING DOOR FRONT RIGHT 		- - Enquire
12 51487200433
SOUND INSULATING DOOR REAR LEFT 		- - Enquire
12 51487200434
SOUND INSULATING DOOR REAR RIGHT 		- - Enquire
13 51489143410
Sound insulation, tunnel 		- - Enquire
14 51489167375
SOUND INSULATING TUNNEL REAR 		- - Enquire
15 51488126849
Push-button, grey
GRAU 		- - Enquire
16 7147139081
Clip nut 		- - Enquire
