REAR AXLE SUPPORT/WHEEL SUSPENSION of Rolls Royce Rolls Royce Ghost Series I (2009-2014)

View All

Rolls Royce Ghost Series I (2009-2014) - REAR AXLE SUPPORT/WHEEL SUSPENSION

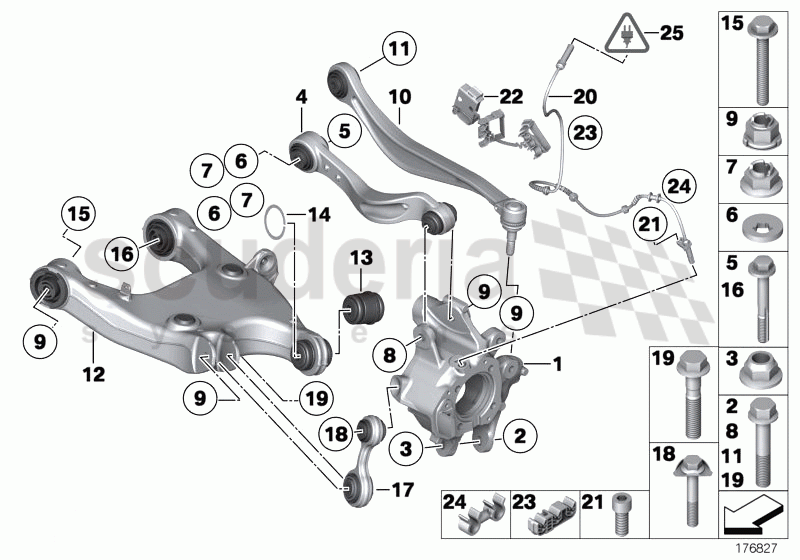

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	33326775853	Wheel carrier, rear left	Enquire	To Order
	33326775854	Wheel carrier, rear right	Enquire	To Order
	33326796497	Wheel carrier, rear left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	33306786218	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906287	Self-locking hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33324069467	Wishbone, left	Enquire	To Order
	33324069468	Right wishbone	Enquire	To Order
	33326782131	Wishbone, left	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	33326779785	Eccentric bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306786187	Eccentric flat washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106768886	Hexagon nut with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326783031	Hexagon collar screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33306787062	Combination nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326775902	Track strut with rubber mount	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906489	Hexagon screw with flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326784351	LEFT SWING PART	Enquire	To Order
	33326784352	RIGHT SWING PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326780438	Ball joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33321091687	Snap ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106786144	Hexagon collar screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326779785	Eccentric bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326775683	Integral link	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326764928	SECURING BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33326764927	Hex screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526775864	Pulse generator, DSC rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904105	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526790833	Tubing support, left	Enquire	To Order
	34526790834	Tubing support, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526783705	Tubing support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526783179	Pipe clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61133333333	Plug, see part info in 'ZI' column	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	33326775853	Wheel carrier, rear left	33326775853 Wheel carrier, rear left	-	-	Enquire
1	33326775854	Wheel carrier, rear right	33326775854 Wheel carrier, rear right	-	-	Enquire
1	33326796497	Wheel carrier, rear left	33326796497 Wheel carrier, rear left	-	-	Enquire
1	33326796498	Wheel carrier, rear right	33326796498 Wheel carrier, rear right	-	-	Enquire
2	33306786218	Hex Bolt with washer	33306786218 Hex Bolt with washer M16X118-10.9	-	-	Enquire
3	7119906287	Self-locking hex nut	7119906287 Self-locking hex nut M16X1,5-10 ZNS3	-	-	Enquire
4	33324069467	Wishbone, left	33324069467 Wishbone, left	-	-	Enquire
4	33324069468	Right wishbone	33324069468 Right wishbone	-	-	Enquire
4	33326782131	Wishbone, left	33326782131 Wishbone, left	-	-	Enquire
4	33326782132	Wishbone, right	33326782132 Wishbone, right	-	-	Enquire
5	33326779785	Eccentric bolt	33326779785 Eccentric bolt M14X105-10.9	-	-	Enquire
6	33306786187	Eccentric flat washer	33306786187 Eccentric flat washer	-	-	Enquire
7	31106768886	Hexagon nut with collar	31106768886 Hexagon nut with collar M14X1,5-10 ZNS3	-	-	Enquire
8	33326783031	Hexagon collar screw	33326783031 Hexagon collar screw M14X120-10.9	-	-	Enquire
9	33306787062	Combination nut	33306787062 Combination nut M14X1,5-10ZNNIV	-	-	Enquire
10	33326775902	Track strut with rubber mount	33326775902 Track strut with rubber mount	-	-	Enquire
11	7119906489	Hexagon screw with flange	7119906489 Hexagon screw with flange M12X1,5X67-10.9	-	-	Enquire
12	33326784351	LEFT SWING PART	33326784351 LEFT SWING PART	-	-	Enquire
12	33326784352	RIGHT SWING PART	33326784352 RIGHT SWING PART	-	-	Enquire
13	33326780438	Ball joint	33326780438 Ball joint	-	-	Enquire
14	33321091687	Snap ring	33321091687 Snap ring	-	-	Enquire
15	31106786144	Hexagon collar screw	31106786144 Hexagon collar screw M14X120-10.9-MK	-	-	Enquire
16	33326779785	Eccentric bolt	33326779785 Eccentric bolt M14X105-10.9	-	-	Enquire
17	33326775683	Integral link	33326775683 Integral link	-	-	Enquire
18	33326764928	SECURING BOLT	33326764928 SECURING BOLT M12X75-10.9	-	-	Enquire
19	33326764927	Hex screw with collar	33326764927 Hex screw with collar M14X1,5X74-10.9	-	-	Enquire
20	34526775864	Pulse generator, DSC rear	34526775864 Pulse generator, DSC rear	-	-	Enquire
21	7119904105	Fillister head screw	7119904105 Fillister head screw M6X16-8.8-ZNS3	-	-	Enquire
22	34526790833	Tubing support, left	34526790833 Tubing support, left	-	-	Enquire
22	34526790834	Tubing support, right	34526790834 Tubing support, right	-	-	Enquire
23	34526783705	Tubing support	34526783705 Tubing support	-	-	Enquire
24	34526783179	Pipe clip	34526783179 Pipe clip	-	-	Enquire
25	61133333333	Plug, see part info in 'ZI' column	61133333333 Plug, see part info in 'ZI' column	-	-	Enquire
