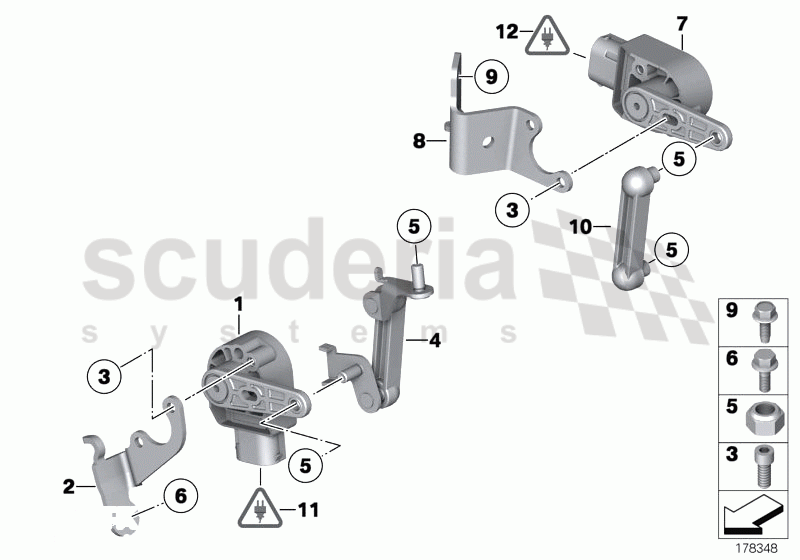

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37146788570	Ride height sensor, front left	Enquire	To Order
	37146788572	Ride height sensor, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904303	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904876	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904371	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37146788574	Level sensor, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7131025735	Screw, self tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37146752797	Regulating rod	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61133333333	Plug, see part info in 'ZI' column	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61133333333	Plug, see part info in 'ZI' column	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	37146788570	Ride height sensor, front left	37146788570 Ride height sensor, front left	-	-	Enquire
1	37146788572	Ride height sensor, front right	37146788572 Ride height sensor, front right	-	-	Enquire
2	37146781361	Bracket, level sensor, left	37146781361 Bracket, level sensor, left	-	-	Enquire
2	37146781362	Bracket, level sensor, right	37146781362 Bracket, level sensor, right	-	-	Enquire
3	7119904303	Fillister head screw	7119904303 Fillister head screw M5X10-8.8-ZNNIV	-	-	Enquire
4	37146778263	Control rod, left	37146778263 Control rod, left	-	-	Enquire
4	37146778264	Control rod, right	37146778264 Control rod, right	-	-	Enquire
5	7129904876	Hex nut	7129904876 Hex nut M6-8-ZNS3	-	-	Enquire
6	7119904371	Hex Bolt	7119904371 Hex Bolt M6X16-8.8-ZNS3	-	-	Enquire
7	37146788574	Level sensor, rear	37146788574 Level sensor, rear	-	-	Enquire
8	37146786797	Bracket, level sensor, left	37146786797 Bracket, level sensor, left	-	-	Enquire
8	37146786798	Bracket, level sensor, right	37146786798 Bracket, level sensor, right	-	-	Enquire
9	7131025735	Screw, self tapping	7131025735 Screw, self tapping M6X16MM	-	-	Enquire
10	37146752797	Regulating rod	37146752797 Regulating rod 71,5MM	-	-	Enquire
11	61133333333	Plug, see part info in 'ZI' column	61133333333 Plug, see part info in 'ZI' column	-	-	Enquire
12	61133333333	Plug, see part info in 'ZI' column	61133333333 Plug, see part info in 'ZI' column	-	-	Enquire
