Conv top comp lid mechanism of Rolls Royce Rolls Royce Dawn RR6(2017-2023)

View All

Rolls Royce Dawn RR6(2017-2023) - Conv top comp lid mechanism

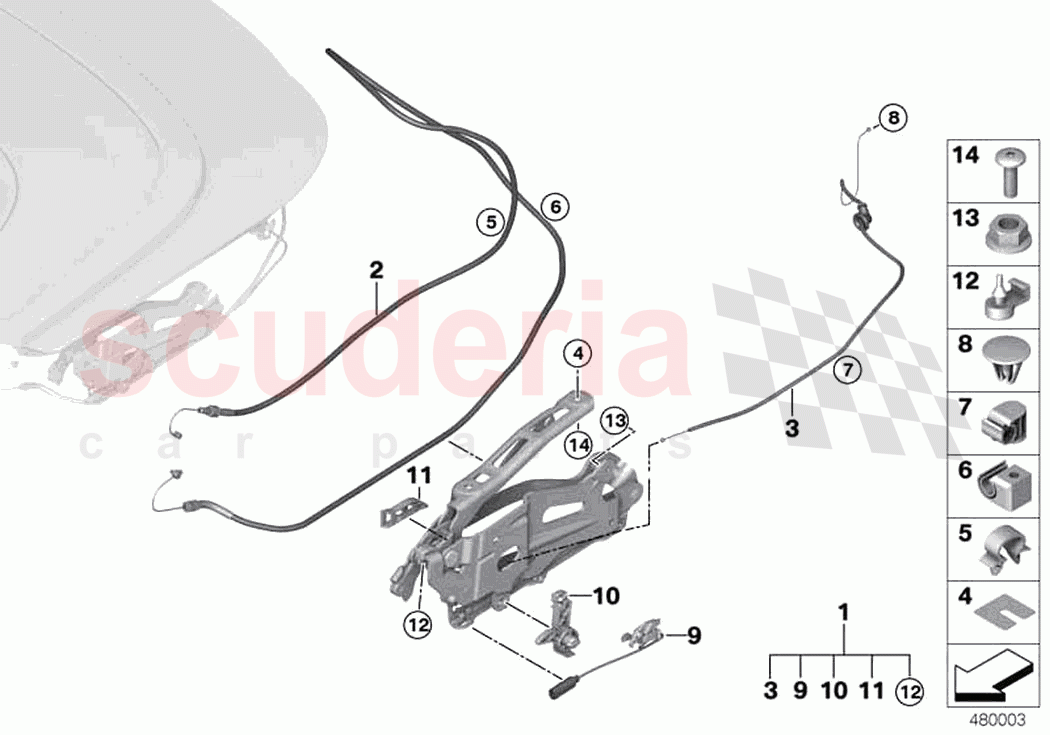

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	54347370977	Conv.-top comp.-lid mechanism, left	Enquire	To Order
	54347370978	Conv.-top comp.-lid mechanism, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51177380483	Bowden cable linkage aperture flap	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54347440987	Bowden cable, emergency unlocking	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54347439821	Spacer plate	Enquire	To Order
	54347439822	Spacer plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61138368763	Tubing support	Enquire	To Order
	64111364073	Tubing support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16131177494	Tubing support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326855500	Brake pipe bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54347129588	Emergency release button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54377228585	Microswitch coupling lock left	Enquire	To Order
	54377228586	Microswitch coupling lock right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54347454949	Lever	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54347454950	Sliding piece	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	54347454951	Bump stop	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904024	Hex nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149146607	Torx-bolt with washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	54347370977	Conv.-top comp.-lid mechanism, left	54347370977 Conv.-top comp.-lid mechanism, left	-	1	Enquire
1	54347370978	Conv.-top comp.-lid mechanism, right	54347370978 Conv.-top comp.-lid mechanism, right	-	1	Enquire
2	51177380483	Bowden cable linkage aperture flap	51177380483 Bowden cable linkage aperture flap	-	2	Enquire
3	54347440987	Bowden cable, emergency unlocking	54347440987 Bowden cable, emergency unlocking	-	2	Enquire
4	54347439821	Spacer plate	54347439821 Spacer plate 1,0 MM	-	-	Enquire
4	54347439822	Spacer plate	54347439822 Spacer plate 0,5 MM	-	-	Enquire
5	61138368763	Tubing support	61138368763 Tubing support D=10,8MM; from 09.1978	-	6	Enquire
5	64111364073	Tubing support	64111364073 Tubing support D=10,8MM	-	6	Enquire
6	16131177494	Tubing support	16131177494 Tubing support	-	5	Enquire
7	34326855500	Brake pipe bracket	34326855500 Brake pipe bracket	-	6	Enquire
8	54347129588	Emergency release button	54347129588 Emergency release button	-	2	Enquire
9	54377228585	Microswitch coupling lock left	54377228585 Microswitch coupling lock left	-	1	Enquire
9	54377228586	Microswitch coupling lock right	54377228586 Microswitch coupling lock right	-	1	Enquire
10	54347454949	Lever	54347454949 Lever	-	1	Enquire
11	54347454950	Sliding piece	54347454950 Sliding piece	-	1	Enquire
12	54347454951	Bump stop	54347454951 Bump stop	-	2	Enquire
13	7119904024	Hex nut	7119904024 Hex nut M8-ZNS3	-	6	Enquire
14	7149146607	Torx-bolt with washer	7149146607 Torx-bolt with washer ISA M8X24	-	4	Enquire
