Name: Floor panel trunk wheel housing rear
Rating: 4.7 (1 reviews)

Floor panel trunk wheel housing rear of Rolls Royce Rolls Royce Dawn RR6(2017-2023)

View All

Rolls Royce Dawn RR6(2017-2023) - Floor panel trunk wheel housing rear

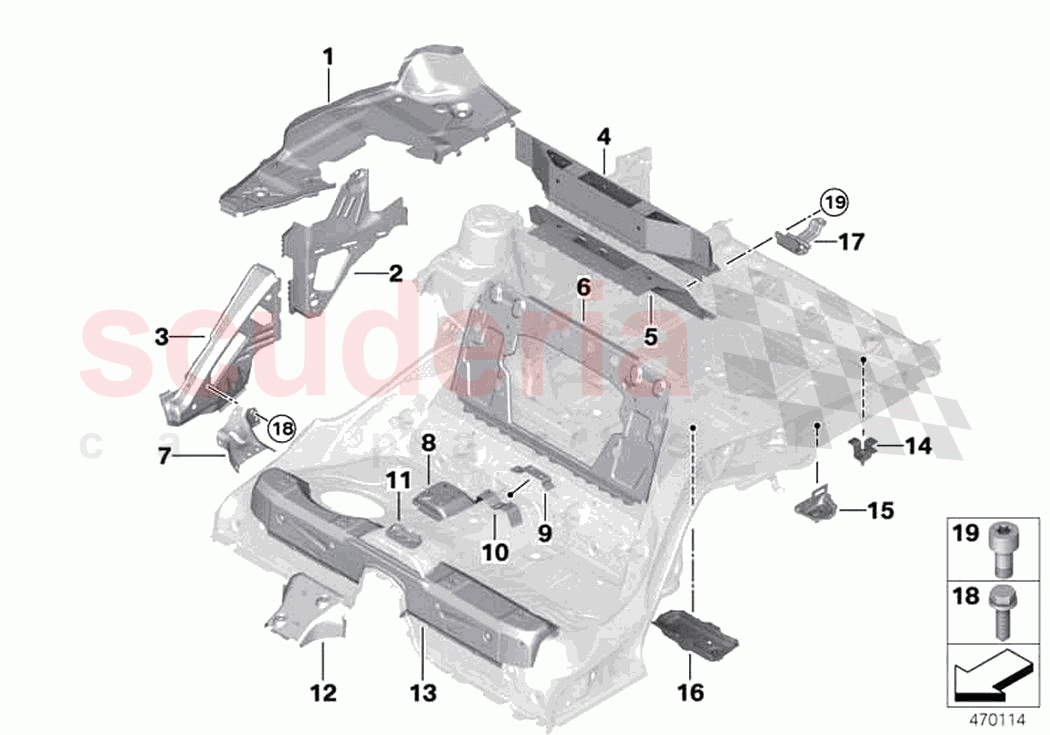

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	41007435239	Left rear inner wheelhouse	$3,948.44	To Order
	41007435240	Right rear inner wheelhouse	$3,948.44	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435247	Sealwall con.top compartment front left	$947.65	To Order
	41007435248	Sealwall con.top compartment front right	$947.65	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435249	Reinforcement column B inside left	$1,554.06	To Order
	41007435250	Reinforcement column B inside right	$1,554.06	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435217	Connection spring strut top	$2,369.07	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435355	Connection to spring strut bottom	$947.65	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435216	Partition	$1,105.55	To Order

Photo	Part No	Description	Price (each)	Stock
	51617435229	Corner reinforcement, left	$357.12	To Order
	51617435230	Corner reinforcement, right	$357.12	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435231	Holder, rear seat, rear outer left	$773.86	To Order
	41007435232	Holder, rear seat, rear outer right	$773.86	To Order

Photo	Part No	Description	Price (each)	Stock
	41007242631	Bracket, seat	$104.78	To Order

Photo	Part No	Description	Price (each)	Stock
	41127378492	Bracket, centre console	$87.86	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435213	Bracket ashtray	$694.11	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435212	Support floor panel, rear	$2,736.58	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435211	Cross-member, heel plate	$1,421.44	To Order

Photo	Part No	Description	Price (each)	Stock
	41117242625	Rear seat bench bracket	$111.62	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435221	Torsion strut holder rear left	$686.74	To Order
	41007435222	Torsion strut holder rear right	$686.74	To Order

Photo	Part No	Description	Price (each)	Stock
	41007435210	Holder torsion strut rear	$868.64	To Order

Photo	Part No	Description	Price (each)	Stock
	51177383482	Limit position rear window	$218.17	To Order

Photo	Part No	Description	Price (each)	Stock
	7119907484	Hex Bolt	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	7129905867	ISA screw	$0.91	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	41007435239	Left rear inner wheelhouse	41007435239 Left rear inner wheelhouse	$3,948.44	1
1	41007435240	Right rear inner wheelhouse	41007435240 Right rear inner wheelhouse	$3,948.44	1
2	41007435247	Sealwall con.top compartment front left	41007435247 Sealwall con.top compartment front left	$947.65	1
2	41007435248	Sealwall con.top compartment front right	41007435248 Sealwall con.top compartment front right	$947.65	1
3	41007435249	Reinforcement column B inside left	41007435249 Reinforcement column B inside left	$1,554.06	1
3	41007435250	Reinforcement column B inside right	41007435250 Reinforcement column B inside right	$1,554.06	1
4	41007435217	Connection spring strut top	41007435217 Connection spring strut top	$2,369.07	1
5	41007435355	Connection to spring strut bottom	41007435355 Connection to spring strut bottom	$947.65	1
6	41007435216	Partition	41007435216 Partition	$1,105.55	1
7	51617435229	Corner reinforcement, left	51617435229 Corner reinforcement, left	$357.12	1
7	51617435230	Corner reinforcement, right	51617435230 Corner reinforcement, right	$357.12	1
8	41007435231	Holder, rear seat, rear outer left	41007435231 Holder, rear seat, rear outer left	$773.86	1
8	41007435232	Holder, rear seat, rear outer right	41007435232 Holder, rear seat, rear outer right	$773.86	1
9	41007242631	Bracket, seat	41007242631 Bracket, seat	$104.78	1
10	41127378492	Bracket, centre console	41127378492 Bracket, centre console	$87.86	1
11	41007435213	Bracket ashtray	41007435213 Bracket ashtray	$694.11	1
12	41007435212	Support floor panel, rear	41007435212 Support floor panel, rear	$2,736.58	1
13	41007435211	Cross-member, heel plate	41007435211 Cross-member, heel plate	$1,421.44	1
14	41117242625	Rear seat bench bracket	41117242625 Rear seat bench bracket	$111.62	1
15	41007435221	Torsion strut holder rear left	41007435221 Torsion strut holder rear left	$686.74	1
15	41007435222	Torsion strut holder rear right	41007435222 Torsion strut holder rear right	$686.74	1
16	41007435210	Holder torsion strut rear	41007435210 Holder torsion strut rear	$868.64	1
17	51177383482	Limit position rear window	51177383482 Limit position rear window	$218.17	2
18	7119907484	Hex Bolt	7119907484 Hex Bolt M8X25-10.9	$1.97	16
19	7129905867	ISA screw	7129905867 ISA screw M6X12-8.8-ZNNIV	$0.91	4
