Rear Axle Support Wheel Suspension

Rolls Royce Cullinan RR31(2017-2023)

Find Your Part

Rolls Royce Cullinan RR31(2017-2023) - Rear axle support wheel suspension

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
33306871855 Carrier, left Enquire To Order
33306871856 Carrier, right Enquire To Order
Photo Part No Description Price (each) Stock
33306861143 Covering left Enquire To Order
33306861144 Covering right Enquire To Order
Photo Part No Description Price (each) Stock
7119902751 Hex nut Enquire To Order
Photo Part No Description Price (each) Stock
33326871865 Toe arm with rubber mount, left Enquire To Order
33326871866 Toe arm with rubber mount, right Enquire To Order
Photo Part No Description Price (each) Stock
33326875104 Camber link Enquire To Order
Photo Part No Description Price (each) Stock
33326883339 Wishbone, bottom, with rubber mount left Enquire To Order
33326883340 Wishbone, bottom,with rubber mount right Enquire To Order
Photo Part No Description Price (each) Stock
33326867537 Guide arm, left Enquire To Order
33326867538 Guide arm, right Enquire To Order
Photo Part No Description Price (each) Stock
33326871879 Trailing arm with rubber mount Enquire To Order
Photo Part No Description Price (each) Stock
33306861944 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
7119906489 Hexagon screw with flange Enquire To Order
Photo Part No Description Price (each) Stock
33306874090 Eccentric bolt Enquire To Order
Photo Part No Description Price (each) Stock
33306874239 Eccentric washer Enquire To Order
Photo Part No Description Price (each) Stock
31106890194 Hexagon nut with collar Enquire To Order
Photo Part No Description Price (each) Stock
7119906292 Hex Bolt Enquire To Order
Photo Part No Description Price (each) Stock
37106789678 Hex nut with flange Enquire To Order
Photo Part No Description Price (each) Stock
33306891268 Multi-purpose bolt Enquire To Order
Photo Part No Description Price (each) Stock
7119908024 Torx-bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
33306867271 Hex Bolt with washer Enquire To Order
Photo Part No Description Price (each) Stock
33306787062 Combination nut Enquire To Order
Photo Part No Description Price (each) Stock
34526886993 Holder, wheel speed sensor, left Enquire To Order
34526886994 Holder, wheel speed sensor, right Enquire To Order
Photo Part No Description Price (each) Stock
34526885831 Wheel-speed sensor Enquire To Order
Photo Part No Description Price (each) Stock
34509804151 ASA screw, thread-forming Enquire To Order
Photo Part No Description Price (each) Stock
34526869189 Holder, wheel speed sensor, left Enquire To Order
34526869190 Holder, wheel speed sensor, right Enquire To Order
Photo Part No Description Price (each) Stock
34526869191 Bracket, left Enquire To Order
34526869192 Bracket, right Enquire To Order
Photo Part No Description Price (each) Stock
7147169847 Plastic cap nut with washer Enquire To Order
Photo Part No Description Price (each) Stock
34526878437 Bracket, left Enquire To Order
34526878438 Bracket, right Enquire To Order
View All

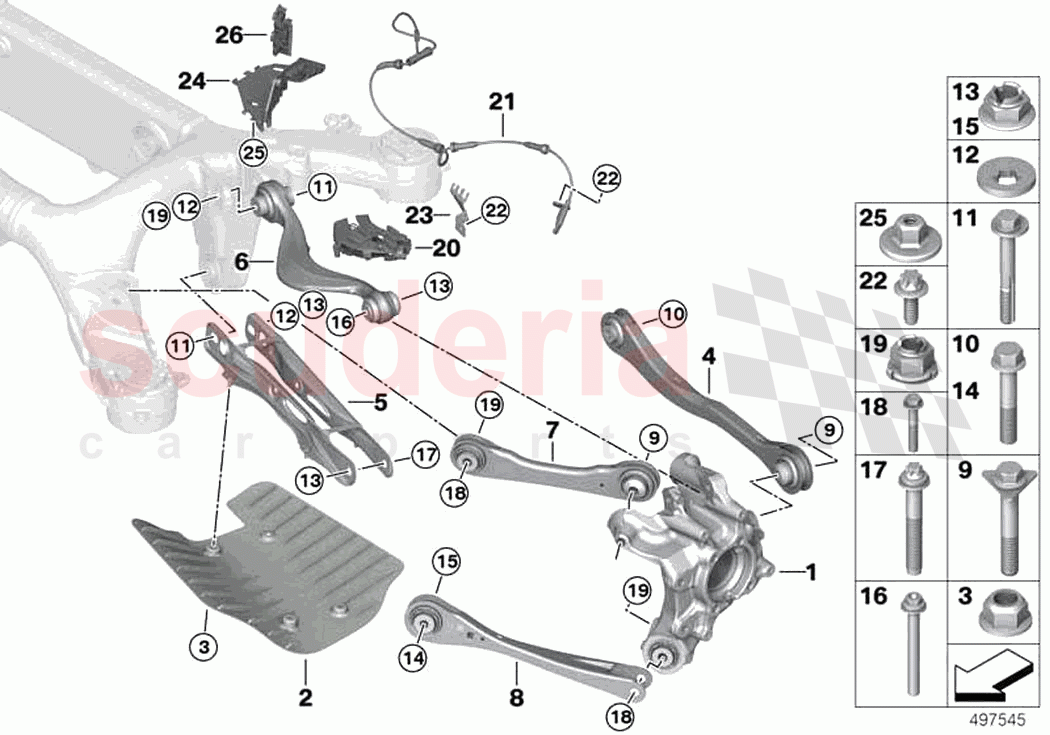

Rear axle support wheel suspension of Rolls Royce Rolls Royce Cullinan RR31(2017-2023) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 33306871855
Carrier, left 		- 1 Enquire
01 33306871856
Carrier, right 		- 1 Enquire
02 33306861143
Covering left 		- 1 Enquire
02 33306861144
Covering right 		- 1 Enquire
03 7119902751
Hex nut
M6-8-ZNS3 		- 8 Enquire
04 33326871865
Toe arm with rubber mount, left 		- 1 Enquire
04 33326871866
Toe arm with rubber mount, right 		- 1 Enquire
05 33326875104
Camber link 		- 2 Enquire
06 33326883339
Wishbone, bottom, with rubber mount left 		- 1 Enquire
06 33326883340
Wishbone, bottom,with rubber mount right 		- 1 Enquire
07 33326867537
Guide arm, left 		- 1 Enquire
07 33326867538
Guide arm, right 		- 1 Enquire
08 33326871879
Trailing arm with rubber mount 		- 2 Enquire
09 33306861944
Hex Bolt
M16X1,5X100 		- 4 Enquire
10 7119906489
Hexagon screw with flange
M12X1,5X67-10.9 		- 2 Enquire
11 33306874090
Eccentric bolt
M14X1.5 		- 4 Enquire
12 33306874239
Eccentric washer 		- 4 Enquire
13 31106890194
Hexagon nut with collar
M14X1,5-10 ZNS3 		- 6 Enquire
14 7119906292
Hex Bolt
M12X1,5X80 10.9 		- 2 Enquire
15 37106789678
Hex nut with flange
M12X1,5-10-ZNS3 		- 2 Enquire
16 33306891268
Multi-purpose bolt 		- 2 Enquire
17 7119908024
Torx-bolt with washer
M14X1,5X85 		- 2 Enquire
18 33306867271
Hex Bolt with washer
M14X1,5X84 		- 4 Enquire
19 33306787062
Combination nut
M14X1,5-10ZNNIV 		- 6 Enquire
20 34526886993
Holder, wheel speed sensor, left 		- 1 Enquire
20 34526886994
Holder, wheel speed sensor, right 		- 1 Enquire
21 34526885831
Wheel-speed sensor 		- 2 Enquire
22 34509804151
ASA screw, thread-forming
M6X16 		- 4 Enquire
23 34526869189
Holder, wheel speed sensor, left 		- 1 Enquire
23 34526869190
Holder, wheel speed sensor, right 		- 1 Enquire
24 34526869191
Bracket, left 		- 1 Enquire
24 34526869192
Bracket, right 		- 1 Enquire
25 7147169847
Plastic cap nut with washer
D=22MM 		- 4 Enquire
26 34526878437
Bracket, left 		- 1 Enquire
26 34526878438
Bracket, right 		- 1 Enquire
