Levelling device tubing attaching parts of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

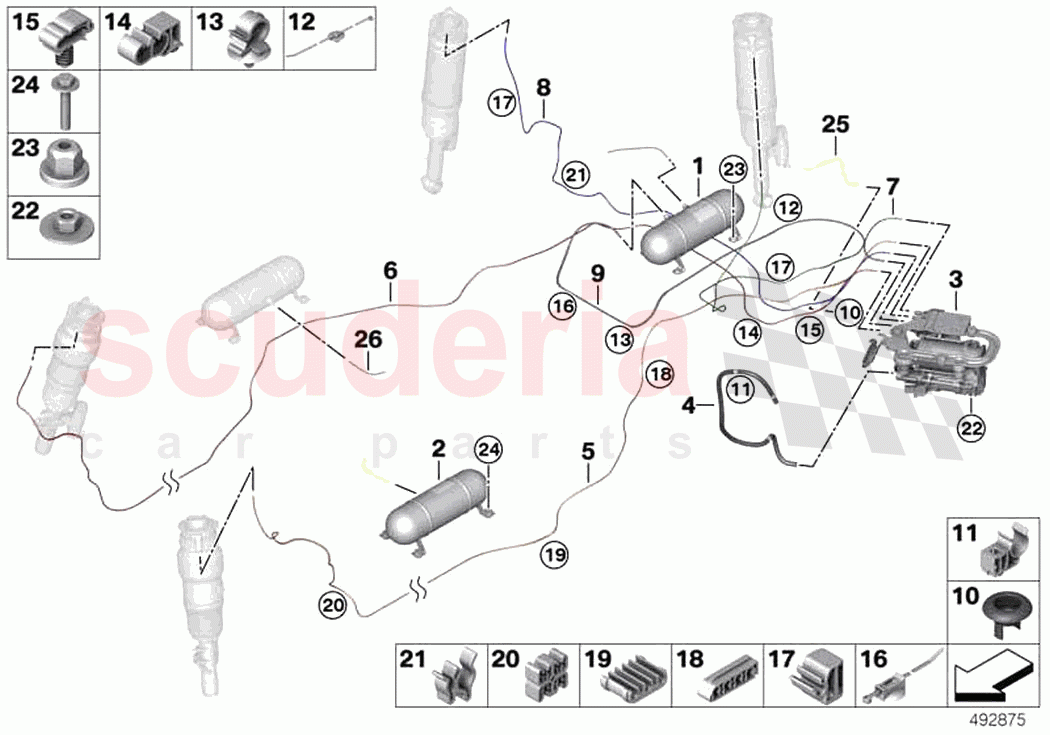

Rolls Royce Cullinan RR31(2017-2023) - Levelling device tubing attaching parts

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	37206889359	Pressure accumulator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206878261	Pressure accumulator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206896443	Air supply device	Enquire	To Order
	37206896572	Air supply device	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206878273	Vent tubing	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206877087	Air pipe, front left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206878266	Air pipe, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206878267	Air pipe, rear left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206878268	Air pipe, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206878269	Air intake tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37236759552	Rubber grommet	Enquire	To Order
	37236892736	Rubber grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206870526	Line clip, single	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51169223025	Cable tie	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61138368029	Retaining clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326871117	Line clip, double	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34521164653	Tubing support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61138361683	Cable strap with push-button	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206875836	Line clip, single	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34326777692	Spacer, 4-part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34321107992	Brake pipe bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34317707371	Tandem clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147305178	Combination nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16131176747	Plastic nut for coarse threaded pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119909355	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	37206878270	Air intake tube	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	37221092403	Screwed connection	37221092403 Screwed connection D=4MM; from 08.2019	-	2	Enquire
-	37226776050	Pipe clip	37226776050 Pipe clip from 08.2019	-	1	Enquire
-	37226754370	Screwed connection	37226754370 Screwed connection D=6MM	-	1	Enquire
-	37206892539	Air connection	37206892539 Air connection 6MM	-	1	Enquire
-	37206896906	Brass plug connection pneumatic	37206896906 Brass plug connection pneumatic 4MM	-	1	Enquire
-	37226882431	Plug connection pneumatic	37226882431 Plug connection pneumatic 4MM	-	1	Enquire
01	37206889359	Pressure accumulator	37206889359 Pressure accumulator 4 LITER	-	1	Enquire
02	37206878261	Pressure accumulator	37206878261 Pressure accumulator 4 LITER	-	2	Enquire
03	37206896443	Air supply device	37206896443 Air supply device 2AL; from 05.2019	-	1	Enquire
03	37206896572	Air supply device	37206896572 Air supply device 2AL	-	1	Enquire
04	37206878273	Vent tubing	37206878273 Vent tubing	-	1	Enquire
05	37206877087	Air pipe, front left	37206877087 Air pipe, front left from 08.2019	-	1	Enquire
06	37206878266	Air pipe, front right	37206878266 Air pipe, front right	-	1	Enquire
07	37206878267	Air pipe, rear left	37206878267 Air pipe, rear left	-	1	Enquire
08	37206878268	Air pipe, rear right	37206878268 Air pipe, rear right	-	1	Enquire
09	37206878269	Air intake tube	37206878269 Air intake tube	-	1	Enquire
10	37236759552	Rubber grommet	37236759552 Rubber grommet	-	1	Enquire
10	37236892736	Rubber grommet	37236892736 Rubber grommet	-	1	Enquire
11	37206870526	Line clip, single	37206870526 Line clip, single	-	4	Enquire
12	51169223025	Cable tie	51169223025 Cable tie	-	1	Enquire
13	61138368029	Retaining clip	61138368029 Retaining clip	-	3	Enquire
14	34326871117	Line clip, double	34326871117 Line clip, double	-	3	Enquire
15	34521164653	Tubing support	34521164653 Tubing support	-	4	Enquire
16	61138361683	Cable strap with push-button	61138361683 Cable strap with push-button	-	1	Enquire
17	37206875836	Line clip, single	37206875836 Line clip, single	-	6	Enquire
18	34326777692	Spacer, 4-part	34326777692 Spacer, 4-part	-	4	Enquire
19	34321107992	Brake pipe bracket	34321107992 Brake pipe bracket	-	1	Enquire
21	34317707371	Tandem clamp	34317707371 Tandem clamp D=5-8/10-12MM	-	1	Enquire
22	7147305178	Combination nut	7147305178 Combination nut	-	3	Enquire
23	16131176747	Plastic nut for coarse threaded pin	16131176747 Plastic nut for coarse threaded pin M6	-	4	Enquire
24	7119909355	Hex Bolt	7119909355 Hex Bolt M6X40-U2-8.8-ZN	-	8	Enquire
25	37206878270	Air intake tube	37206878270 Air intake tube 4MM	-	1	Enquire
