Front axle differential 175AL of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

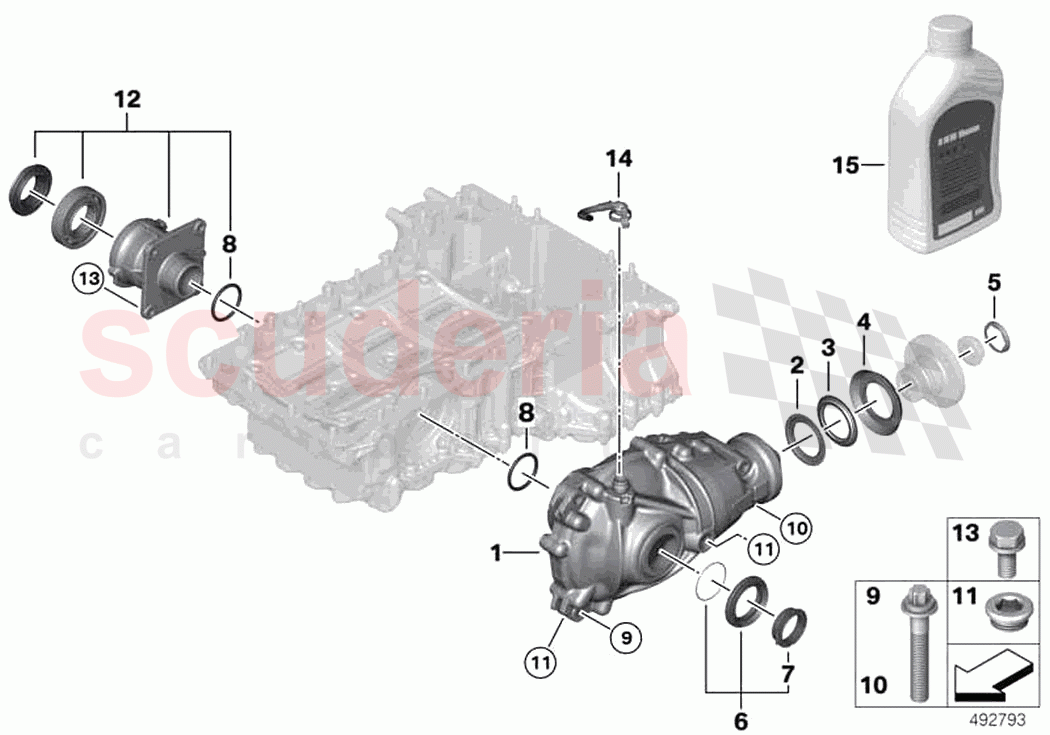

Rolls Royce Cullinan RR31(2017-2023) - Front axle differential 175AL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	31508679973	Final drive (front axle)	Enquire	To Order
	31508679974	Final drive (front axle)	Enquire	To Order
	31508865147	Front axle differential	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31521428678	Shaft seal	Enquire	To Order
	31527507697	Shaft seal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31520019369	dustcover plate, small	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31511428659	dustcover plate, large	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31508743675	Shaft seal with lock ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31511213527	O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31517589002	Screw, outer Torx, with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31517589001	Screw, outer Torx, with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	33117525064	Screw plug with O-ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31508699441	Supporting bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904793	Hex Bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31508684772	Vent pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83222413511	Hypoid axle oil G2	Enquire	To Order
	83222471487	Hypoid axle oil G5	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	33131214961	Lock Ring	33131214961 Lock Ring D=22,4; from 04.2023	-	2	Enquire
-	31537502681	Assembly ring	31537502681 Assembly ring from 04.2023	-	1	Enquire
-	23211490120	Securing plate	23211490120 Securing plate from 08.2021	-	1	Enquire
01	31508679973	Final drive (front axle)	31508679973 Final drive (front axle) I=2,81; from 04.2023	-	1	Enquire
01	31508679974	Final drive (front axle)	31508679974 Final drive (front axle) I=2,81; from 04.2023	-	1	Enquire
01	31508865147	Front axle differential	31508865147 Front axle differential I=2,81; to 04.2023	-	1	Enquire
02	31521428678	Shaft seal	31521428678 Shaft seal 44X69X10/15; from 08.2021	-	1	Enquire
02	31527507697	Shaft seal	31527507697 Shaft seal 44X69X10/15	-	1	Enquire
03	31520019369	dustcover plate, small	31520019369 dustcover plate, small	-	1	Enquire
04	31511428659	dustcover plate, large	31511428659 dustcover plate, large	-	1	Enquire
06	31508743675	Shaft seal with lock ring	31508743675 Shaft seal with lock ring 67X44X10/15.5	-	2	Enquire
08	31511213527	O-ring	31511213527 O-ring D=39MM	-	2	Enquire
09	31517589002	Screw, outer Torx, with washer	31517589002 Screw, outer Torx, with washer M12X1,5X105	-	2	Enquire
10	31517589001	Screw, outer Torx, with washer	31517589001 Screw, outer Torx, with washer M12X1,5X55-10.9	-	2	Enquire
11	33117525064	Screw plug with O-ring	33117525064 Screw plug with O-ring M22X1,5-ZNS3	-	2	Enquire
12	31508699441	Supporting bracket	31508699441 Supporting bracket	-	1	Enquire
13	7119904793	Hex Bolt with washer	7119904793 Hex Bolt with washer M8X25 ZNS3	-	4	Enquire
14	31508684772	Vent pipe	31508684772 Vent pipe	-	1	Enquire
15	83222413511	Hypoid axle oil G2	83222413511 Hypoid axle oil G2 0,5L; from 03.2020	-	-	Enquire
15	83222471487	Hypoid axle oil G5	83222471487 Hypoid axle oil G5 0,5L; to 03.2020	-	-	Enquire
