Carrier wheel bearing front of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

Rolls Royce Cullinan RR31(2017-2023) - Carrier wheel bearing front

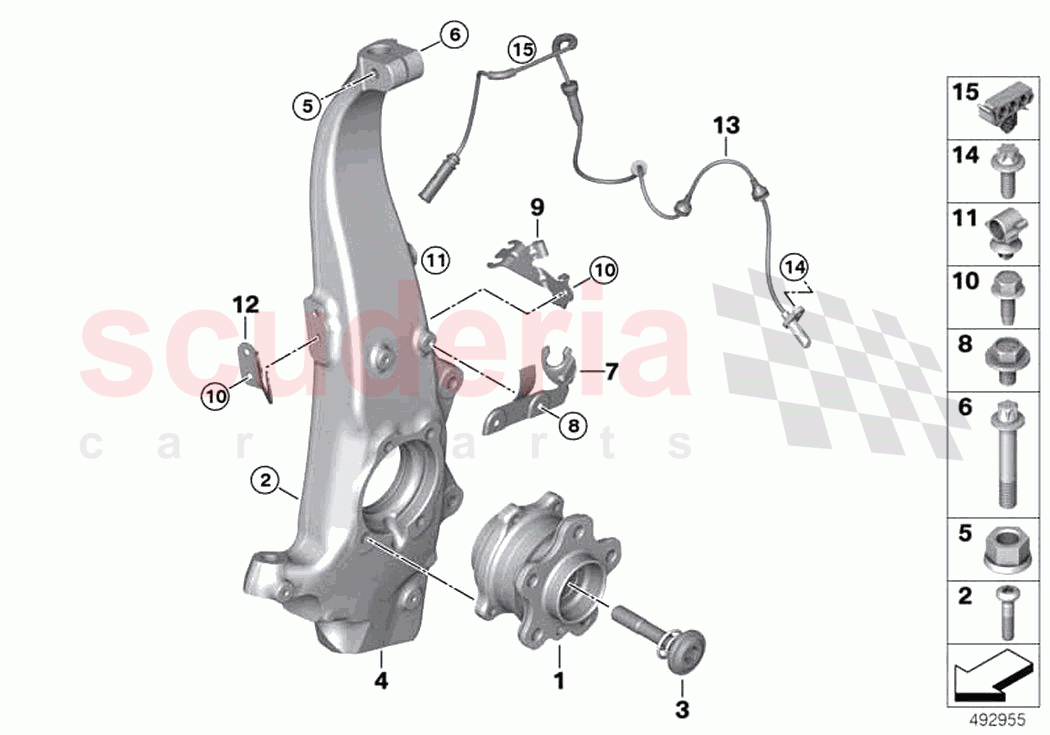

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	33406893687	Wheel hub with bearing, rear	Enquire	To Order
	33406890073	Wheel hub with bearing, rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31206799717	Collar bolt with compression spring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31216872435	Carrier, left	Enquire	To Order
	31216872436	Carrier, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106765451	Combination nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	31106789333	Torx screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306871911	Holder, brake hose, outer left	Enquire	To Order
	34306871912	Holder, brake hose, outer right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34116868785	Hex Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526875829	Holder, wheel speed sensor, left	Enquire	To Order
	34526875830	Holder, wheel speed sensor, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7131025735	Screw, self tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12517801070	Retaining clip	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34306871909	Holder, brake hose, front left	Enquire	To Order
	34306871910	Holder, brake hose, front right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526869196	Wheel-speed sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34509804151	ASA screw, thread-forming	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	34526791926	Cable clip, triple	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	31206872920	Spherical collar screw	31206872920 Spherical collar screw M12X1.25X45; from 12.2021	-	8	Enquire
01	33406893687	Wheel hub with bearing, rear	33406893687 Wheel hub with bearing, rear from 12.2021	-	2	Enquire
01	33406890073	Wheel hub with bearing, rear	33406890073 Wheel hub with bearing, rear	-	2	Enquire
03	31206799717	Collar bolt with compression spring	31206799717 Collar bolt with compression spring M16X1,5X90	-	2	Enquire
04	31216872435	Carrier, left	31216872435 Carrier, left	-	1	Enquire
04	31216872436	Carrier, right	31216872436 Carrier, right	-	1	Enquire
05	31106765451	Combination nut	31106765451 Combination nut M10-22H ZNS3	-	2	Enquire
06	31106789333	Torx screw	31106789333 Torx screw M10X59-10.9 ZNS	-	2	Enquire
07	34306871911	Holder, brake hose, outer left	34306871911 Holder, brake hose, outer left	-	1	Enquire
07	34306871912	Holder, brake hose, outer right	34306871912 Holder, brake hose, outer right	-	1	Enquire
08	34116868785	Hex Bolt	34116868785 Hex Bolt M6X12-10.9-MK-	-	4	Enquire
09	34526875829	Holder, wheel speed sensor, left	34526875829 Holder, wheel speed sensor, left	-	1	Enquire
09	34526875830	Holder, wheel speed sensor, right	34526875830 Holder, wheel speed sensor, right	-	1	Enquire
10	7131025735	Screw, self tapping	7131025735 Screw, self tapping M6X16MM	-	6	Enquire
11	12517801070	Retaining clip	12517801070 Retaining clip	-	1	Enquire
12	34306871909	Holder, brake hose, front left	34306871909 Holder, brake hose, front left	-	1	Enquire
12	34306871910	Holder, brake hose, front right	34306871910 Holder, brake hose, front right	-	1	Enquire
13	34526869196	Wheel-speed sensor	34526869196 Wheel-speed sensor	-	2	Enquire
14	34509804151	ASA screw, thread-forming	34509804151 ASA screw, thread-forming M6X16	-	2	Enquire
15	34526791926	Cable clip, triple	34526791926 Cable clip, triple	-	6	Enquire
