Name: Engine oil cooler oil cooler line
Rating: 5.0 (1 reviews)

View All

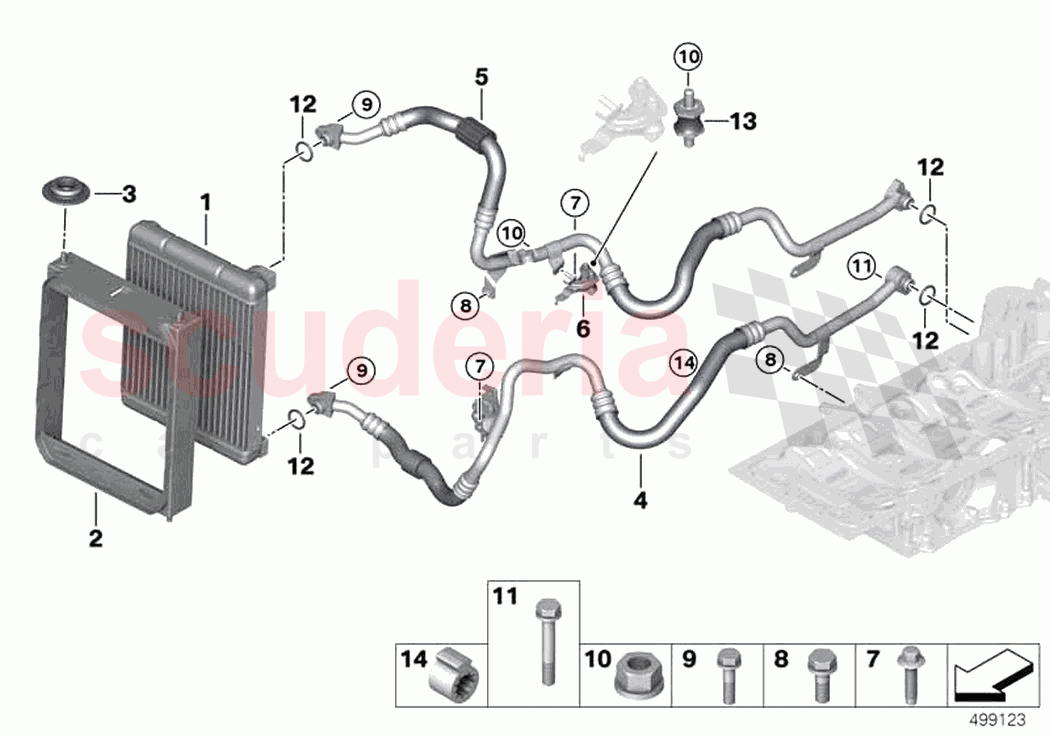

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17218663043	Frame for engine oil cooler	$177.35	To Order

Photo	Part No	Description	Price (each)	Stock
	17118689364	Rubber element	$5.84	To Order

Photo	Part No	Description	Price (each)	Stock
	17228602954	Line rad.feed engine - engine oil cooler	$778.61	To Order

Photo	Part No	Description	Price (each)	Stock
	17228602955	Returnpipe engine-oil cooler - engine	$778.44	To Order

Photo	Part No	Description	Price (each)	Stock
	17228662883	Bracket for engine oil cooler line	$149.82	To Order

Photo	Part No	Description	Price (each)	Stock
	34306771214	Screw, self tapping	$3.99	To Order

Photo	Part No	Description	Price (each)	Stock
	7119902933	Hex Bolt with washer	$0.69	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905400	Hex Bolt with washer	$1.14	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904553	Hex nut with plate	$0.85	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904525	Hex Bolt with washer	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	17228680549	O-ring	$11.96	To Order

Photo	Part No	Description	Price (each)	Stock
	32416769256	Rubber mounting	$13.23	To Order

Photo	Part No	Description	Price (each)	Stock
	64537578707	Spacer holder	$8.78	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
01	17218744905	Engine-oil cooler	17218744905 Engine-oil cooler from 12.2018	$2,323.75	1
01	17218663042	Engine-oil cooler	17218663042 Engine-oil cooler	$2,395.68	1
02	17218663043	Frame for engine oil cooler	17218663043 Frame for engine oil cooler	$177.35	1
03	17118689364	Rubber element	17118689364 Rubber element	$5.84	4
04	17228602954	Line rad.feed engine - engine oil cooler	17228602954 Line rad.feed engine - engine oil cooler	$778.61	1
05	17228602955	Returnpipe engine-oil cooler - engine	17228602955 Returnpipe engine-oil cooler - engine	$778.44	1
06	17228662883	Bracket for engine oil cooler line	17228662883 Bracket for engine oil cooler line	$149.82	1
07	34306771214	Screw, self tapping	34306771214 Screw, self tapping M6X25- 10.9 ZNS	$3.99	2
08	7119902933	Hex Bolt with washer	7119902933 Hex Bolt with washer M6X18-U2-ZNS3	$0.69	2
09	7119905400	Hex Bolt with washer	7119905400 Hex Bolt with washer M6X25-ZNNIV SI	$1.14	2
10	7129904553	Hex nut with plate	7129904553 Hex nut with plate AM6-8-ZNNIV SI	$0.85	7
11	7119904525	Hex Bolt with washer	7119904525 Hex Bolt with washer M6X40 ZNNIV SI	$1.97	1
12	17228680549	O-ring	17228680549 O-ring 17,00X2,65	$11.96	4
13	32416769256	Rubber mounting	32416769256 Rubber mounting H=17	$13.23	4
14	64537578707	Spacer holder	64537578707 Spacer holder	$8.78	1
