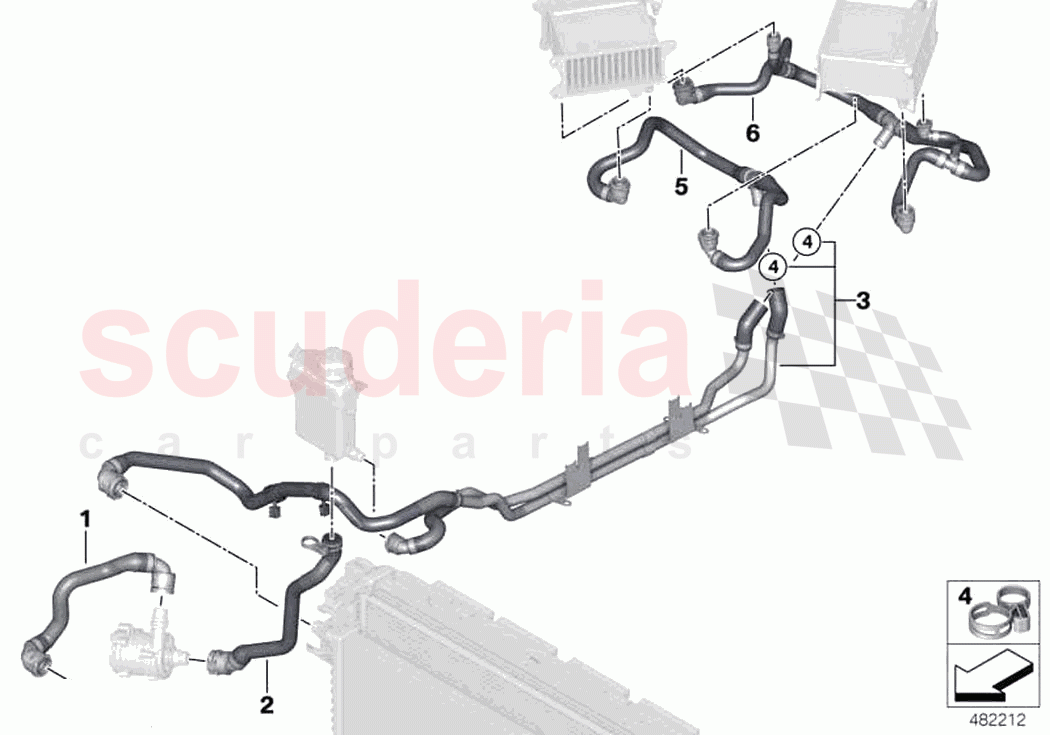

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	17128602751	Hose radiator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17128602750	Hose for expansion tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17128602753	Refrigerant pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	17129469517	Return hose charge air cooler	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	17128602751	Hose radiator	17128602751 Hose radiator	-	1	Enquire
02	17128602750	Hose for expansion tank	17128602750 Hose for expansion tank	-	1	Enquire
03	17128602753	Refrigerant pipe	17128602753 Refrigerant pipe	-	1	Enquire
04	64219182743	Spring ring shell	64219182743 Spring ring shell D=28MM	-	2	Enquire
04	17128632053	Clip	17128632053 Clip D=22-24	-	2	Enquire
05	17128602739	Supply hose	17128602739 Supply hose	-	1	Enquire
05	64213405913	Hose clamp	64213405913 Hose clamp D=27MM	-	2	Enquire
06	17128602740	Return hose	17128602740 Return hose	-	1	Enquire
06	17129469516	Feed line charge air cooler	17129469516 Feed line charge air cooler	-	1	Enquire
07	17129469517	Return hose charge air cooler	17129469517 Return hose charge air cooler	-	1	Enquire
