Air duct of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

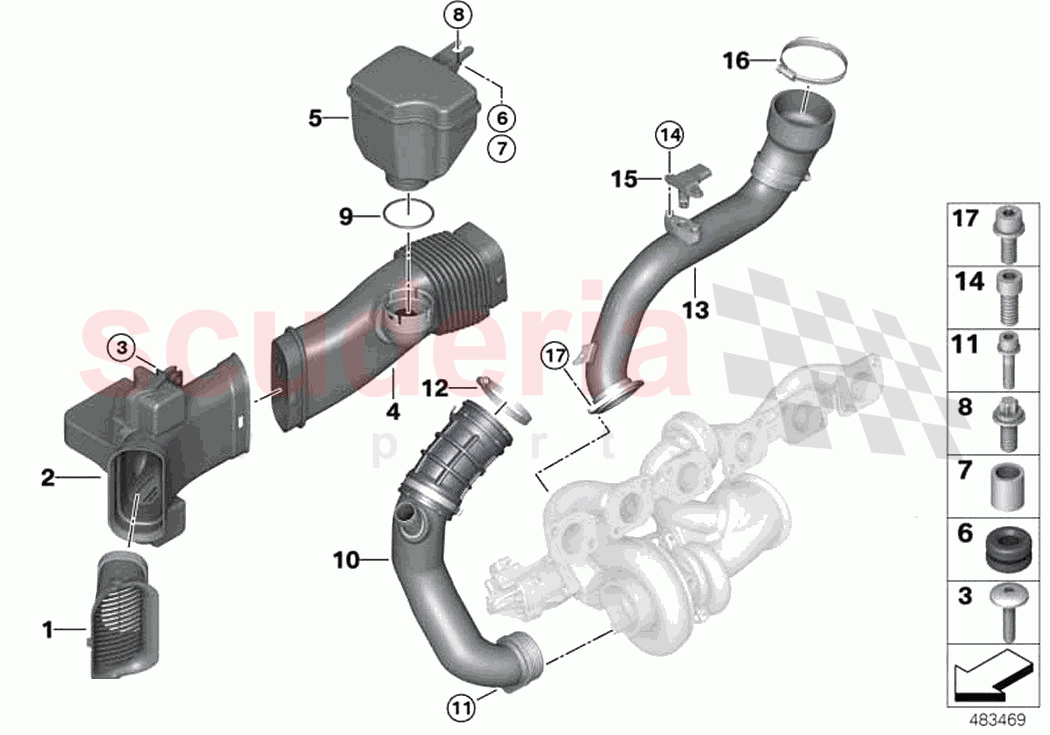

Rolls Royce Cullinan RR31(2017-2023) - Air duct

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13718642555	Intake duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13718642431	Air duct	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147072901	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13718625293	Intake duct	Enquire	To Order
	13718625295	Intake duct	Enquire	To Order
	13719455999	Intake duct	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13718648251	Resonator	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13717604012	Grommet	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13717604011	Sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904559	ASA-Bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84210300309	Not currently available as separate part	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13718621869	Filtered air pipe	Enquire	To Order
	13718621870	Filtered air pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904943	Fillister head with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13717593244	Hose clamp	Enquire	To Order
	7129952127	Hose clamp	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13718621871	Charge air tube	Enquire	To Order
	13718621872	Charge air tube	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119906475	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13628644432	Pressure sensor	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129904819	Torx-bolt with washer	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	11657535440	O-ring	11657535440 O-ring 52X3	-	1	Enquire
01	13718642555	Intake duct	13718642555 Intake duct	-	2	Enquire
02	13718642431	Air duct	13718642431 Air duct	-	2	Enquire
03	7147072901	Fillister head screw	7147072901 Fillister head screw	-	4	Enquire
04	13718625293	Intake duct	13718625293 Intake duct ZYL. 1-6	-	1	Enquire
04	13718625295	Intake duct	13718625295 Intake duct ZYL. 7-12	-	1	Enquire
04	13719455999	Intake duct	13719455999 Intake duct ZYL. 1-6	-	1	Enquire
04	13719456001	Intake duct	13719456001 Intake duct ZYL. 7-12	-	1	Enquire
05	13718648251	Resonator	13718648251 Resonator	-	2	Enquire
06	13717604012	Grommet	13717604012 Grommet	-	2	Enquire
07	13717604011	Sleeve	13717604011 Sleeve	-	2	Enquire
08	7129904559	ASA-Bolt	7129904559 ASA-Bolt M8X20-U1-8.8	-	2	Enquire
09	84210300309	Not currently available as separate part	84210300309 Not currently available as separate part	-	2	Enquire
10	13718621869	Filtered air pipe	13718621869 Filtered air pipe 01-Jun	-	1	Enquire
10	13718621870	Filtered air pipe	13718621870 Filtered air pipe 07-Dec	-	1	Enquire
11	7119904943	Fillister head with washer	7119904943 Fillister head with washer M6X22-U0-ZNS3	-	4	Enquire
12	13717593244	Hose clamp	13717593244 Hose clamp	-	4	Enquire
12	7129952127	Hose clamp	7129952127 Hose clamp L65-72	-	4	Enquire
13	13718621871	Charge air tube	13718621871 Charge air tube 01-Jun	-	1	Enquire
13	13718621872	Charge air tube	13718621872 Charge air tube 07-Dec	-	1	Enquire
14	7119906475	Fillister head screw	7119906475 Fillister head screw M6X14	-	4	Enquire
15	13628644432	Pressure sensor	13628644432 Pressure sensor	-	2	Enquire
17	7129904819	Torx-bolt with washer	7129904819 Torx-bolt with washer M6X16-8.8-ZNNIV	-	4	Enquire
