Name: High pressure rail injector line
Rating: 5.0 (1 reviews)

View All

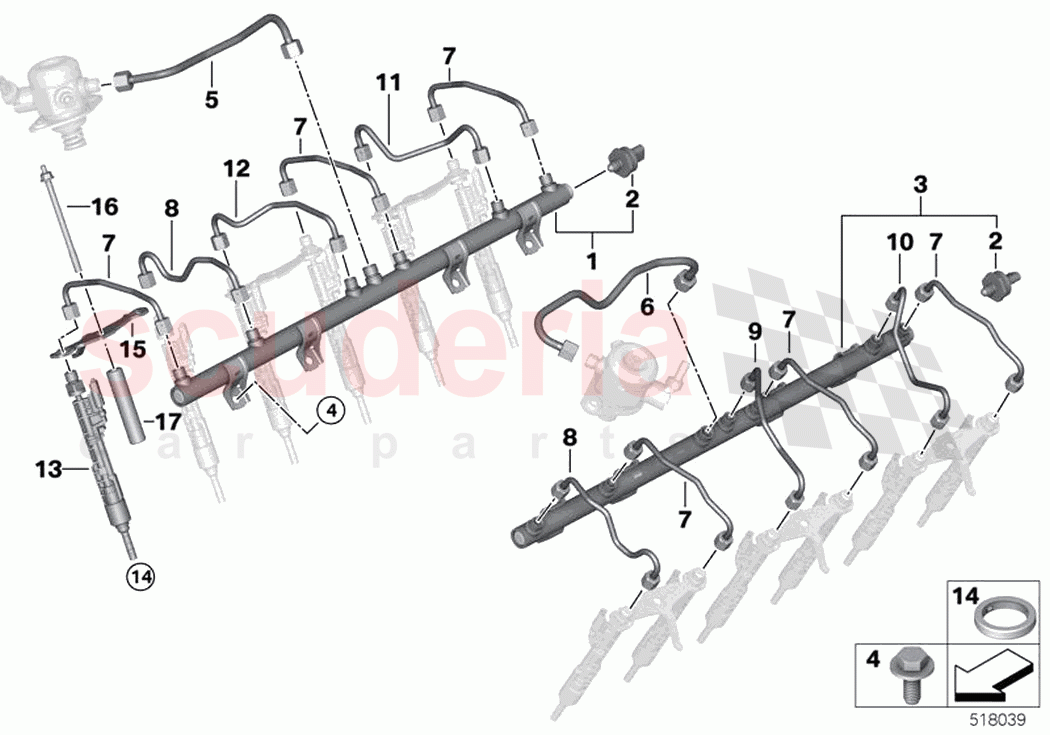

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	13538648185	Injection tube	$531.40	To Order

Photo	Part No	Description	Price (each)	Stock
	13538631820	Sensor, high-pressure	$121.60	To Order

Photo	Part No	Description	Price (each)	Stock
	13538648186	Injection tube	$531.40	To Order

Photo	Part No	Description	Price (each)	Stock
	7119905926	Hex Bolt with washer	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	13538648187	High pressure pipe	$88.55	To Order

Photo	Part No	Description	Price (each)	Stock
	13538648188	High pressure pipe	$88.55	To Order

Photo	Part No	Description	Price (each)	Stock
	13538623427	High pressure pipe	$57.53	To Order

Photo	Part No	Description	Price (each)	Stock
	13538630455	High pressure pipe	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13538629241	High pressure pipe	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13538629242	High pressure pipe	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13538623430	High pressure pipe	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13538623429	High pressure pipe	$66.39	To Order

Photo	Part No	Description	Price (each)	Stock
	13538648189	Injector	$386.54	To Order

Photo	Part No	Description	Price (each)	Stock
	13648623531	Bracket injector	$28.98	To Order

Photo	Part No	Description	Price (each)	Stock
	13538618437	Screw	$4.70	To Order

Photo	Part No	Description	Price (each)	Stock
	13648627305	Sleeve	$7.24	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	13538648185	Injection tube	13538648185 Injection tube 01-Jun	$531.40	1
02	13538631820	Sensor, high-pressure	13538631820 Sensor, high-pressure	$121.60	2
03	13538648186	Injection tube	13538648186 Injection tube 07-Dec	$531.40	1
04	7119905926	Hex Bolt with washer	7119905926 Hex Bolt with washer M7X16-U1	$1.97	8
05	13538648187	High pressure pipe	13538648187 High pressure pipe 01-Jun	$88.55	1
06	13538648188	High pressure pipe	13538648188 High pressure pipe 07-Dec	$88.55	1
07	13538623427	High pressure pipe	13538623427 High pressure pipe	$57.53	6
08	13538630455	High pressure pipe	13538630455 High pressure pipe ZYL. 2+7	$66.39	2
09	13538629241	High pressure pipe	13538629241 High pressure pipe ZYL. 9	$66.39	1
10	13538629242	High pressure pipe	13538629242 High pressure pipe ZYL. 11	$66.39	1
11	13538623430	High pressure pipe	13538623430 High pressure pipe ZYL. 5	$66.39	1
12	13538623429	High pressure pipe	13538623429 High pressure pipe ZYL. 3	$66.39	1
13	13538648189	Injector	13538648189 Injector	$386.54	12
14	13538740125	Gasket ring	13538740125 Gasket ring from 03.2020	-	12	Enquire
14	13539847174	Gasket ring	13539847174 Gasket ring	$8.55	12
15	13648623531	Bracket injector	13648623531 Bracket injector	$28.98	6
16	13538618437	Screw	13538618437 Screw M7X95	$4.70	6
17	13648627305	Sleeve	13648627305 Sleeve	$7.24	6

High Pressure Rail Injector Line

Rolls Royce Cullinan RR31(2017-2023)
