Seat rear seat frame basic seat of Rolls Royce Rolls Royce Cullinan RR31(2017-2023)

View All

Rolls Royce Cullinan RR31(2017-2023) - Seat rear seat frame basic seat

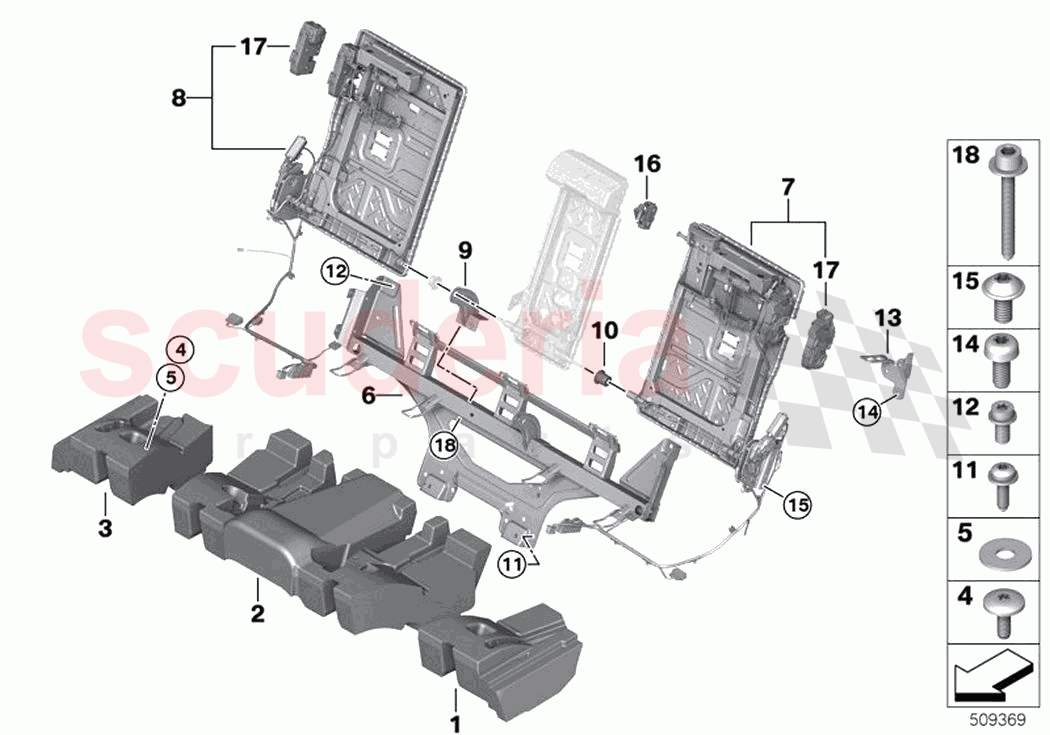

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52207950597	Foam insert, rear left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207463584	Insert rear centre	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207950598	Foam insert, rear right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63129194594	Oval-head screw/washer assembly	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904209	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207462193	Backrest frame support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207476239	Backrest frame, basic, left	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207476240	Backrest frame, basic, right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207495875	Centre backrest bearing bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207478860	Bearing sleeve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7147301867	Torx-bolt with washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7129908679	Torx screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207478863	Catch bracket left	Enquire	To Order
	52207478864	Catch bracket right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7149148299	Fillister head screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146976577	Fillister head screw with collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52209890529	Lock, middle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52209461439	Lock left	Enquire	To Order
	52209461440	Lock right	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7119904955	Fillister head screw	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	52207950597	Foam insert, rear left	52207950597 Foam insert, rear left	-	1	Enquire
02	52207463584	Insert rear centre	52207463584 Insert rear centre	-	1	Enquire
03	52207950598	Foam insert, rear right	52207950598 Foam insert, rear right	-	1	Enquire
04	63129194594	Oval-head screw/washer assembly	63129194594 Oval-head screw/washer assembly	-	4	Enquire
05	7119904209	Washer	7119904209 Washer 10-200 ZNS3	-	4	Enquire
06	52207462193	Backrest frame support	52207462193 Backrest frame support	-	1	Enquire
07	52207476239	Backrest frame, basic, left	52207476239 Backrest frame, basic, left	-	1	Enquire
08	52207476240	Backrest frame, basic, right	52207476240 Backrest frame, basic, right	-	1	Enquire
09	52207495875	Centre backrest bearing bracket	52207495875 Centre backrest bearing bracket	-	1	Enquire
10	52207478860	Bearing sleeve	52207478860 Bearing sleeve	-	2	Enquire
11	7147301867	Torx-bolt with washer	7147301867 Torx-bolt with washer ISA M8X25	-	6	Enquire
12	7129908679	Torx screw	7129908679 Torx screw M10X22-10.9	-	4	Enquire
13	52207478863	Catch bracket left	52207478863 Catch bracket left	-	1	Enquire
13	52207478864	Catch bracket right	52207478864 Catch bracket right	-	1	Enquire
14	7149148299	Fillister head screw	7149148299 Fillister head screw M10X22	-	6	Enquire
15	7146976577	Fillister head screw with collar	7146976577 Fillister head screw with collar M8X16	-	8	Enquire
16	52209890529	Lock, middle	52209890529 Lock, middle	-	1	Enquire
17	52209461439	Lock left	52209461439 Lock left	-	1	Enquire
17	52209461440	Lock right	52209461440 Lock right	-	1	Enquire
18	7119904955	Fillister head screw	7119904955 Fillister head screw M8X60-ZNS3	-	2	Enquire
