Find Your Part

View All

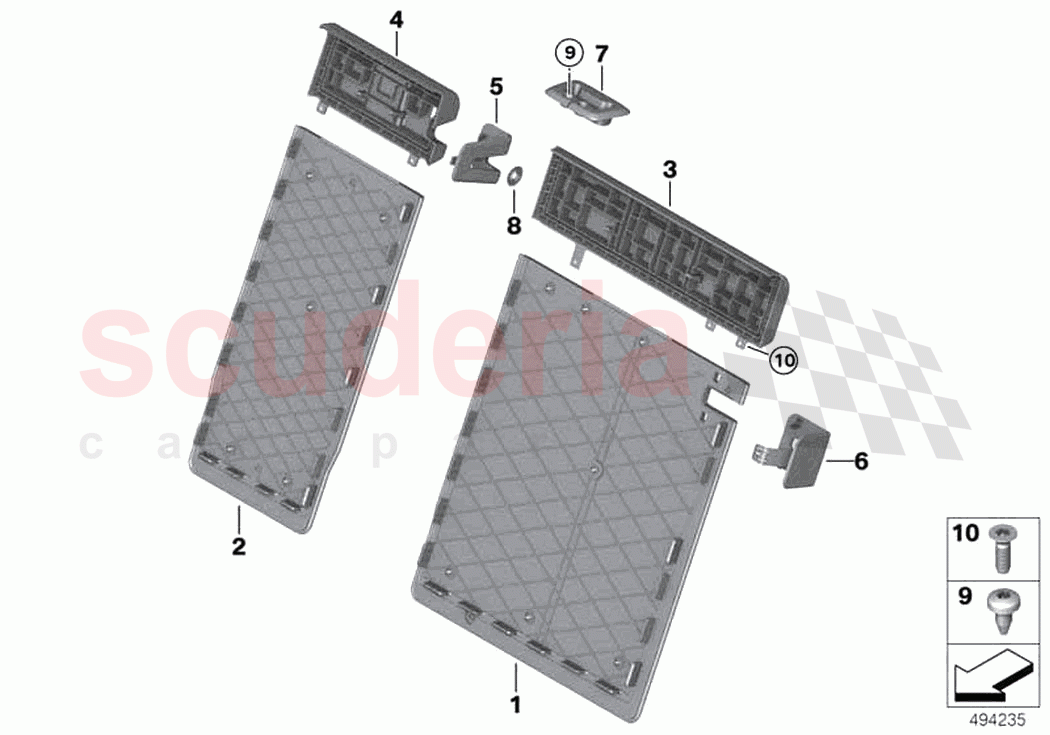

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	52207952030	Trim panel, backrest, middle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207486968	Trim backrest upper section outer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207486969	Trim, backrest upper section, middle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207463501	Trim, lock, middle	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52208493557	Cover, locking mechanism	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207446562	Trim, belt centre rear	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	52207436809	Cover	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	7146777838	Oval-head screw, self-tapping	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	51167069460	Countersunk screw	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	52207952031	Trim backrest, left	52207952031 Trim backrest, left COLOUR NEUTRAL	-	1	Enquire
01	52207952032	Trim backrest, right	52207952032 Trim backrest, right COLOUR NEUTRAL	-	1	Enquire
02	52207952030	Trim panel, backrest, middle	52207952030 Trim panel, backrest, middle COLOUR NEUTRAL	-	1	Enquire
03	52207486968	Trim backrest upper section outer	52207486968 Trim backrest upper section outer	-	2	Enquire
04	52207486969	Trim, backrest upper section, middle	52207486969 Trim, backrest upper section, middle	-	1	Enquire
05	52207463501	Trim, lock, middle	52207463501 Trim, lock, middle	-	1	Enquire
06	52208493557	Cover, locking mechanism	52208493557 Cover, locking mechanism	-	2	Enquire
07	52207446562	Trim, belt centre rear	52207446562 Trim, belt centre rear CHROM	-	1	Enquire
08	52207436809	Cover	52207436809 Cover SCHWARZ	-	1	Enquire
09	7146777838	Oval-head screw, self-tapping	7146777838 Oval-head screw, self-tapping M5X10-ZNNID SW	-	2	Enquire

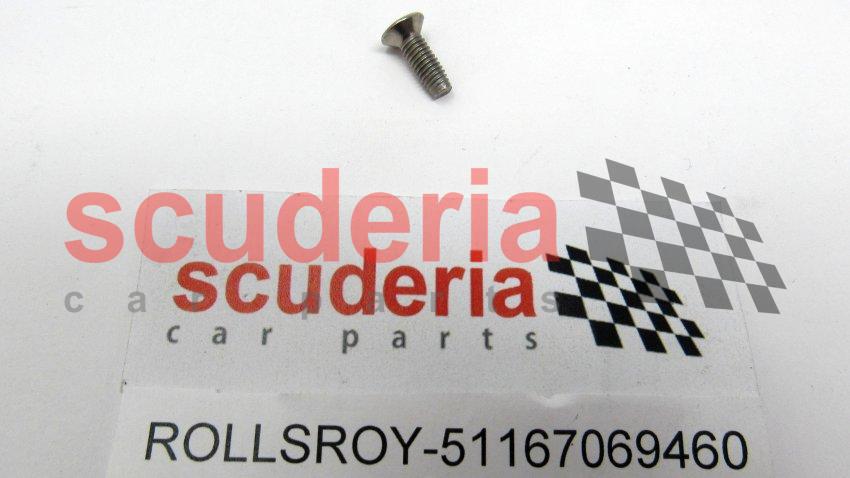

10	51167069460	Countersunk screw	51167069460 Countersunk screw ISA M4X12	-	6	Enquire
