42 - INTERIOR SYSTEMS - 42.3 - ASSY TUNNEL CONSOLE of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 42 - INTERIOR SYSTEMS - 42.3 - ASSY TUNNEL CONSOLE

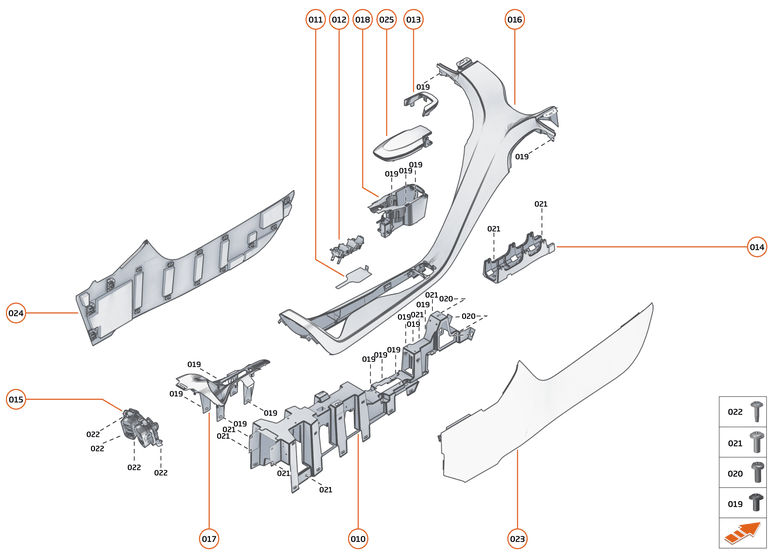

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	00RA226	SCREW - M3X8 - BUTTON	00RA226 SCREW - M3X8 - BUTTON Row ID: ID__00RA226_ContPgHS;	-	6	Enquire
000	00RA187	SCR-BTN HD-HX-FL-M5X0.8X25-10.	00RA187 SCR-BTN HD-HX-FL-M5X0.8X25-10. Row ID: ID__00RA187_ContPgHS;	-	2	Enquire
010	26NB047SP	ASSY - TUNNEL - LWR - ARMATURE	26NB047SP ASSY - TUNNEL - LWR - ARMATURE Row ID: ID__26NB047SP_ContPgHS;	-	1	Enquire
011	26NA185SP	ASSY - MAT CUP-HOLDER	26NA185SP ASSY - MAT CUP-HOLDER Row ID: ID__26NA185SP_ContPgHS;	-	1	Enquire
012	22NA304GP	DNR SWITCH HOUSING	22NA304GP DNR SWITCH HOUSING Row ID: ID__22NA304GP_ContPgHS;	-	1	Enquire
013	26NA234SP	ASSY - TUNNEL HINGE COVER	26NA234SP ASSY - TUNNEL HINGE COVER Row ID: ID__26NA234SP_ContPgHS;	-	1	Enquire
014	13N2147CP	ASSY-BRKT-TUNNEL MTG-LOWER	13N2147CP ASSY-BRKT-TUNNEL MTG-LOWER Row ID: ID__13N2147CP_ContPgHS;	-	1	Enquire
015	26NA265SP	ASSY - VENT MOUNTING CTR	26NA265SP ASSY - VENT MOUNTING CTR Row ID: ID__26NA265SP_ContPgHS;	-	1	Enquire
016	26NB429SP	ASSY - TUNNEL - UPR	26NB429SP ASSY - TUNNEL - UPR Row ID: ID__26NB429SP_ContPgHS;	-	1	Enquire
017	26NB384SP	ASSY - VENT BEZEL - CTR	26NB384SP ASSY - VENT BEZEL - CTR Row ID: ID__26NB384SP_ContPgHS;	-	1	Enquire
018	26NB398SP	ASSY - CUPHOLDER BIN	26NB398SP ASSY - CUPHOLDER BIN Row ID: ID__26NB398SP_ContPgHS;	-	1	Enquire
019	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	15	Enquire
020	00RA071	SCREW - M6X16 - BUTTON	00RA071 SCREW - M6X16 - BUTTON Row ID: ID__00RA071_ContPgHS;	-	2	Enquire
021	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	6	Enquire
021	00RA081	SCREW - TORX - PAN - M6X16-8.8	00RA081 SCREW - TORX - PAN - M6X16-8.8 Row ID: ID__00RA081_ContPgHS;	-	2	Enquire
022	00RA587	Screw Torx - M6x18	00RA587 Screw Torx - M6x18 Row ID: ID__00RA587_ContPgHS;	-	4	Enquire
023	26NA107SP	ASSY - TUNNEL SIDE PANEL LHD - LH	26NA107SP ASSY - TUNNEL SIDE PANEL LHD - LH Row ID: ID__26NA107SP_ContPgHS;	-	1	Enquire
023	26NA392SP	ASSY - TUNNEL SIDE PANEL RHD - LH	26NA392SP ASSY - TUNNEL SIDE PANEL RHD - LH Row ID: ID__26NA392SP_ContPgHS;	-	1	Enquire
024	26NA184SP	ASSY - TUNNEL SIDE PANEL LHD RH	26NA184SP ASSY - TUNNEL SIDE PANEL LHD RH Row ID: ID__26NA184SP_ContPgHS;	-	1	Enquire
024	26NA393SP	ASSY - TUNNEL SIDE PANEL RHD - RH	26NA393SP ASSY - TUNNEL SIDE PANEL RHD - RH Row ID: ID__26NA393SP_ContPgHS;	-	1	Enquire
025	26NA224SP	ASSY - TUNNEL ARM REST	26NA224SP ASSY - TUNNEL ARM REST Row ID: ID__26NA224SP_ContPgHS;	-	1	Enquire
