42 - INTERIOR SYSTEMS - 42.1 - ASSY FACIA of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 42 - INTERIOR SYSTEMS - 42.1 - ASSY FACIA

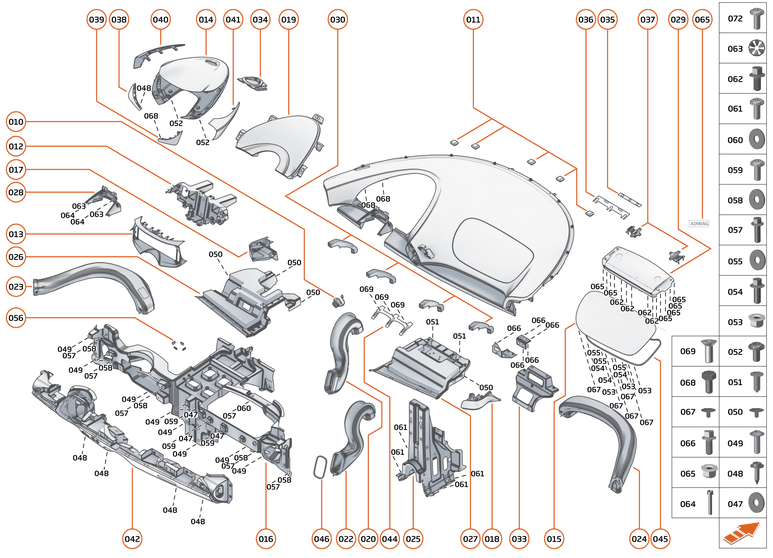

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	26NA375SP	ASSY GAITER STEERING COLUMN - ELEC	26NA375SP ASSY GAITER STEERING COLUMN - ELEC Row ID: ID__26NA375SP_ContPgHS;	-	1	Enquire
000	00RL004		00RL004 FELT TAPE; Row ID: ID__00RL004_ContPgHS;	-	1	Enquire
010	13A2619CP	SENSOR - CABIN TEMPERATURE	13A2619CP SENSOR - CABIN TEMPERATURE Row ID: ID__13A2619CP_ContPgHS;	-	1	Enquire
011	14N1046CP	LOCATOR RUBBER - FACIA	14N1046CP LOCATOR RUBBER - FACIA Row ID: ID__14N1046CP_ContPgHS;	-	4	Enquire
012	26NA627SP	ASSY CLUSTER SCREEN BRACKET	26NA627SP ASSY CLUSTER SCREEN BRACKET Row ID: ID__26NA627SP_ContPgHS;	-	1	Enquire
013	26NA071SP	ASSY BINNACLE VISOR ARMATURE	26NA071SP ASSY BINNACLE VISOR ARMATURE Row ID: ID__26NA071SP_ContPgHS;	-	1	Enquire
014	26NA167SP	ASSY - BINNACLE UPR COVER	26NA167SP ASSY - BINNACLE UPR COVER Row ID: ID__26NA167SP_ContPgHS;	-	1	Enquire
014	26NA120CP	ASSY - BINNACLE UPR COVER	26NA120CP ASSY - BINNACLE UPR COVER Row ID: ID__26NA120CP_ContPgHS;	-	1	Enquire
015	26NA174SP	ASSY - PAB COVER - LHD	26NA174SP ASSY - PAB COVER - LHD Row ID: ID__26NA174SP_ContPgHS;	-	1	Enquire
015	26NA424SP	ASSY - PAB COVER - RHD	26NA424SP ASSY - PAB COVER - RHD Row ID: ID__26NA424SP_ContPgHS;	-	1	Enquire
016	26NB406SP	CCB ASSY LHD	26NB406SP CCB ASSY LHD Row ID: ID__26NB406SP_ContPgHS;	-	1	Enquire
016	26NB404SP	CCB ASSY RHD	26NB404SP CCB ASSY RHD Row ID: ID__26NB404SP_ContPgHS;	-	1	Enquire
017	26NA346SP	ASSY FACIA UPPER END CAP LH	26NA346SP ASSY FACIA UPPER END CAP LH Row ID: ID__26NA346SP_ContPgHS;	-	1	Enquire
018	26NA349SP	ASSY FACIA UPPER END CAP RH	26NA349SP ASSY FACIA UPPER END CAP RH Row ID: ID__26NA349SP_ContPgHS;	-	1	Enquire
019	26NA318SP	ASSY COLLAPSE PANEL LHD	26NA318SP ASSY COLLAPSE PANEL LHD Row ID: ID__26NA318SP_ContPgHS;	-	1	Enquire
019	26NA681SP	ASSY COLLAPSE PANEL RHD	26NA681SP ASSY COLLAPSE PANEL RHD Row ID: ID__26NA681SP_ContPgHS;	-	1	Enquire
020	26NA201SP	ASSY - FACIA CTR DUCT LH	26NA201SP ASSY - FACIA CTR DUCT LH Row ID: ID__26NA201SP_ContPgHS;	-	1	Enquire
022	26NA699SP	ASSY - FACIA CTR DUCT RH	26NA699SP ASSY - FACIA CTR DUCT RH Row ID: ID__26NA699SP_ContPgHS;	-	1	Enquire
023	26NA208SP	ASSY - FACIA DOOR DUCT LH	26NA208SP ASSY - FACIA DOOR DUCT LH Row ID: ID__26NA208SP_ContPgHS;	-	1	Enquire
024	26NA209SP	ASSY - FACIA DOOR DUCT RH	26NA209SP ASSY - FACIA DOOR DUCT RH Row ID: ID__26NA209SP_ContPgHS;	-	1	Enquire
025	26NA281SP	CROSS CAR BEAM LOWER	26NA281SP CROSS CAR BEAM LOWER Row ID: ID__26NA281SP_ContPgHS;	-	1	Enquire
025	26NA163CP	ASSY CROSS CAR BEAM LOWER BRACKET	26NA163CP ASSY CROSS CAR BEAM LOWER BRACKET Row ID: ID__26NA163CP_ContPgHS;	-	1	Enquire
026	26NA510SP	ASSY FACIA LWR CLOSURE PANEL - LHD DRIVER	26NA510SP ASSY FACIA LWR CLOSURE PANEL - LHD DRIVER Row ID: ID__26NA510SP_ContPgHS;	-	1	Enquire
026	26NA514SP	ASSY FACIA LWR CLOSURE PANEL - RHD DRIVER	26NA514SP ASSY FACIA LWR CLOSURE PANEL - RHD DRIVER Row ID: ID__26NA514SP_ContPgHS;	-	1	Enquire
027	26NA552SP	ASSY FACIA LWR CLOSURE PNL LHD - PASSENGER	26NA552SP ASSY FACIA LWR CLOSURE PNL LHD - PASSENGER Row ID: ID__26NA552SP_ContPgHS;	-	1	Enquire
027	26NA516SP	ASSY FACIA LWR CLOSURE PNL RHD - PASSENGER	26NA516SP ASSY FACIA LWR CLOSURE PNL RHD - PASSENGER Row ID: ID__26NA516SP_ContPgHS;	-	1	Enquire
027	26NA127SP	ASSY FACIA LWR CLOSURE PNL FED - PASSENGER	26NA127SP ASSY FACIA LWR CLOSURE PNL FED - PASSENGER Row ID: ID__26NA127SP_ContPgHS;	-	1	Enquire
027	11N0999CP	KNEEBAG - US	11N0999CP KNEEBAG - US Row ID: ID__11N0999CP_ContPgHS;	-	2	Enquire
028	26NA744SP	ASSY BINNACLE LOWER	26NA744SP ASSY BINNACLE LOWER Row ID: ID__26NA744SP_ContPgHS;	-	1	Enquire
029	13NA253CP	AIRBAG - PASSENGER - LHD	13NA253CP AIRBAG - PASSENGER - LHD Row ID: ID__13NA253CP_ContPgHS;	-	1	Enquire
029	13NA254CP	AIRBAG - PASSENGER - RHD	13NA254CP AIRBAG - PASSENGER - RHD Row ID: ID__13NA254CP_ContPgHS;	-	1	Enquire
030	26NA843SP	ASSY KNEEBOLSTER BRACKET	26NA843SP ASSY KNEEBOLSTER BRACKET Row ID: ID__26NA843SP_ContPgHS;	-	4	Enquire
030	11N1083CP	BRACKET - KNEEBOLSTER - REST OF WORLD	11N1083CP BRACKET - KNEEBOLSTER - REST OF WORLD Row ID: ID__11N1083CP_ContPgHS;	-	4	Enquire
031	26NB166SP	PAB FIXING BRACKET LOWER	26NB166SP PAB FIXING BRACKET LOWER Row ID: ID__26NB166SP_ContPgHS;	-	1	Enquire
031	26NA872SP	KNEEBAG BRACKET KIT	26NA872SP KNEEBAG BRACKET KIT Row ID: ID__26NA872SP_ContPgHS;	-	1	Enquire
032	26NB167SP	PAB FIXING BRACKET UPPER	26NB167SP PAB FIXING BRACKET UPPER Row ID: ID__26NB167SP_ContPgHS;	-	1	Enquire
032	11N0986CP	BRACKET - KNEEBAG	11N0986CP BRACKET - KNEEBAG Row ID: ID__11N0986CP_ContPgHS;	-	4	Enquire
033	26NA784SP	ASSY CCB REINF BRACKET - PASSENGER	26NA784SP ASSY CCB REINF BRACKET - PASSENGER Row ID: ID__26NA784SP_ContPgHS;	-	1	Enquire
034	26NA805SP	ASSY - RAIN LIGHT SENSOR GLASS	26NA805SP ASSY - RAIN LIGHT SENSOR GLASS Row ID: ID__26NA805SP_ContPgHS;	-	1	Enquire
035	26NA376SP	0.5MM PAB COVER SHIM HINGE - SIDE	26NA376SP 0.5MM PAB COVER SHIM HINGE - SIDE Row ID: ID__26NA376SP_ContPgHS;	-	4	Enquire
036	26NA827SP	0.5MM PAB COVER SHIM NONE - HINGE SIDE	26NA827SP 0.5MM PAB COVER SHIM NONE - HINGE SIDE Row ID: ID__26NA827SP_ContPgHS;	-	4	Enquire
037	26NA334SP	ASSY PAB COVER TETHER	26NA334SP ASSY PAB COVER TETHER Row ID: ID__26NA334SP_ContPgHS;	-	2	Enquire
038	26NB040SP	ASSY-BINNACLE GURNEY LH	26NB040SP ASSY-BINNACLE GURNEY LH Row ID: ID__26NB040SP_ContPgHS;	-	1	Enquire
039	26NB041SP	ASSY-BINNACLE GURNEY RH	26NB041SP ASSY-BINNACLE GURNEY RH Row ID: ID__26NB041SP_ContPgHS;	-	1	Enquire
040	26NA332SP	ASSY SIDE SWITCH FINISHER - LH	26NA332SP ASSY SIDE SWITCH FINISHER - LH Row ID: ID__26NA332SP_ContPgHS;	-	1	Enquire
041	26NA333SP	ASSY SIDE SWITCH FINISHER - RH	26NA333SP ASSY SIDE SWITCH FINISHER - RH Row ID: ID__26NA333SP_ContPgHS;	-	1	Enquire
042	26NB354SP	ASSY - FACIA LOWER FED	26NB354SP ASSY - FACIA LOWER FED Row ID: ID__26NB354SP_ContPgHS;	-	1	Enquire
042	26NB352SP	ASSY - FACIA LOWER LHD	26NB352SP ASSY - FACIA LOWER LHD Row ID: ID__26NB352SP_ContPgHS;	-	1	Enquire
042	26NB353SP	ASSY - FACIA LOWER RHD	26NB353SP ASSY - FACIA LOWER RHD Row ID: ID__26NB353SP_ContPgHS;	-	1	Enquire
043	26NA973SP	AIRBAG LOGO BLK CHROME	26NA973SP AIRBAG LOGO BLK CHROME Row ID: ID__26NA973SP_ContPgHS;	-	1	Enquire
044	26NB222SP	PAB BREAKTHROUGH BRACKET	26NB222SP PAB BREAKTHROUGH BRACKET Row ID: ID__26NB222SP_ContPgHS;	-	1	Enquire
045	26NA343SP	PAB COVER SEAL	26NA343SP PAB COVER SEAL Row ID: ID__26NA343SP_ContPgHS;	-	1	Enquire
046	11N0361CP	GASKET-FACE VENT 24	11N0361CP GASKET-FACE VENT 24 Row ID: ID__11N0361CP_ContPgHS;	$40.34	1
047	00RC077	WASHER - M6X18X1.6 - STAINLESS STEEL	00RC077 WASHER - M6X18X1.6 - STAINLESS STEEL Row ID: ID__00RC077_ContPgHS;	-	8	Enquire
048	00RA112	TORX SCREW-WASHER 4.2X16	00RA112 TORX SCREW-WASHER 4.2X16 Row ID: ID__00RA112_ContPgHS;	-	4	Enquire
049	00RA410	BOLT - BUTTON - FLANGE - M6X40	00RA410 BOLT - BUTTON - FLANGE - M6X40 Row ID: ID__00RA410_ContPgHS;	-	8	Enquire
050	00RM005	ANIXTER RIVET - BLACK	00RM005 ANIXTER RIVET - BLACK Row ID: ID__00RM005_ContPgHS;	-	4	Enquire
051	11N1873SP	FIR TREE - TRIM	11N1873SP FIR TREE - TRIM Row ID: ID__11N1873SP_ContPgHS;	-	2	Enquire
052	00RA408	BUTTON HD FLANGE - M4X8	00RA408 BUTTON HD FLANGE - M4X8 Row ID: ID__00RA408_ContPgHS;	-	2	Enquire
053	00RA011	NUT-HEX HEAD-FLANGE-M6-8	00RA011 NUT-HEX HEAD-FLANGE-M6-8 Row ID: ID__00RA011_ContPgHS;	-	3	Enquire
054	00RX001	BOLT - M5X16 - HEX	00RX001 BOLT - M5X16 - HEX Row ID: ID__00RX001_ContPgHS;	-	3	Enquire
055	00RC063	Washer - M5x20x1	00RC063 Washer - M5x20x1 Row ID: ID__00RC063_ContPgHS;	-	3	Enquire
056	26NA786SP	DUCT CONNECTOR	26NA786SP DUCT CONNECTOR Row ID: ID__26NA786SP_ContPgHS;	-	16	Enquire
057	00RA485	BOLT - HEX HEAD - FLANGED - M8X25	00RA485 BOLT - HEX HEAD - FLANGED - M8X25 Row ID: ID__00RA485_ContPgHS;	-	6	Enquire
058	00RC015	WASHER - M8X24X2	00RC015 WASHER - M8X24X2 Row ID: ID__00RC015_ContPgHS;	-	4	Enquire
059	00RA409	BOLT - FLANGE - M6X16 - BUTTON HEAD	00RA409 BOLT - FLANGE - M6X16 - BUTTON HEAD Row ID: ID__00RA409_ContPgHS;	-	8	Enquire
060	00RC048	WASHER - FORM C - 21X1.6 - M8	00RC048 WASHER - FORM C - 21X1.6 - M8 Row ID: ID__00RC048_ContPgHS;	-	2	Enquire
061	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	4	Enquire
062	00RA565	BOLT - HEX HEAD - FLANGE - M6X12	00RA565 BOLT - HEX HEAD - FLANGE - M6X12 Row ID: ID__00RA565_ContPgHS;	-	6	Enquire
063	00RC101	WASHER - TOOTHED - M4	00RC101 WASHER - TOOTHED - M4 Row ID: ID__00RC101_ContPgHS;	-	2	Enquire
064	00RA518	SCREW - LOW CAP HEAD - HEX SOCKET - M4X16	00RA518 SCREW - LOW CAP HEAD - HEX SOCKET - M4X16 Row ID: ID__00RA518_ContPgHS;	-	2	Enquire
065	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	7	Enquire
066	00RA729	BOLT - M5X0.8X16-SS-90 - HEX	00RA729 BOLT - M5X0.8X16-SS-90 - HEX Row ID: ID__00RA729_ContPgHS;	-	5	Enquire
067	00RG015	FIR TREE BUTTTON - 6MM - FTB017	00RG015 FIR TREE BUTTTON - 6MM - FTB017 Row ID: ID__00RG015_ContPgHS;	-	5	Enquire
068	00RA140	SCREW - 3X8 - TORX	00RA140 SCREW - 3X8 - TORX Row ID: ID__00RA140_ContPgHS;	-	4	Enquire
069	00RA311	Screw - M6x16 - Hex Socket	00RA311 Screw - M6x16 - Hex Socket Row ID: ID__00RA311_ContPgHS;	-	3	Enquire
070	26NA174CP	ASSY - FACIA UPR - LHD	26NA174CP ASSY - FACIA UPR - LHD Row ID: ID__26NA174CP_ContPgHS;	-	1	Enquire
070	26NA103CP	ASSY- FACIA UPR - RHD	26NA103CP ASSY- FACIA UPR - RHD Row ID: ID__26NA103CP_ContPgHS;	-	1	Enquire
072	00RA774	SCR-BTN HD-TX-FL-M5X0.8X12-SS-90-LP	00RA774 SCR-BTN HD-TX-FL-M5X0.8X12-SS-90-LP Row ID: ID__00RA774_ContPgHS;	-	6	Enquire
