12 - LIGHTS - 12.1 - FRONT LIGHTS of McLaren McLaren Ultimate Series McLaren Elva

View All

McLaren Ultimate Series McLaren Elva - 12 - LIGHTS - 12.1 - FRONT LIGHTS

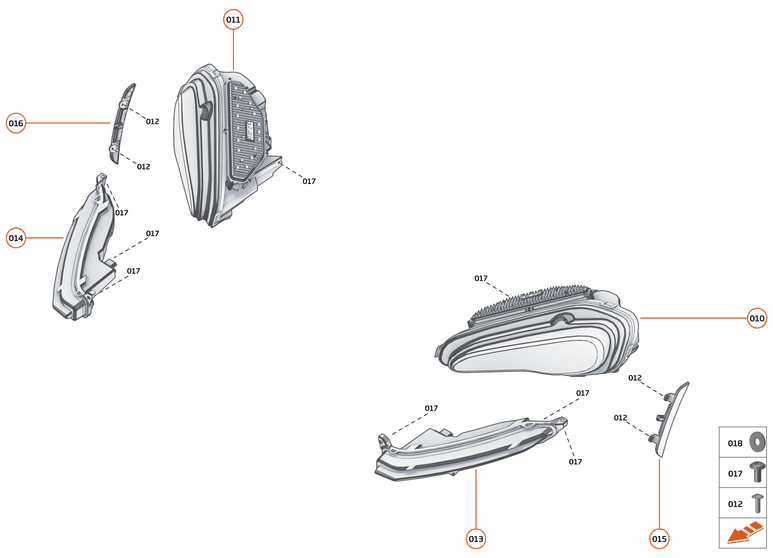

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	14AD248CP	ASSY-HEADLAMP-LH-LHD	14AD248CP ASSY-HEADLAMP-LH-LHD Row ID: ID__14AD248CP_ContPgHS;	-	1	Enquire
010	14AD252CP	ASSY-HEADLAMP-US-LH	14AD252CP ASSY-HEADLAMP-US-LH Row ID: ID__14AD252CP_ContPgHS;	-	1	Enquire
010	14AD250CP	ASSY HEADLAMP-LH-RHD	14AD250CP ASSY HEADLAMP-LH-RHD Row ID: ID__14AD250CP_ContPgHS;	-	1	Enquire
011	14AD249CP	ASSY-HEADLAMP-RH-LHD	14AD249CP ASSY-HEADLAMP-RH-LHD Row ID: ID__14AD249CP_ContPgHS;	-	1	Enquire
011	14AD251CP	ASSY HEADLAMP-RH-RHD	14AD251CP ASSY HEADLAMP-RH-RHD Row ID: ID__14AD251CP_ContPgHS;	-	1	Enquire
011	14AD253CP	ASSY-HEADLAMP-US-RH	14AD253CP ASSY-HEADLAMP-US-RH Row ID: ID__14AD253CP_ContPgHS;	-	1	Enquire
012	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12 - BLACK Row ID: ID__00RA468_ContPgHS;	-	4	Enquire
013	16AD680CP	ASSY SIGNAL LAMP LH	16AD680CP ASSY SIGNAL LAMP LH Row ID: ID__16AD680CP_ContPgHS;	-	1	Enquire
013	16AD682CP	ASSY SIGNAL LAMP US LH	16AD682CP ASSY SIGNAL LAMP US LH Row ID: ID__16AD682CP_ContPgHS;	-	1	Enquire
014	16AD681CP	ASSY SIGNAL LAMP RH	16AD681CP ASSY SIGNAL LAMP RH Row ID: ID__16AD681CP_ContPgHS;	-	1	Enquire
014	16AD683CP	ASSY SIGNAL LAMP US RH	16AD683CP ASSY SIGNAL LAMP US RH Row ID: ID__16AD683CP_ContPgHS;	-	1	Enquire
015	22AA988GP	ASSY-SIDEMARKER FR-LH-US	22AA988GP ASSY-SIDEMARKER FR-LH-US Row ID: ID__22AA988GP_ContPgHS;	-	1	Enquire
015	22AA990GP	ASSY-SIDE REPEATER-FR-LH	22AA990GP ASSY-SIDE REPEATER-FR-LH Row ID: ID__22AA990GP_ContPgHS;	-	1	Enquire
016	22AA989GP	ASSY-SIDEMARKER-FR-RH-US	22AA989GP ASSY-SIDEMARKER-FR-RH-US Row ID: ID__22AA989GP_ContPgHS;	-	1	Enquire
016	22AA991GP	ASSY-SIDE REPEATER-FR-RH	22AA991GP ASSY-SIDE REPEATER-FR-RH Row ID: ID__22AA991GP_ContPgHS;	-	1	Enquire
017	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS;	-	8	Enquire
018	00RC008	WASHER - M6X12.5X0.9	00RC008 WASHER - M6X12.5X0.9 Row ID: ID__00RC008_ContPgHS;	-	1	Enquire
