10 - Closures Ancillaries - 10.5 - Tailgate/Engine Cover Hardware

McLaren Ultimate Series McLaren Elva

Find Your Part

McLaren Ultimate Series McLaren Elva - 10 - CLOSURES ANCILLARIES - 10.5 - TAILGATE/ENGINE COVER HARDWARE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

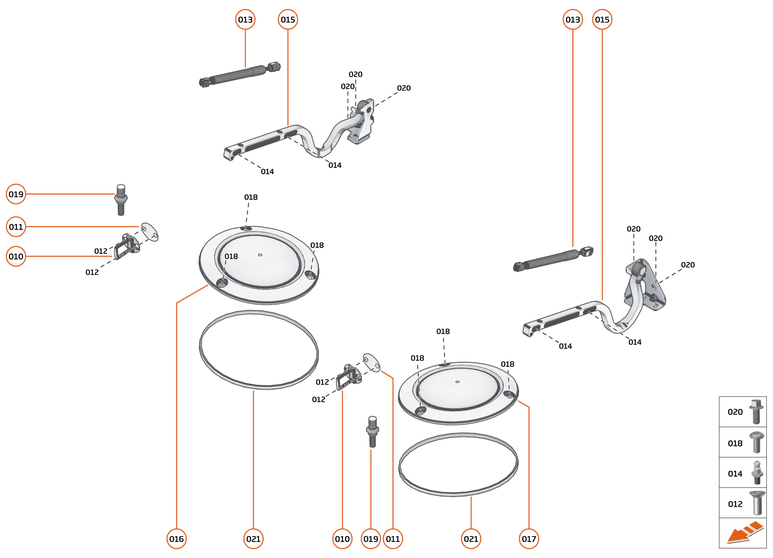

10 - CLOSURES ANCILLARIES - 10.5 - TAILGATE/ENGINE COVER HARDWARE of McLaren McLaren Ultimate Series McLaren Elva Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 26AB622SP
TONNEAU HINGE SHIM 0.5MM BLACK
Row ID: ID__26AB622SP_ContPgHS; 		- 5 Enquire
010 14AC217CP
DOOR STRIKER
Row ID: ID__14AC217CP_ContPgHS; 		- 2 Enquire
011 13AA994CP
DOOR STRIKER - SHIM - 1MM
Row ID: ID__13AA994CP_ContPgHS; 		- 2 Enquire
012 00RA747
SCREW - CSK-TX - M8X1.25X20-10.9
Row ID: ID__00RA747_ContPgHS; 		- 4 Enquire
013 26AA856SP
GAS STRUT TONNEAU
Row ID: ID__26AA856SP_ContPgHS; 		- 1 Enquire
014 11A3663CP
BALL STUD - LUGGAGE COMPARTMENT LID - ENGINE COVER - STRUT
Row ID: ID__11A3663CP_ContPgHS; 		- 4 Enquire
015 26AB797SP
ASSY TONNEAU HINGE
Row ID: ID__26AB797SP_ContPgHS; 		- 2 Enquire
016 26AC015SP
ASSY RH AIR FILTER COVER
Row ID: ID__26AC015SP_ContPgHS; 		- 1 Enquire
017 26AB515SP
ASSY LH AIR FILTER COVER
Row ID: ID__26AB515SP_ContPgHS; 		- 1 Enquire
018 00RA409
BOLT - FLANGE - M6X16 - BUTTON HEAD
Row ID: ID__00RA409_ContPgHS; 		- 6 Enquire
019 12A3032CP
BUMPSTOP - LUGGAGE COMPARTMENT LID
Row ID: ID__12A3032CP_ContPgHS; 		- 2 Enquire
020 00RA083
SCREW - M6X20 - FLANGE HEX
Row ID: ID__00RA083_ContPgHS; 		- 6 Enquire
021 26AB975SP
AIR FILTER COVER SEAL
Row ID: ID__26AB975SP_ContPgHS; 		- 2 Enquire
