42 - INFOTAINMENT - 42.1 - SOUND SYSTEM of McLaren McLaren Ultimate Series McLaren Speedtail

View All

McLaren Ultimate Series McLaren Speedtail - 42 - INFOTAINMENT - 42.1 - SOUND SYSTEM

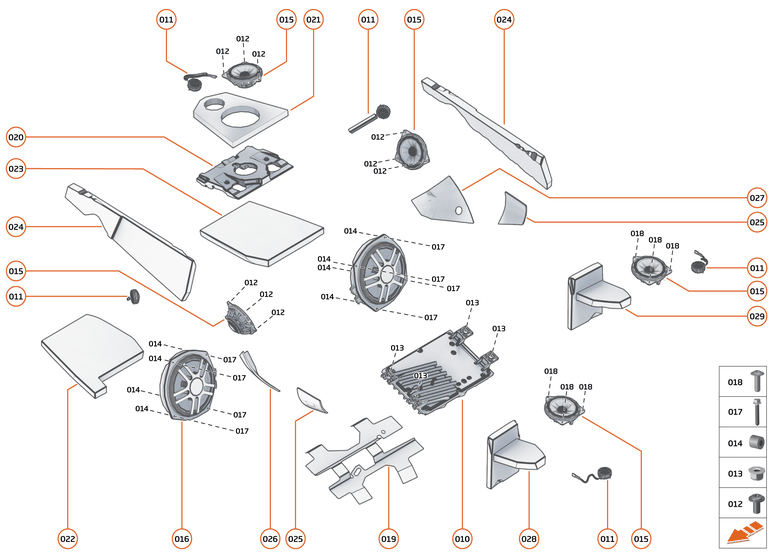

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
010	23MA139CP	AUDIO AMPLIFIER 20CH	23MA139CP AUDIO AMPLIFIER 20CH Row ID: ID__23MA139CP_ContPgHS;	-	1	Enquire
011	23MA334CP	TWEETER 25MM DIAMOND DOME-HIGH	23MA334CP TWEETER 25MM DIAMOND DOME-HIGH Row ID: ID__23MA334CP_ContPgHS;	-	5	Enquire
012	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	9	Enquire
013	00RA075	NUT - M8-8 - HEX	00RA075 NUT - M8-8 - HEX Row ID: ID__00RA075_ContPgHS;	-	4	Enquire
014	00RC128	SPCR-RND-PLN-M5X10X12-NYL-00	00RC128 SPCR-RND-PLN-M5X10X12-NYL-00 Row ID: ID__00RC128_ContPgHS;	-	8	Enquire
015	16MA465CP	100MM TRANSDUCER-HIGH	16MA465CP 100MM TRANSDUCER-HIGH Row ID: ID__16MA465CP_ContPgHS;	-	5	Enquire
016	13M1024CP	SPEAKER - 200MM - HIGH-LINE	13M1024CP SPEAKER - 200MM - HIGH-LINE Row ID: ID__13M1024CP_ContPgHS;	-	2	Enquire
017	00RA235	BOLT - M5X35 - FLANGED - 8.8	00RA235 BOLT - M5X35 - FLANGED - 8.8 Row ID: ID__00RA235_ContPgHS;	-	8	Enquire
018	00RA492	SCREW - M4X12-8.8-84 - BUTTON HEAD TORX	00RA492 SCREW - M4X12-8.8-84 - BUTTON HEAD TORX Row ID: ID__00RA492_ContPgHS;	-	6	Enquire
019	23MA452CP	AUDIO AMP BRACKET	23MA452CP AUDIO AMP BRACKET Row ID: ID__23MA452CP_ContPgHS;	-	1	Enquire
020	23MA384CP	SOUND ABSORPTION FOAM FACIA	23MA384CP SOUND ABSORPTION FOAM FACIA Row ID: ID__23MA384CP_ContPgHS;	-	1	Enquire
021	23MA386CP	SOUND CONTROL FOAM FACIA	23MA386CP SOUND CONTROL FOAM FACIA Row ID: ID__23MA386CP_ContPgHS;	-	1	Enquire
022	23MA388CP	SOUND ABSORPTION FOAM WOOFER L	23MA388CP SOUND ABSORPTION FOAM WOOFER L Row ID: ID__23MA388CP_ContPgHS;	-	1	Enquire
023	23MA423CP	SOUND ABSORPTION FOAM WOOFER R	23MA423CP SOUND ABSORPTION FOAM WOOFER R Row ID: ID__23MA423CP_ContPgHS;	-	1	Enquire
024	23MA391CP	SOUND ABSORPTION FOAM DOOR	23MA391CP SOUND ABSORPTION FOAM DOOR Row ID: ID__23MA391CP_ContPgHS;	-	2	Enquire
025	23MA394CP	SOUND CONTROL FOAM DOOR1	23MA394CP SOUND CONTROL FOAM DOOR1 Row ID: ID__23MA394CP_ContPgHS;	-	2	Enquire
026	23MA433CP	SOUND CONTROL FOAM DOOR2 LH	23MA433CP SOUND CONTROL FOAM DOOR2 LH Row ID: ID__23MA433CP_ContPgHS;	-	1	Enquire
027	23MA434CP	SOUND CONTROL FOAM DOOR2 RH	23MA434CP SOUND CONTROL FOAM DOOR2 RH Row ID: ID__23MA434CP_ContPgHS;	-	1	Enquire
028	23MA397CP	SOUND ABSORPTION FOAM REAR QTR	23MA397CP SOUND ABSORPTION FOAM REAR QTR Row ID: ID__23MA397CP_ContPgHS;	-	1	Enquire
029	23MA418CP	SOUND ABSORPTION FOAM REAR QTR	23MA418CP SOUND ABSORPTION FOAM REAR QTR Row ID: ID__23MA418CP_ContPgHS;	-	1	Enquire
